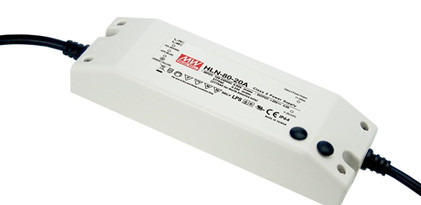

HLN-80H-20
29.37
Details
Meanwell HLN-80H-20 is 80W Single Output Switching Power Supply with 20V12-20V4A80W150mVp-p17-22V. The model has wide input voltage range of 90~305VAC, which is used in general 115VAC or 230VAC areas, but also suitable for 277VAC power systems in North America. Meanwhile, the built-in two-stage active PFC function fits the requirements of EN61000-3-2 Class C (under 60% load) for EU harmonic interference limit for lighting products, and PF>0.9 limit above 60% load. HLN-80H-20 is able to withstand industrial-grade instantaneous lightning surge 4KV (EN61000-4-5). With the efficiency reaching high up to 91%, the power supply can only use natural air cooling heat dissipation to operate at -40℃~+50℃. In addition, built-in standard functions include short circuit, overload, over voltage, and over temperature, and the item is also certified with UL/CUL/TUV/CB/CE and other international certifications including UL8750, EN61347-2-13. In light of its longevity, high efficiency, and excellent quality, Meanwell HLN-80H-20 is ideally suitable for LED indoor lighting, LED electronic billboards, LED decorative power supplies, LED stage lights, etc.
Meanwell HLN-80H-20 Specifications
| Model | HLN-80H-20□ | |
| OUTPUT | DC VOLTAGE | 20V |
| CONSTANT CURRENT REGION | 12-20V | |
| RATED CURRENT | 4A | |
| RATED POWER | 80W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 17-22V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer A type only | |
| 2.4-4A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP TIME | 1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load | |
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 0.85A/115VAC 0.425A/230VAC 0.4A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 23-30V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004,GB19510.1,GB19510.14 approved ; Design refer to UL60950-1 | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=60% load, 12V model >=65% load) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020 | |
| Others | MTBF | 2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 181*61.5*35mm (L*W*H) | |
| PACKING | 0.5Kg; 24pcs/13Kg/0.87CUFT | |
| HLN-80H-12A A: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer. B : IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance. |
||
Meanwell HLN-80H-20 Features
l 3 years warranty
l Class 2 power unit
l Universal AC input/Full range (up to 305VAC)
l Built-in active PFC function
l Cooling by free air convection
l Fully isolated plastic case with IP64 level
l Three in one dimming function (1~10Vdc or PWM signal or resistance)
l Suitable for LED lighting, Industrial Lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l Suitable for dry/damp locations or outdoor application
l Protections: Short circuit/Over current/Over voltage/Over temperature
l OCP point adjustable through output cable or internal potentiometer
Meanwell HLN-80H-20 Mechanical Diagram
