HLG-80H-20
29.68
Details

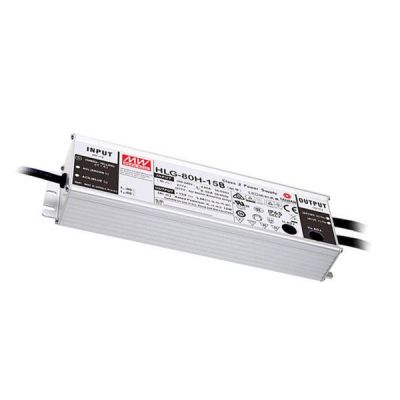

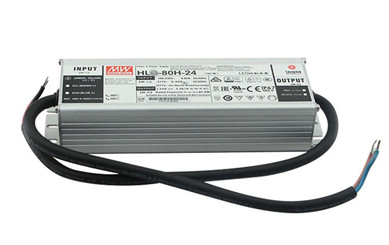

Meanwell HLG-80H-20 is a 80W AC/DC LED driver with 20V12-20V4A80W150mVp-p17-22V2.4-4A±1.0%±0.5%±1.0%. The item highlights dual mode constant voltage and constant current output, and also works from 90 ~ 305VAC. It is equipped with the rated voltage 20V. Since the efficiency reaches high up to 91% and no fan design, HLG-80H-20 is able to operate for -40℃ ~ +80℃ case temperature under free air convection. Furthermore, the metal housing design and IP67/IP65 ingress protection level allow it to meet both indoor and outdoor applications. Apart from them, the unit is supplied with various function options such as dimming methodologies. In light of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-80H-20 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-80H-20 Encoding
| HLG | Series Name |
| 80H | Rated Wattage |
| 20 | Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) | In Stock |
| BL | IP66 | B-Type with junction box. UL 8750 LISTED. Contact MEAN WELL for details | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By Request |
Meanwell HLG-80H-20 Specifications
| Model | HLG-80H-20 □ | |
| OUTPUT | DC VOLTAGE | 20V |
| CONSTANT CURRENT REGION | 12-20V | |
| RATED CURRENT | 4A | |
| RATED POWER | 80W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 17-22V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 2.4-4A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1200ms,200ms/115VAC 500ms,200ms/230VAC | |
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC /115VAC | |
| Input | VOLTAGE RANGE | 90~305VAC 12 ~431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.96/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=485μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 23-30V | |
| Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H- BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 J61347-1, J61347-2-13(except for B,AB and D-type), GB19510.1,independent, GB19510.14,EAC TP TC 004,BIS IS15885(for 36A, 54A only), IP65 or IP67,KC61347-1,KC61347-2-13(except for AB,BL-type) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%); BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV,Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2992.9K hrs min. Telcordia SR-332 (Bellcore) ; 289.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 195.6*61.5*38.8mm (L*W*H) | |
| PACKING | 0.84Kg; 16pcs/14.4Kg/0.54CUFT | |
Meanwell HLG-80H-20 Features
l Class 2 power unit
l Typical lifetime > 62000 hours
l 7 years warranty
l Metal housing with class I design
l Built-in active PFC function
l Constant Voltage and Constant Current mode output
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming
Meanwell HLG-80H-20 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-80H-20 Mechanical Diagram
