HLG-60H-C700
45.13
Details

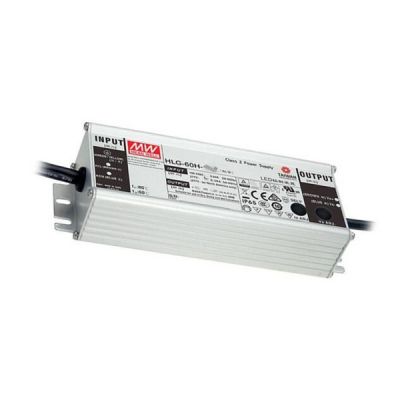

Meanwell HLG-60H-C700 is a 70W AC/DC LED driver with 700mA70W50-100W420-700mA±5%750ms/115VAC, 500ms/230VAC47~63Hz. The unit outstands constant current mode and high voltage output. Meanwhile, it can work from 90~305VAC equipped with rated current 700mA. As the efficiency reaches high up to 91%, and no fan design, HLG-60H-C700 is able to work for -40℃ ~ +80℃ case temperature under free air convection. Besides them, the metal housing design and IP67/IP65ingress protection level allow it to meet both indoor and outdoor applications. Apart from them, the model is provided with various function options such as dimming methodologies. Due to its long lifetime, high efficiency and excellent reliability, Meanwell HLG-60H-C700 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-60H-C700 Encoding
| HLG | Series Name |
| 60 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C700 | Rated output current ( 350/700mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in pote ntiometer & 3 in 1 dimming function (1 ~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending) | By request |
Meanwell HLG-60H-C700 Specifications
| Model | HLG-60H-C700□ | |
| OUTPUT | RATED CURRENT | 700mA |
| RATED POWER | 70W | |
| CONSTANT CURRENT REGION | 50-100W | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 420-700mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 750ms/115VAC, 500ms/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=60% /115VAC, 230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 90.50% | |
| AC CURRENT (Typ.) | 0.69A / 115VAC 0.35A / 230VAC 0.29A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=275 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8 units (circuit breaker of type B) / 13 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 120-140V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+80℃ | |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1,BS EN/EN 61347-2-13 independent, GB19510.1,GB19510.14,EAC TP TC 004,IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 3113.4K hrs min. Telcordia SR-332 (Bellcore) ; 336.0K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 171*61.5*36.8 mm (L*W*H) | |
| PACKING | 0.73Kg; 20pcs/15.6Kg/0.9CUFT | |
Meanwell HLG-60H-C700 Features
l 7 years warranty
l Built-in active PFC function
l Typical lifetime>62000 hours
l Constant Current mode output
l Metal housing with Class I design
l IP67 1 IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Meanwell HLG-60H-C700 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED building architectural lighting
l LED greenhouse lighting
l LED bay lighting
Meanwell HLG-60H-C700 Mechanical Diagram
