HLG-600H
119.26
Details
Meanwell HLG-600H Series is a 600W AC/DC LED driver highlighting dual mode constant voltage and constant current output. At the same time, the entire series could operate from 90 ~ 305VAC and offer models with different rated voltage ranging between 12V and 54V. Since the high efficiency reaches up to 96% under fanless design, HLG-600H is able to work for-40℃ ~ +90℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level allow them to fit both indoor and outdoor applications. Apart from them, the product is equipped with various function options such as dimming methodologies. Considering its long lifetime, high efficiency and excellent reliability, Meanwell HLG-600H Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-600H Series Encoding
| HLG | Series Name |
| 600H | Rated Wattage |
| 15 | Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (O~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance) | In Stock |
Meanwell HLG-600H Series Model Specifications
| Model | HLG-600H-12 □ | HLG-600H-15 □ | HLG-600H-20 □ | HLG-600H-24 □ | HLG-600H-30 □ | HLG-600H-36 □ | HLG-600H-42 □ | HLG-600H-48 □ | HLG-600H-54 □ | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 6-12V | 7.5-15V | 10-20V | 12-24V | 15-30V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 40A | 36A | 28A | 25A | 20A | 16.7A | 14.3A | 12.5A | 11.2A | |
| RATED POWER | 480W | 540W | 560W | 600W | 600W | 601.2A | 600.6W | 600W | 604.8W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |||||||||
| 10.2-12.6V | 12.7-15.8V | 17-21V | 20.4-25.2V | 25.5-31.5V | 30.6-37.8V | 35.7-44.1V | 40.8-50.4V | 45.9-56.7V | ||
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |||||||||
| 20-40A | 18-36A | 14-28A | 12.5-25A | 10-20A | 8.3-16.7A | 7.1-14.3A | 6.2-12.5A | 5.6-11.2A | ||
| VOLTAGE TOLERANCE | ±3.0% | ±2.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms/ 115VAC, 230VAC | |||||||||
| HOLD UP TIME (Typ.) | 15ms / 115VAC, 230VAC | |||||||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.93/277VAC at full load | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% /115VAC, 230VAC; at load>=75%/277VAC) | |||||||||
| EFFICIENCY (Typ.) (230Vac) | 92.00% | 93.50% | 94.50% | 95.00% | 95.00% | 95.50% | 96.00% | 96.00% | 96.00% | |
| EFFICIENCY (Typ.) (277Vac) | 92.50% | 93.50% | 94.50% | 95.00% | 95.00% | 95.50% | 96.00% | 96.00% | 96.00% | |
| AC CURRENT (Typ.) | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | |||||||||
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=1000μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||||||||
| STANDBY POWER CONSUMPTION | <0.5W at remote off | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 13-16V | 16.5-20.5V | 22-26V | 26-30V | 32-36.5V | 39.5-43.5V | 46-50V | 52.5-56.5V | 59-63V | |
| Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| FUNCTION | REMOTE ON/OFF CONTROL | Power on : "High" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit | ||||||||
| 5V STANDBY | 5VSB : 5Vat 0.5A ; tolerance ±5%, ripple : 100mVp-p(max.) | |||||||||
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | ||||||||
| MAX. CASE TEMP. | Tcase= +90℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB19510.1,GB19510.14, EAC TP TC 004, AS/NZS 60950.1(by CB)(AB type except ),KC61347-1, KC61347-2-13(for 24A,36A,48A,54A only) approved |
||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only) |
|||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only) |
|||||||||
| Others | MTBF | 913.4K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 280*144*48.5mm (L*W*H) | |||||||||
| PACKING | 3.9Kg; 4pcs/16.6Kg/0.9CUFT | |||||||||

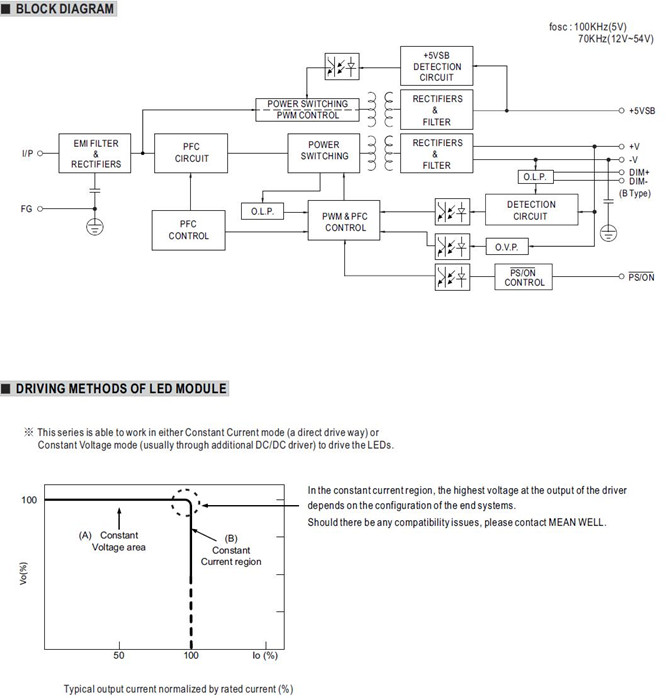

Meanwell HLG-600H Series Features
l Constant Voltage + Constant Current mode output
l Metal housing with class I design
l Standby power consumption <0.5W at remote off
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off)
l Typical lifetime > 62000 hours
l 7 years warranty
Meanwell HLG-600H Series Applications
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location

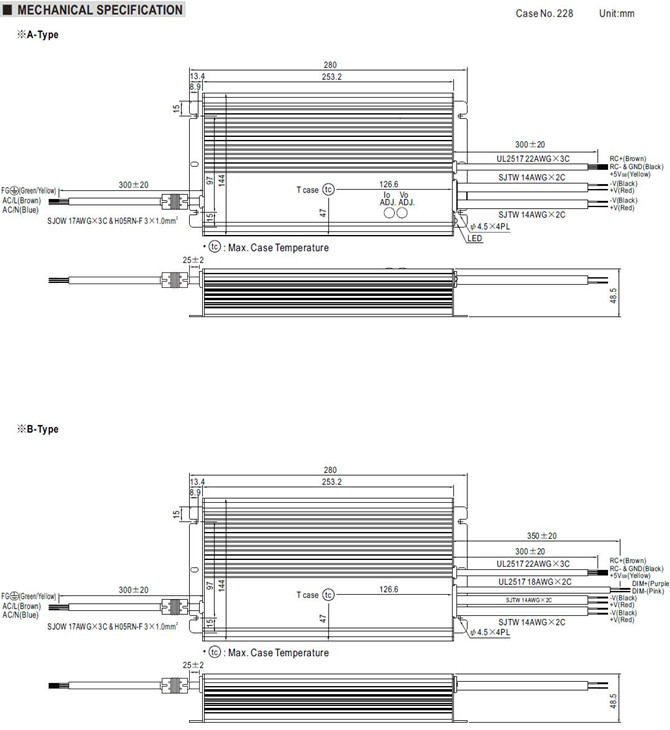

Meanwell HLG-600H Series Mechanical Diagram
