HLG-600H-36
120.81
Details

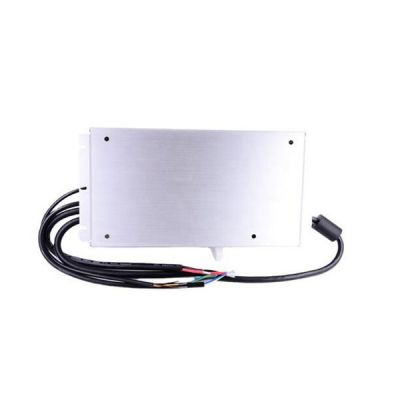

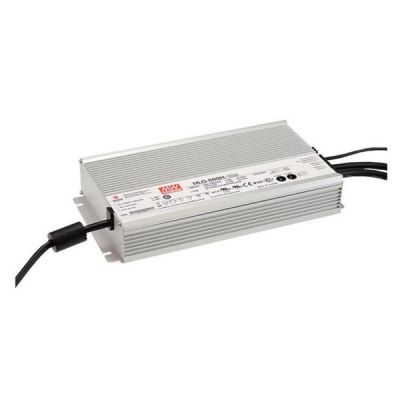

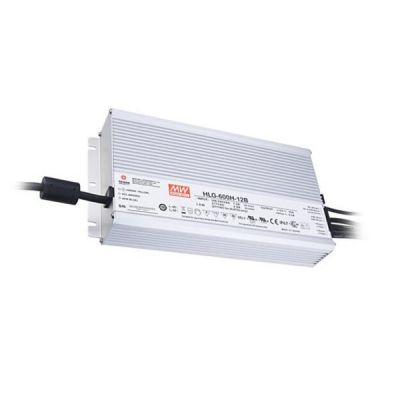

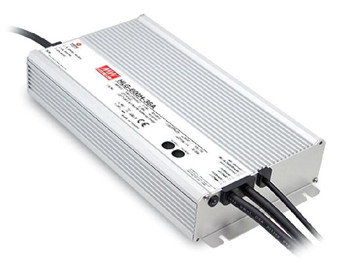

Meanwell HLG-600H-36 is a 600W AC/DC LED driver with 36V18-36V16.7A601.2A250mVp-p30.6-37.8V8.3-16.7A±1.0%±0.5%±0.5%. The model provides dual mode constant voltage and constant current output, and operate from 90 ~ 305VAC. It is equipped with rated voltage ranging 36V. As the efficiency reaches high up to 96% and no fan design, HLG-600H-36 could work for-40℃ ~ +90℃ case temperature under free air convection. Moreover, the metal housing design and IP67/IP65 ingress protection level permit it to satisfy both indoor and outdoor applications. Additionally, the product is supplied with various function options such as dimming methodologies. Because of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-600H-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-600H-36 Encoding
| HLG | Series Name |
| 600H | Rated Wattage |
| 36 | Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (O~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance) | In Stock |
Meanwell HLG-600H-36 Specifications
| Model | HLG-600H-36 □ | |
| OUTPUT | DC VOLTAGE | 36V |
| CONSTANT CURRENT REGION | 18-36V | |
| RATED CURRENT | 16.7A | |
| RATED POWER | 601.2A | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |
| 30.6-37.8V | ||
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |
| 8.3-16.7A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms/ 115VAC, 230VAC | |
| HOLD UP TIME (Typ.) | 15ms / 115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% /115VAC, 230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) (230Vac) | 95.50% | |
| EFFICIENCY (Typ.) (277Vac) | 95.50% | |
| AC CURRENT (Typ.) | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=1000μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| STANDBY POWER CONSUMPTION | <0.5W at remote off | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 39.5-43.5V | |
| Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| FUNCTION | REMOTE ON/OFF CONTROL | Power on : "High" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit |
| 5V STANDBY | 5VSB : 5Vat 0.5A ; tolerance ±5%, ripple : 100mVp-p(max.) | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase= +90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB19510.1,GB19510.14, EAC TP TC 004, AS/NZS 60950.1(by CB)(AB type except ),KC61347-1, KC61347-2-13(for 24A,36A,48A,54A only) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only) |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only) |
|
| Others | MTBF | 913.4K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 280*144*48.5mm (L*W*H) | |
| PACKING | 3.9Kg; 4pcs/16.6Kg/0.9CUFT | |
Meanwell HLG-600H-36 Features
l Metal housing with class I design
l Typical lifetime > 62000 hours
l 7 years warranty
l Constant Voltage + Constant Current mode output
l Standby power consumption <0.5W at remote off
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off)
Meanwell HLG-600H-36 Applications
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-600H-36 Mechanical Diagram
