HLG-480H-C3500
96.72
Details
Meanwell HLG-480H-C3500 is a 480W LED AC/DC driver with 3500mA480W68-137V170V1750-3500mA±5%90~305VAC127~431VDC47~63Hz. The model provides constant current mode and high voltage output. Meanwhile, it operates from 90~305V AC supplied with rated current 3500mA. Since the efficiency reaches high up to 95% under no fan design, HLG-480H-C3500 is able to work for -40C ~ +90C case temperature through free air convection. More than it, the metal housing design and IP67/IP 65 ingress protection level allow it to satisfy both indoor and outdoor applications. Additionally, the innovative environment-adaptive capability permits the unit to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Furthermore, the unit is equipped with various function options such as dimming methodologies. A s a result of its longevity, high efficiency and excellent reliability, Meanwell HLG-480H-C3500 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-480H-C3500 Encoding
| HLG | Series Name |
| 480 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C3500 | Rated output current (1400mA/1750mA/2100mA/2800mA/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. And environment adaptiveness | In stock |
| B | IP67 | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) and environment adaptiveness | In stock |
| AB | IP65 | lo adjusta ble through built-in potentiometer & 3 in 1 dimming function (O~10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. And environment adaptiveness | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. And environment adaptiveness | In Stock |
Meanwell HLG-480H-C3500 Specifications
| Model | HLG-480H-C3500 □ | |
| OUTPUT | RATED CURRENT | 3500mA |
| RATED POWER | 480W | |
| CONSTANT CURRENT REGION | 68-137V | |
| OPEN CIRCUIT VOLTAGE (max.) | 170V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 1750-3500mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 500ms/115VAC,230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.97/230VAC, PF>0.95/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=40% /115VAC, 230VAC, 277VAC) | |
| EFFICIENCY (Typ.) | 95.00% | |
| AC CURRENT (Typ.) | 5A / 115VAC 2.45A / 230VAC 2A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=1800 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 173-197V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%); BS EN/EN61000-3-3; GB17743, GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1350.9K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*125*43.8mm (L*W*H) | |
| PACKING | 2.8Kg;4pcs/12.2Kg/0.55CUFT | |
Meanwell HLG-480H-C3500 Features
l Constant Current mode output
l Typical lifetime>62000 hours
l 7 years warranty
l Metal housing with Class I design
l Built-in active PFC function
l Environment-adaptive driving capability
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design); Smart timer dimming; Low temperature light-on; Junction box
Meanwell HLG-480H-C3500 Applications
l LED Harbour
l LED greenhouse lighting
l LED statium lighting
l LED mining lighting
l Type "HL" for use in Class I , Division 2 hazardous (Classified) location

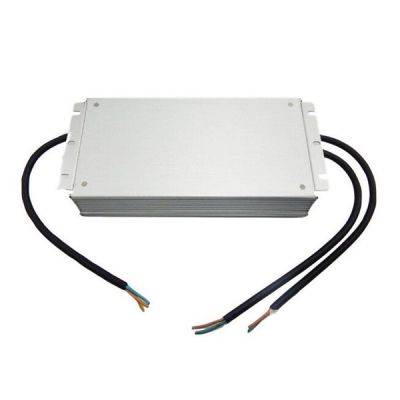

Meanwell HLG-480H-C3500 Mechanical Diagram
