HLG-480H-54
101.49
Details

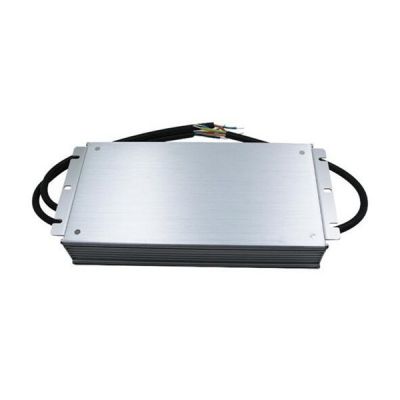

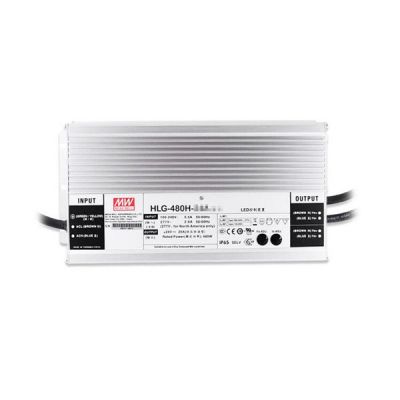

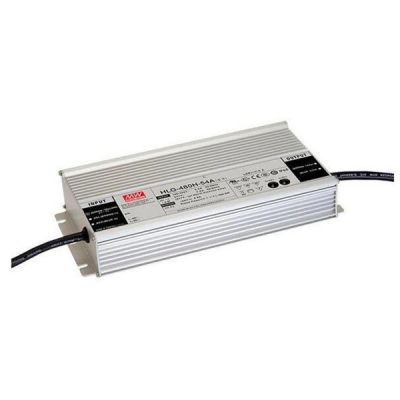

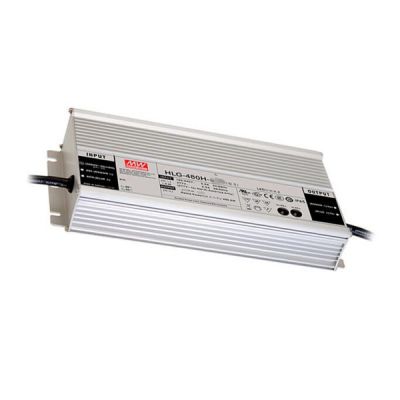

Meanwell HLG-480H-54 is a 480W AC/DC LED driver with 54V27-54V8.9A480.6W350mVp-p45.9-56.7V4.4-8.9A±1.0%±0.5%±0.5%. The model highlights dual mode constant voltage and constant current output. And it could work from 90 ~ 305VAC equipped with rated voltage ranging 54V. Since the working efficiency reaches high up to 95.5% and no fan design, Meanwell HLG-480H-54 is able to work for -40℃ ~ +90℃ case temperature under free air convection. Besides them, the metal housing design and IP67/IP65 ingress protection level allow it to meet both indoor and outdoor applications. Apart from them, the unit is supplied with various function options such as dimming methodologies. Because of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-480H-54 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-480H-54 Encoding
| HLG | Series Name |
| 480H | Rated Wattage |
| 54 | Rate output voltage (24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (O~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HLG-480H-54 Specifications
| Model | HLG-480H-54 □ | |
| OUTPUT | DC VOLTAGE | 54V |
| CONSTANT CURRENT REGION | 27-54V | |
| RATED CURRENT | 8.9A | |
| RATED POWER | 480.6W | |
| RIPPLE & NOISE (max.) | 350mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 45.9-56.7V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 4.4-8.9A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms 115VAC/230VAC | |
| HOLD UP TIME (Typ.) | 16ms 115VAC/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.97/230VAC, PF>=0.95/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=40% / 115VAC,230VAC,277VAC) | |
| EFFICIENCY (Typ.) (230Vac) | 95.00% | |
| EFFICIENCY (Typ.) (277Vac) | 95.00% | |
| AC CURRENT (Typ.) | 5A / 115VAC 2.45A / 230VAC 2A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A(twidth=1800 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2unit(circuit breaker of type B) / 3units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 60-70V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase= +90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx,D2-type), J61347-1(H29), J61347-2-13(H29)(for Blank/A-type) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3;GB17743, GB17625.1, EAC TP TC 020;KC KN15,KN61547(except for AB,Dx,D2-type),J55015(H29)(for Blank/A-type) |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020;KC KN15,KN61547(except for AB,Dx,D2-type),J55015(H29)(for Blank/A-type) |
|
| Others | MTBF | 1185.9K hrs min. Telcordia SR-332(Bellcore) ; 95.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*125*43.8mm (L*W*H) | |
| PACKING | 2.8Kg;4pcs/12.2Kg/0.55CUFT | |
Meanwell HLG-480H-54 Features
l Typical lifetime > 62000 hours
l 7 years warranty
l Metal housing with class I design
l Built-in active PFC function
l Constant Voltage + Constant Current mode output
l IP67 / IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off, isolated design) ; smart timer dimming; junction box
Meanwell HLG-480H-54 Applications
l LED Harbour
l LED greenhouse lighting
l LED statium lighting
l LED mining lighting
l Type "HL"for use in Class I, Division 2 hazardous (Classified) location
Meanwell HLG-480H-54 Mechanical Diagram
