HLG-40H-20
40.68
Details

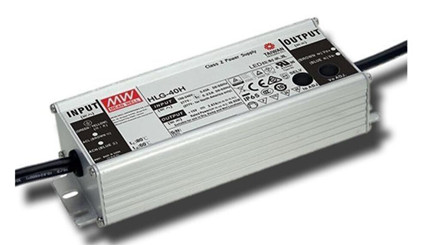

Meanwell HLG-40H-20 is a 40W AC/DC L ED driver with 20V12-20V2A40W150mVp-p17-22V1.2-2A±1.0%±0.5%±1.0%. The unit highlights the dual mode constant voltage and constant current output. It also operates from 90 ~ 305 VAC and equipped with the rated voltage 20V. Since the efficiency reaches high up to 89.5% and no fan design, HLG-40H-20 is able to work for -40℃ ~ +80℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level combined make it possible to fit both indoor and outdoor applications. Furthermore, the model is supplied with various function options such as dimming methodologies. In light of its longevity, high efficiency and excellent reliability, Meanwell HLG-40H-20 serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-40H-20 Encoding
| HLG | Series Name |
| 40H | Rated Wattage |
| 20 | Rate output voltage (12V/15V/20V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By Request |
Meanwell HLG-40H-20 Specifications
| Model | HLG-40H-20 □ | |
| OUTPUT | DC VOLTAGE | 20V |
| CONSTANT CURRENT REGION | 12-20V | |
| RATED CURRENT | 2A | |
| RATED POWER | 40W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 17-22V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 1.2-2A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 500ms,80ms/115VAC 500ms,80ms/230VAC | |
| HOLD UP TIME (Typ.) | 16ms / 115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC) | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=210 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 23-30V | |
| Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent , GB19510.1,GB19510.14,EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB-type), IP65 or IP67 approved ; J61347-1,J61347-2-13 (except for B,AB and D-type) ; design refer to BS EN/EN60335-1(by request) |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 171*61.5*36.8mm (L*W*H) | |
| PACKING | 0.73Kg; 20pcs/15.6Kg/0.9CUFT | |
Meanwell HLG-40H-20 Features
l Class 2 power unit
l 7 years warranty
l Built-in active PFC function
l Typical lifetime > 62000 hours
l Metal housing with class I design
l IP67/IP65 rating for indoor or outdoor installations
l Constant Voltage and Constant Current mode output
l Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming
Meanwell HLG-40H-20 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I, Division 2 hazardous (Classified) location

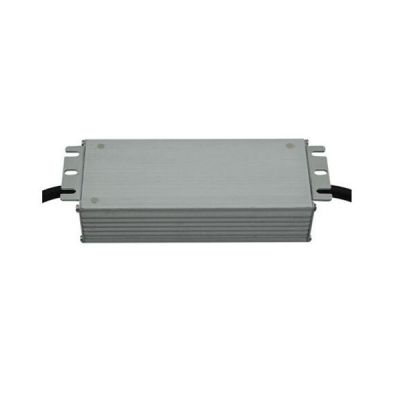

Meanwell HLG-40H-20 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
