HLG-320H-C1750
55.94
Details

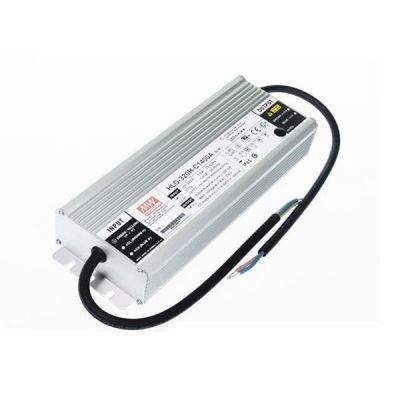

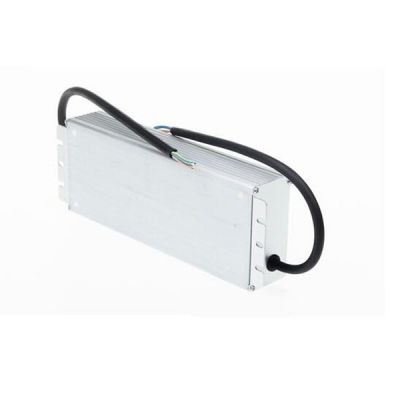

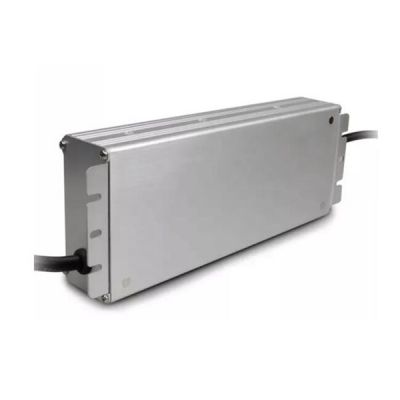

Meanwell HLG-320H-C1750 is a 320W LED AC/DC LED driver with 1750mA320.25W91-183V187V875-1750mA±5%90~305VAC 127~417VDC47~63Hz. It highlights constant current mode and high voltage output. At the same time, the item is able to work from 90~ 305VAC, and provide the model with rated current 1750mA. Since the efficiency goes high up to 94% under no fan design, HLG-320H-C1750 could operate for -40℃ ~ +85℃ case temperature under free air convection. In addition, the metal housing design and IP67/IP65 ingress protection level allow it to meet both indoor and outdoor applications. Moreover, the item is equipped with various function options such as dimming methodologies. As a result of its longevity, high efficiency and excellent reliability, Meanwell HLG-320H-C1750 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-320H-C1750 Encoding
| HLG | Series Name |
| 320 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C1750 | Rated output current (700mA/1050mA/1400mA/2100mA/2800mA/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance ) | In stock |
| DA | IP67 | DALI control technology | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In Stock |
Meanwell HLG-320H-C1750 Specifications
| Model | HLG-320H-C1750 □ | |
| OUTPUT | RATED CURRENT | 1750mA |
| RATED POWER | 320.25W | |
| CONSTANT CURRENT REGION | 91-183V | |
| OPEN CIRCUIT VOLTAGE (max.) | 187V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 875-1750mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 1000ms/115VAC, or 500ms/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127~417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% /115VAC, 230VAC; at load>=70%/277VAC) | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=1200 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 192-211V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB19510.1,GB19510.14,EAC TP TC 004, IP65 or IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS ENEN55015, BS EN/EN61000-3-2 Class C (at loadz 50%) ; BS EN/EN61000-3-3,GB17743 andGB1 7625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line- Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 252*90*43.8mm (L*W*H) | |
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |
Meanwell HLG-320H-C1750 Features
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 62000 hours
l 7 years warranty
l IP67 / IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming
Meanwell HLG-320H-C1750 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED bay lighting
l LED building architectural lighting LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-320H-C1750 Mechanical Diagram
