HLG-320H-C1050
55.49
Details

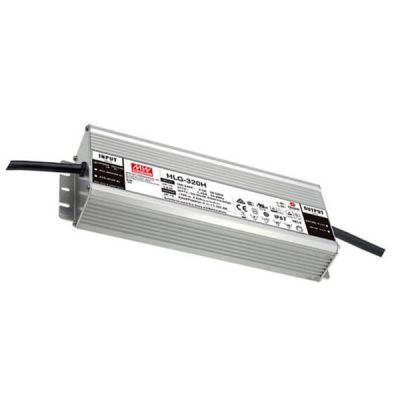

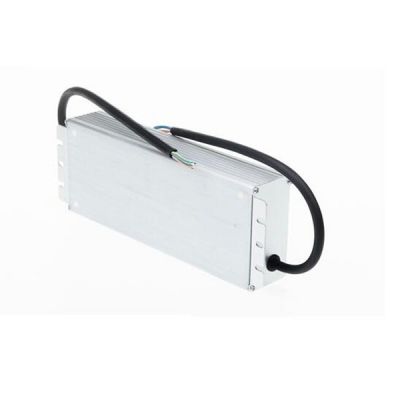

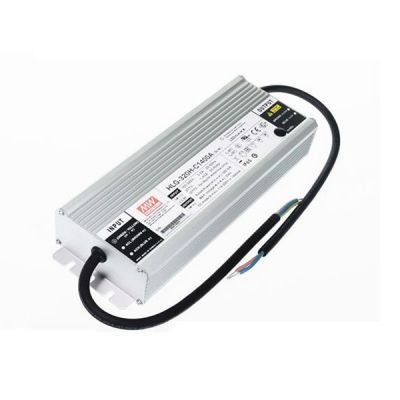

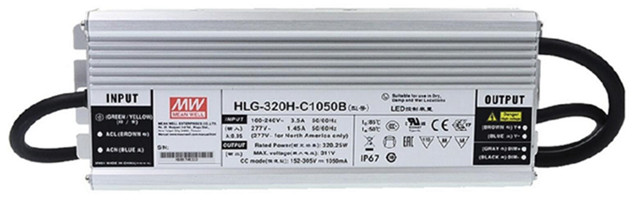

Meanwell HLG-320H-C1050 is a 320W LED AC/DC LED driver with 1050mA320.25W152-305V311V525-1050mA±5%90~305VAC127~417VDC47~63Hz. The item outstands constant current mode and high voltage output. Meanwhile, it could operate from 90~ 305VAC equipped with rated current 1050mA. As the efficiency reaches high up to 94% under fanless design, HLG-320H-C1050 is able to work for -40℃ ~ +85℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP65 ingress protection level allow it to fit both indoor and outdoor applications. What’s more, the model is equipped with various function options such as dimming methodologies. Thanks to its longevity, high efficiency and excellent reliability, Meanwell HLG-320H-C1050 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-320H-C1050 Encoding
| HLG | Series Name |
| 320 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C1050 | Rated output current (700mA/1050mA/1400mA/2100mA/2800mA/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance ) | In stock |
| DA | IP67 | DALI control technology | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In Stock |
Meanwell HLG-320H-C1050 Specifications
| Model | HLG-320H-C1050 □ | |
| OUTPUT | RATED CURRENT | 1050mA |
| RATED POWER | 320.25W | |
| CONSTANT CURRENT REGION | 152-305V | |
| OPEN CIRCUIT VOLTAGE (max.) | 311V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 525-1050mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 1000ms/115VAC, or 500ms/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127~417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% /115VAC, 230VAC; at load>=70%/277VAC) | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=1200 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 320-352V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB19510.1,GB19510.14,EAC TP TC 004, IP65 or IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS ENEN55015, BS EN/EN61000-3-2 Class C (at loadz 50%) ; BS EN/EN61000-3-3,GB17743 andGB1 7625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line- Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 252*90*43.8mm (L*W*H) | |
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |
Meanwell HLG-320H-C1050 Features
l 7 years warranty
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 62000 hours
l IP67 / IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming
Meanwell HLG-320H-C1050 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED bay lighting
l LED building architectural lighting LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-320H-C1050 Mechanical Diagram
