HLG-240H-30
55.61
Details

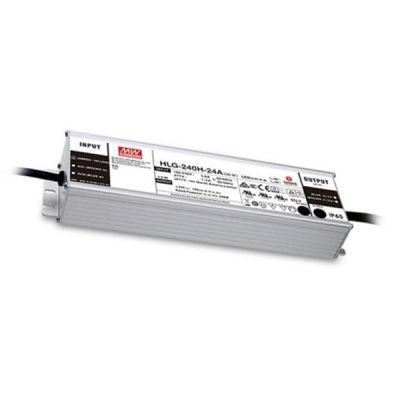

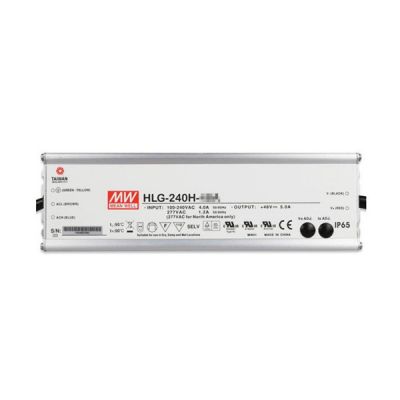

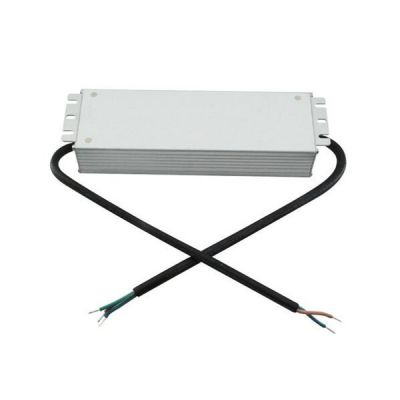

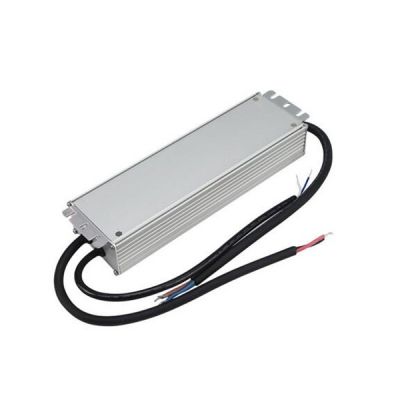

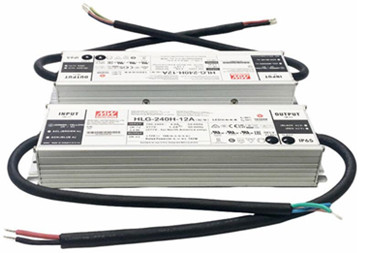

Meanwell HLG-240H-30 is a 240W AC/DC LED driver with 30V15-30V8A240W200mVp-p28-32V4-8A±1.0%±0.5%±0.5%. The unit offers dual mode constant voltage and constant current output, and operates from 90 ~ 305VAC. Meanwhile, it provides the model rated voltage 30V. Since the efficiency reaches high up to 93.5% and no fan design, HLG-240H-30 is able to work for -40℃~ +90℃ case temperature under free air convection. Besides them, the metal housing design and IP67/IP65 ingress protection level allow it to fit both indoor and outdoor applications. Apart from them, the model is supplied with various function options such as dimming methodologies. As a result of its longevity, high efficiency and excellent reliability, Meanwell HLG-240H-30 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-240H-30 Encoding
| HLG | Series Name |
| 240H | Rated Wattage |
| 30 | Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1 ~1OVDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer & 3in 1 dimming function (1~10Vdc, 10V PWM signal and resistance ) | In Stock |
| C | ---- | Terminal block for I/O connection. Output voltage and constant currentlevel can be adjusted through internal potentiometer. | By Request |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By Request |
Meanwell HLG-240H-30 Specifications
| Model | HLG-240H-30 □ | |
| OUTPUT | DC VOLTAGE | 30V |
| CONSTANT CURRENT REGION | 15-30V | |
| RATED CURRENT | 8A | |
| RATED POWER | 240W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB/C-Type only (via built-in potentiometer) | |
| 28-32V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB/C-Type only (via built-in potentiometer) | |
| 4-8A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms,80ms/115VAC 500ms,80ms/230VAC | |
| HOLD UP TIME (Typ.) | 15ms / 115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% / 115VAC,230VAC; at load>=75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section) | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT (Typ.) | 4A / 115VAC 2A / 230VAC 1.2A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=570μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 34-38V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent (except for HLG-240H C type); IEC/UL/BS EN/EN 62368-1(except for AB,D type), UL8750;GB19510.1,GB19510.14(except for C-type);IP65 or IP67;J61347-1,J61347-2-13(except for B,AB and D-type), BIS IS15885( for 48V only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB,C,D-type) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type) |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type) |
|
| Others | MTBF | 2015.1K hrs min. Telcordia SR-332 (Bellcore) ; 176.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244.2*68*38.8mm (L*W*H)(HLG-240H-Blank/A/B) 251*68*38.8mm (L*W*H)(HLG-240H C-Type) | |
| PACKING | 1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B) 1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240 C-Type) | |
Meanwell HLG-240H-30 Features
l Metal housing with class I design
l Typical lifetime > 62000 hours
l 7 years warranty
l Constant Voltage + Constant Current mode output
l IP67/1P65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming
Meanwell HLG-240H-30 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-240H-30 Mechanical Diagram
