HLG-185H-C700
38.38
Details

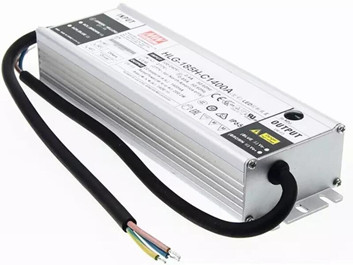

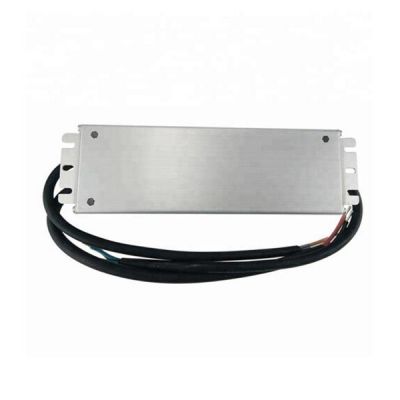

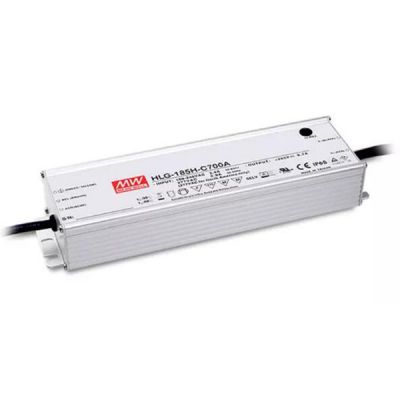

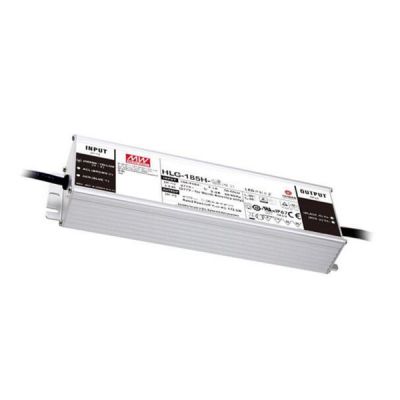

Meanwell HLG-185H-C700 is a 200W AC/DC LED power supply with 700mA200.2W143-286W350mA-700mA±5%1000ms/115VAC 500ms/230VAC. The model stands out with constant current mode and high voltage output. Meanwhile, it can work from 90~305VAC equipped with rated current 700mA. As the efficiency reaches high up to 94% under fanless design, HLG-185H-C700 is able to operate for -40℃ ~ +90℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level permit it to meet both indoor and outdoor applications. In addition, the unit is supplied with various function options such as dimming methodologies. Due to its long lifetime, high efficiency and excellent reliability, Meanwell HLG-185H-C700 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-185H-C700 Encoding
| HLG | Series Name |
| 185 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C700 | Rated output current ( 500/700mA/1050mA/1400mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in pote ntiometer & 3 in 1 dimming function (1 ~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By request |
Meanwell HLG-185H-C700 Specifications
| Model | HLG-185H-C700 □ | |
| OUTPUT | RATED CURRENT | 700mA |
| RATED POWER | 200.2W | |
| CONSTANT CURRENT REGION | 143-286W | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer (A/AB type only) | |
| 350mA-700mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 1000ms/115VAC 500ms/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC or PF>=0.96/230VAC or PF>=0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% at>=50% load/115VAC, or 230VAC, or at>=75% load/277VAC | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 2A / 115VAC 1A / 230VAC 0.85A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=900 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 320-340V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Refer to "Derating Curve") |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB19510.1,GB19510.14;IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=50% load) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 228*68*38.8mm (L*W*H) | |
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.8CUFT | |
Meanwell HLG-185H-C700 Features
l 7 years warranty
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime>62000 hours
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming
Meanwell HLG-185H-C700 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED building architectural lighting
l LED bay lighting

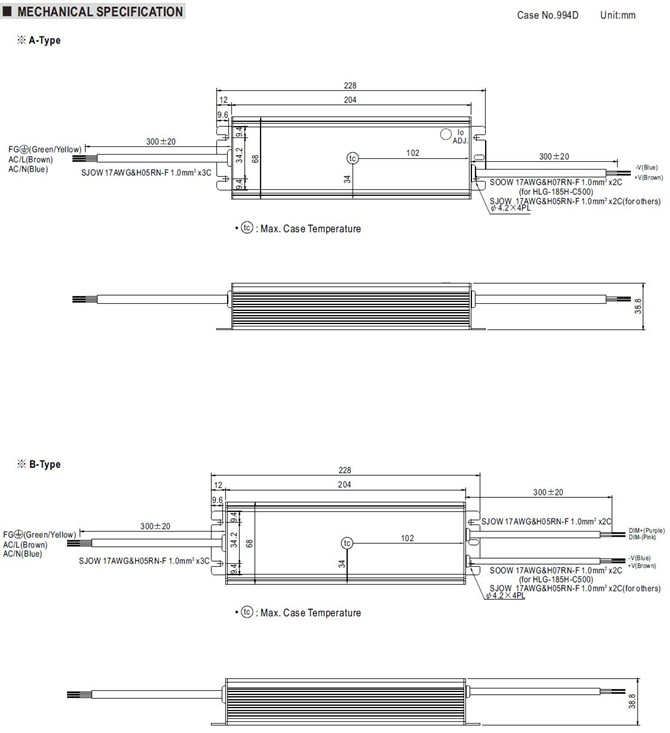

Meanwell HLG-185H-C700 Mechanical Diagram
