HLG-100H-36
43.86
Details

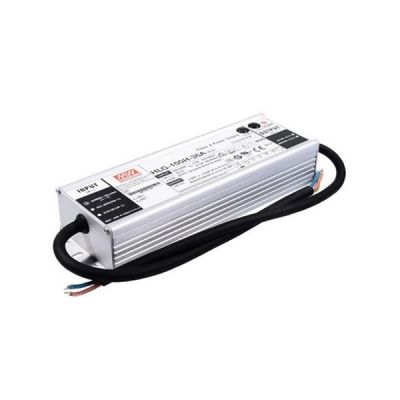

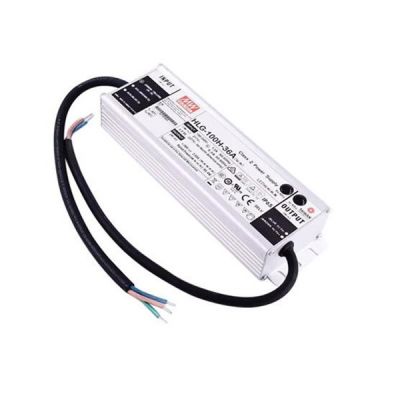

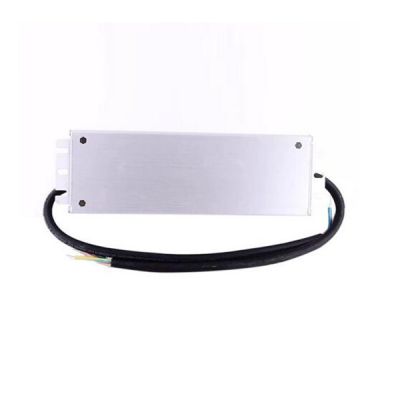

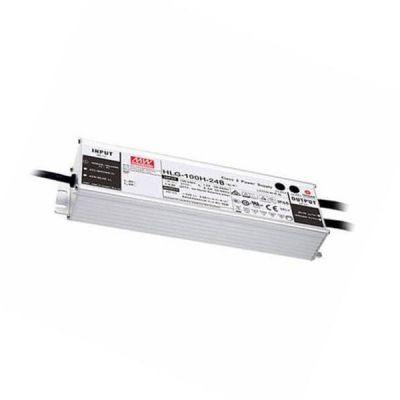

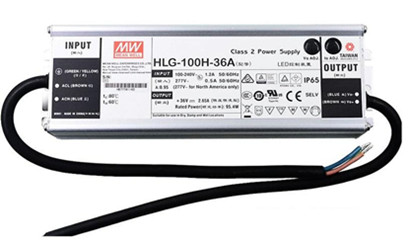

Meanwell HLG-100H-36 is a 100W AC/DC LED driver with 36V18-36V2.65A95.4W200mVp-p33-40V1.65-2.65A±1.0%±0.5%±0.5%. The model offers dual mode constant voltage and constant current output. And it works from 90 ~ 305VAC with rated voltage 36V. Since the high efficiency reaches up to 93% and no fan design, HLG-100H-36 is able to operate for -40℃ ~ +80℃ case temperature under free air convection. Besides them, the metal housing design and IP67/IP65 ingress protection level allow it to fit both indoor and outdoor applications. Apart from them, the unit is equipped with various function options such as dimming methodologies. As a result of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-100H-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-100H-36 Encoding
| HLG | Series Name |
| 100H | Rated Wattage |
| 36 | Rate output voltage (20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By Request |
Meanwell HLG-100H-36 Specifications
| Model | HLG-100H-36 □ | |
| OUTPUT | DC VOLTAGE | 36V |
| CONSTANT CURRENT REGION | 18-36V | |
| RATED CURRENT | 2.65A | |
| RATED POWER | 95.4W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 33-40V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 1.65-2.65A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1200ms,50ms/115VAC 500ms,50ms/230VAC | |
| HOLD UP TIME (Typ.) | 16ms / 115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC) | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT | 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=415μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 106% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 41-46V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1(except for AB-type), AS/NZS 61347-2-13(except for AB-type) independent; GB19510.1,GB19510.14,IP65 or IP67, J61347-1, J61347-2-13(except for B, AB and D-type), KC61347-1,KC61347-2-13(except for D-type),EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*68*38.8mm (L*W*H) | |
| PACKING | 1.12Kg; 12pcs/14.4Kg/0.8CUFT | |
Meanwell HLG-100H-36 Features
l 7 years warranty
l Class 2 power unit
l Built-in active PFC function
l Typical lifetime > 62000 hours
l Metal housing with class I design
l IP67/IP65 rating for indoor or outdoor installations
l Constant Voltage + Constant Current mode output
l Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming
Meanwell HLG-100H-36 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-100H-36 Mechanical Diagram
