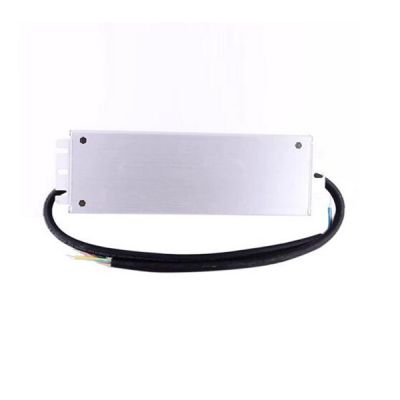

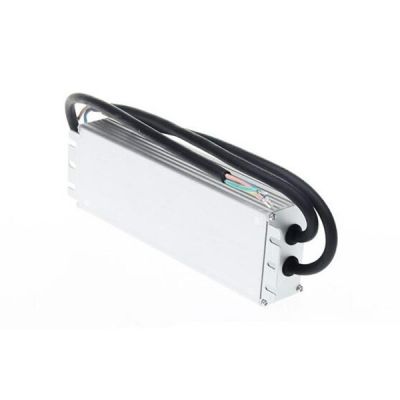

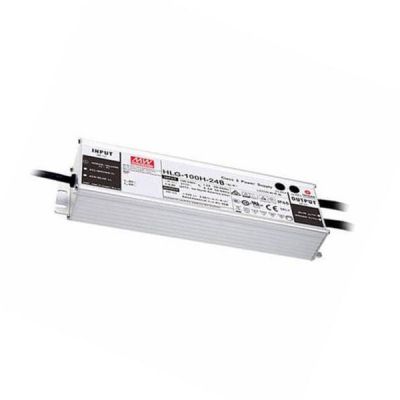

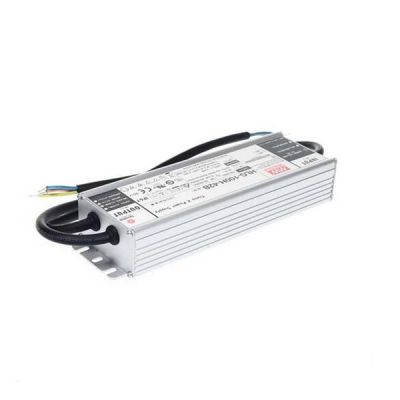

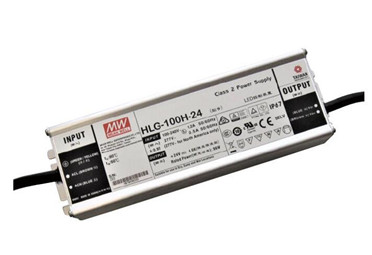

HLG-100H-24
43.15
Details
Meanwell HLG-100H-24 is a 100W AC/DC LED driver with 24V12-24V4A96W150mVp-p22-27V2.5-4A±1.0%±0.5%±0.5%. The item outstands dual mode constant voltage and constant current output, and operate from 90 ~ 305VAC. At the same time, it offers the model with rated voltage 24V. With high efficiency up to 93% and no fan design, HLG-100H-24 could work for -40℃ ~ +80℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP65 ingress protection level permit it to meet with both indoor and outdoor applications. Moreover, the unit is provided with various function options such as dimming methodologies. Thanks to its long lifetime, high efficiency and excellent reliability, Meanwell HLG-100H-24 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-100H-24 Encoding
| HLG | Series Name |
| 100H | Rated Wattage |
| 24 | Rate output voltage (20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By Request |
Meanwell HLG-100H-24 Specifications
| Model | HLG-100H-24 □ | |
| OUTPUT | DC VOLTAGE | 24V |
| CONSTANT CURRENT REGION | 12-24V | |
| RATED CURRENT | 4A | |
| RATED POWER | 96W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 22-27V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 2.5-4A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1200ms,50ms/115VAC 500ms,50ms/230VAC | |
| HOLD UP TIME (Typ.) | 16ms / 115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC) | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT | 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=415μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 106% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 28-34V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1(except for AB-type), AS/NZS 61347-2-13(except for AB-type) independent; GB19510.1,GB19510.14,IP65 or IP67, J61347-1, J61347-2-13(except for B, AB and D-type), KC61347-1,KC61347-2-13(except for D-type),EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*68*38.8mm (L*W*H) | |
| PACKING | 1.12Kg; 12pcs/14.4Kg/0.8CUFT | |
Meanwell HLG-100H-24 Features
l 7 years warranty
l Class 2 power unit
l Constant Voltage + Constant Current mode output
l Metal housing with class I design
l Built-in active PFC function
l Typical lifetime > 62000 hours
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming
Meanwell HLG-100H-24 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-100H-24 Mechanical Diagram
