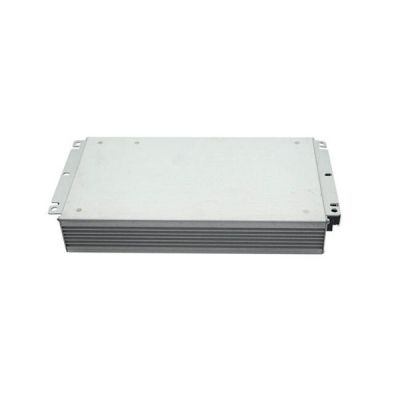

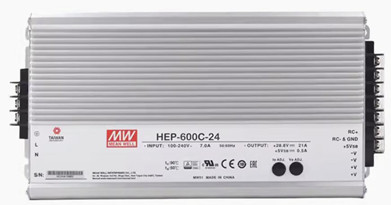

HEP-600C
209.43
Details
Meanwell HEP-600C Series is an AC-to-DC battery charger. The product provides up to 600W designed with aluminum case and fully potted by silicone. At the same time, It features high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of operating under high-vibration (10G), dusty, humid, and oily environment. In addition, the series highlights adjustable voltage/current and wide working temperature range (-40~+70C). Considering its longevity, high efficiency, and excellent quality, Meanwell HEP-600C Series offers the best safety for Harsh Environment.
Meanwell HEP-600C Series Encoding
| HEP | Series Name |
| 600 | Output Wattage |
| C | Battery Charger |
| 12 | Output Voltage |
Meanwell HEP-600C Series Model Specifications
| Model | HEP-600C-12 | HEP-600C-24 | HEP-600C-48 | |
| OUTPUT | BOOST CHARGE VOLTAGE Vboost | 14.4V | 28.8V | 57.6V |
| FLOAT CHARGE VOLTAGE Vfloat | 13.6V | 27.2V | 54.4V | |
| VOLTAGE ADJ. RANGE | 11.5-15.1V | 23-30.2V | 46.1-60.5V | |
| CURRENT ADJ. RANGE | 17.5-35A | 10.5-21A | 5.2-10.5A | |
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) | 135-400AH | 70-210AH | 35-105AH | |
| BATTERY TYPE | Open & Sealed Lead Acid | |||
| OUTPUT CURRENT | 35A | 21A | 10.5A | |
| Input | VOLTAGE RANGE | 85~264VAC(277VAC operational) 120~370VDC(390VDC operational) | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load | |||
| EFFICIENCY (Typ.) | 93.50% | 94.50% | 95.50% | |
| AC CURRENT (Typ.) | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 70A(twidth=1010 s measured at 50% Ipeak) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| PROTECTION | OVER VOLTAGE | 16.5-20.5V | 32.5-36.5V | 68-73V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||
| FUNCTION | REMOTE ON/OFF CONTROL | Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit | ||
| 5V STANDBY | 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.) | |||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 60℃) | |||
| VIBRATION | 20 ~ 500Hz, 10G 10min./1cycle, 72min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), radiation class A, conduction class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | |||
| Others | MTBF | 857.2K hrs min. Telcordia SR-332 (Bellcore) ; 73.1K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 280*144*48.5mm (L*W*H) | |||
| PACKING | 3.9Kg; 4pcs/16Kg/0.9CUFT | |||
Meanwell HEP-600C Series Features
l Charger for lead-acid batteries (flooded, Gel and AGM) andLi-ion batteries (lithium iron and lithium manganese)
l 3 stage charging
l Universal AC input/ Full range (up to 305VAC)
l Built-in active PFC function
l No load power consumption <0.5W at remote OFF
l High efficiency up to 95.5%
l Fanless design, cooling by free air convection
l Aluminum case and filling with heat-conducted glue
l Withstand 10G vibration test
l -40 ~ +70℃ wide operating range
l Output voltage and output current can be adjusted through internal potentiometer
l Protection: Short circuit/Over voltage/Over temperature
l 3 color LED loading indicator
l Operating altitude up to 5000 meters
l 6 years warranty
Meanwell HEP-600C Series Applications
l Suitable for battery charger at harsh environment
l Robotic lawn mower
l Electronic transportation vehicle
l Recreational craft, personal yacht or workboat
l Security network and system
l Telecommunication base station
l Equipment or instruments with back-up battery

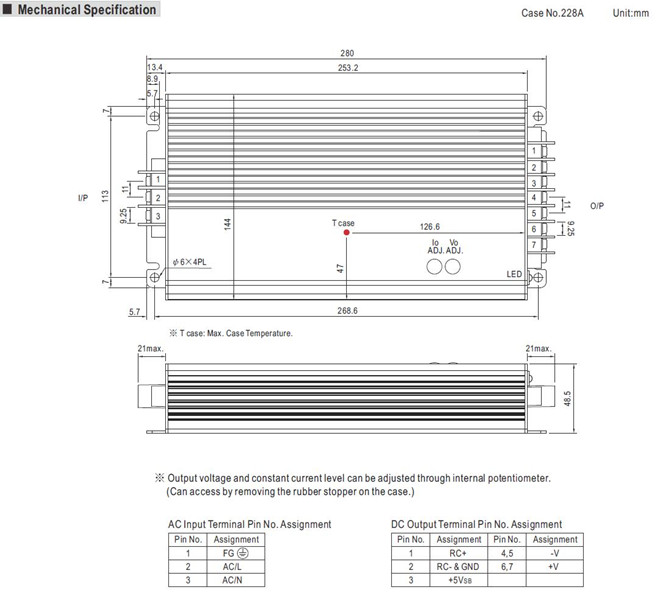

Meanwell HEP-600C Series Mechanical Diagram
