HEP-600-48
202.39
Details

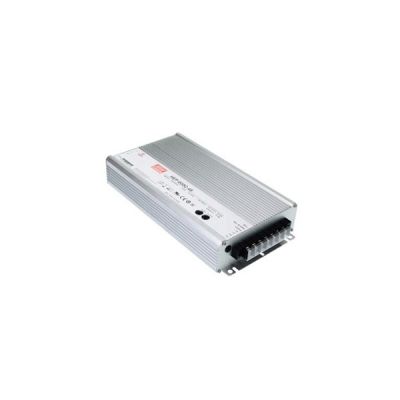

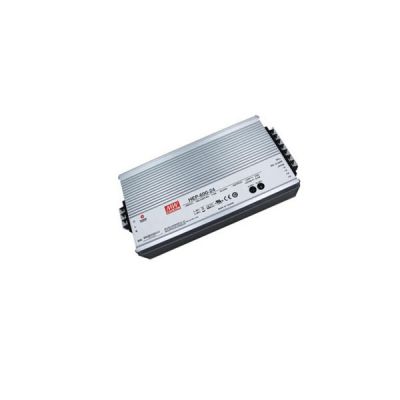

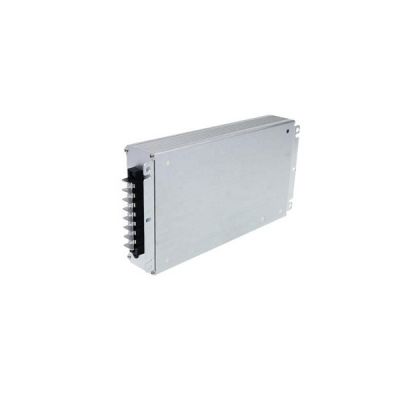

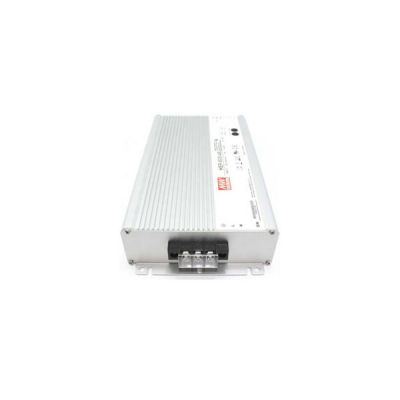

Meanwell HEP-600-48 is a 600W industrial AC/DC power supply with 48V12.5A600W250mVp-p40.8-50.4V. The model outstands the powerful performance to operate under highly humid, dusty, oily, and high-vibration harsh conditions. Apart from them, it is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to the state-of-the-art design, the working efficiency can reach up to 96%, which assures it to operate perfectly between -40℃ and +70℃ under free air convection. What’s more, HEP-600-48 Is able to withstand 10G vibration test, and Output voltage and output current can be adjusted via internalpotentiometer. At the same time, HEP-600-48 gives out the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. As a result of the high efficiency, high reliability and long longevity, Meanwell HEP-600-48 serves as a high performance solution for various industrial applications.
Meanwell HEP-600-48 Encoding
| HEP | Series Name |
| 600 | Out Wattage |
| 48 | Output Voltage |
Meanwell HEP-600-48 Specifications
| Model | HEP-600-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 12.5A | |
| RATED POWER | 600W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 40.8-50.4V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer | |
| 6.2-12.5A | ||
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms at full load 230VAC /115VAC | |
| HOLD UP TIME (Typ.) | 15ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC(277VAC operational) 120~370VDC(390VDC operational) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load | |
| EFFICIENCY (Typ.) | 96.0% | |
| AC CURRENT (Typ.) | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=1000 s measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 105 ~ 125% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 52.5-56.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| FUNCTION | REMOTE ON/OFF CONTROL | Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit |
| 5V STANDBY | 5VSB : 5V@0.5A ; tolerance±5%, ripple : 100mVp-p(max.) | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, EAC TP TC 020 | |
| OTHERS | MTBF | 76.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 280*144*48.5mm (L*W*H) | |
| PACKING | 3.9Kg; 4pcs/16Kg/0.9CUFT | |
Meanwell HEP-600-48 Features
l 6 years warranty
l Built-in active PFC function
l LED indicator for power on
l Withstand 10G vibration test
l High efficiency up to 96%
l -40℃~ +70℃ wide operating range
l Operating altitude up to 5000 meters
l Fanless design, cooling by free air convection
l Universal AC input/Full range (up to 305 VAC)
l No load power consumption <0.5W at remote OFF
l Aluminum case and filling with heat-conducted glue
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Output voltage and output current can be adjusted through internalpotentiometer
Meanwell HEP-600-48 Applications
l Outdoor telecommunication equipment
l Petroleum plant or mine shaft facility
l Outdoor electronic signage and billboard
Meanwell HEP-600-48 Mechanical Diagram
