HEP-480-24
188
Details

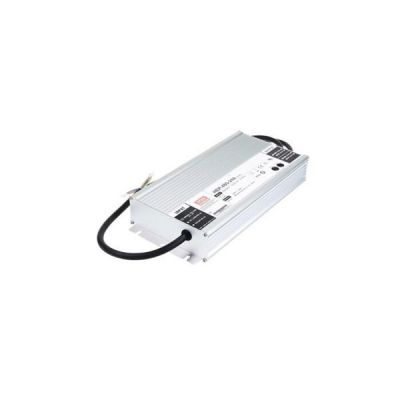

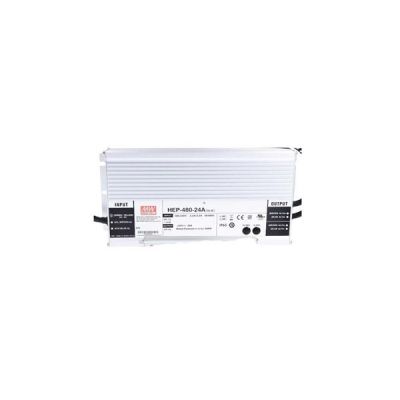

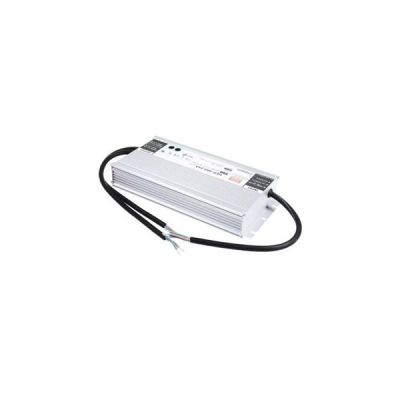

Meanwell HEP-480-24 is a 480W industrial AC/DC power supply with 24V20A480W200mVp-p. The model outstands the powerful performance to operate under highly humid, dusty, oily, and high-vibration harsh conditions. HEP-480-24 is also housed with the aluminum case and fully potted with heat-conducted silicone. As per the state-of-the-art design, the working efficiency could reach up to 95%, which assures to work perfectly between -55℃ and +65℃ under free air convection. Furthermore, HEP-480-24 Is able to meet 6KV surge immunity level and withstand 10G vibration test. At the same time, it provides the full protection functions such as Short circuit, Overload, Over voltage and Over temperature. As a result of the high efficiency, high reliability and long longevity, Meanwell HEP-480-24 is a high performance solution for various industrial applications.
Meanwell HEP-480-24 Encoding
| HEP | Series Name | |
| 480 | Output Wattage | |
| 24 | Output Voltage | |
| A | Function Mode Option | A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer. |
| Blank : Optional model, IP68, with fixed Vo and lo level. | ||
Meanwell HEP-480-24 Specifications
| Model | HEP-480-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 20A | |
| RATED POWER | 480W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjusted for A-type only (via built-in potentiometer | |
| 20.4-25.2V | ||
| CURRENT ADJ. RANGE | Adjusted for A-type only (via built-in potentiometer) | |
| 10-20A | ||
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms 115VAC/230VAC | |
| HOLD UP TIME (Typ.) | 16ms 115VAC/230VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC (277VAC operational) 120~370VDC(390VDC operational) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.97/230VAC, PF>0.95/277VAC at full load | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 5A / 115VAC 2.45A / 230VAC 2A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER LOAD | 105 ~ 125% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 27-33V | |
| Shut down output voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -55 ~ +65℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -60 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-480 Blank-Type), EAC TP TC 004 approved ;Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 89.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*125*43.8mm (L*W*H) | |
| PACKING | 2.8Kg;4pcs/11.5Kg/0.55CUFT | |
Meanwell HEP-480-24 Features
l 6 years warranty
l Built-in active PFC function
l High efficiency up to 95%
l Meet 6KV surge immunity level
l Withstand 10G vibration test
l -55℃~+65 ℃ wide operating range
l Operating altitude up to 5000 meters
l Universal AC input/Full range (up to 305VAC)
l Fanless design, cooling by free air convection
l Aluminum case and filling with heat-conducted silicone
l IP65 design, optional IP68 rated model available
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HEP-480-24 Applications
l Petroleum plant or mine shaft facility
l Outdoor telecommunication equipment
l Outdoor electronic signage and billboard
Meanwell HEP-480-24 Mechanical Diagram
