HEP-320-48
135.21
Details

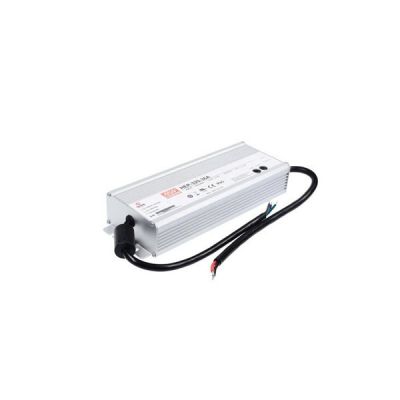

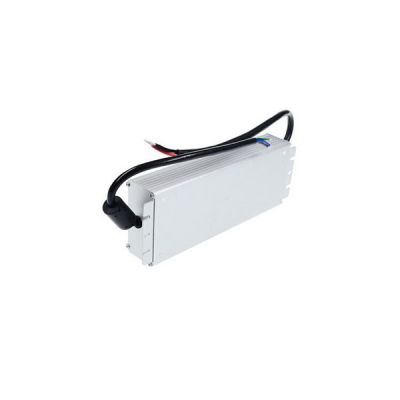

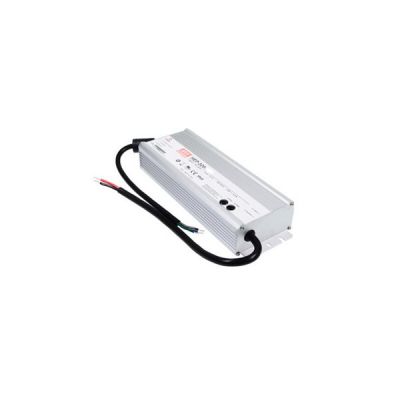

Meanwell HEP-320-48 is a 320W industrial AC/DC power supply with 48V6.7A321.6W250mVp-p43-52V3.35-6.7A. This model features the powerful capability to work under harsh conditions with high dust density, humidity, vibration and altitude. Besides them, HEP-320-48 is housed with a robust aluminum case and fully potted with heat-conducted silicone. Because of the state-of-the-art design, its working efficiency could reach up to 95%, which enables it to run perfectly between -55℃ and +70 ℃ under free air convection with no fan. Additionally, HEP-320-48 provides the full protection functions such as Short circuit, Overload, Over voltage and Over temperature. As a result of the high efficiency, high reliability and long longevity, Meanwell HEP-320-48 is a high performance solution for various industrial applications.
Meanwell HEP-320-48 Encoding
| HEP | Series Name | |
| 320 | Output Wattage | |
| 48 | Output Voltage | |
| A | Function Mode Option | A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer. |
| Blank : Optional model, IP68, with fixed Vo and lo level. | ||
Meanwell HEP-320-48 Specifications
| Model | HEP-320-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 6.7A | |
| RATED POWER | 321.6W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 43-52V | |
| CURRENT ADJ. RANGE | 3.35-6.7A | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 2500ms,80ms/115VAC 500ms,80ms/230VAC at full load | |
| HOLD UP TIME (Typ.) | 15ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC (277VAC operational) 120~370VDC(390VDC operational |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load | |
| EFFICIENCY (Typ.) | 94.5% | |
| AC CURRENT (Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER LOAD | 105 ~ 125% |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 53.5-60V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -55 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -60 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 154.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 252*90*43.8mm (L*W*H) | |
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |
Meanwell HEP-320-48 Features
l 6 years warranty
l High efficiency up to 95%
l Built-in active PFC function
l Withstand 10G vibration test
l Meet 6KV surge immunity level
l -55℃~+70℃ wide operating range
l Operating altitude up to 5000 meters
l Fanless design, cooling by free air convection
l IP65 design, optional IP68 rated model available
l Universal AC input/Full range (up to 305 VAC)
l Aluminum case and filling with heat-conducted silicone
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HEP-320-48 Applications
l Petroleum plant or mine shaft facility
l Outdoor telecommunication equipment
l Outdoor electronic signage and billboard
Meanwell HEP-320-48 Mechanical Diagram
