HEP-320-12
125.12
Details

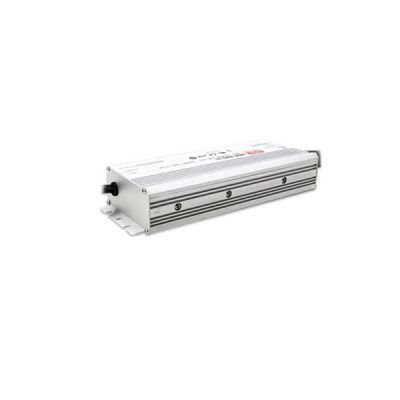

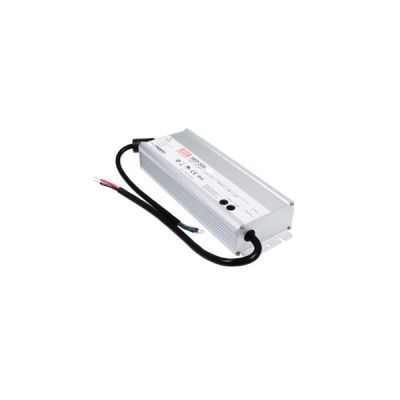

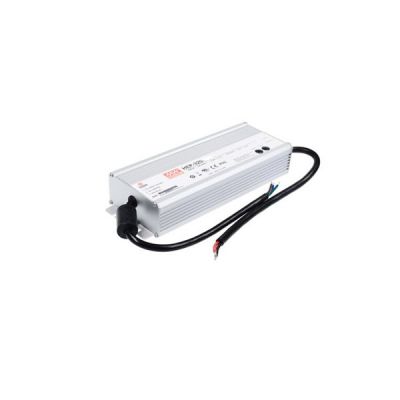

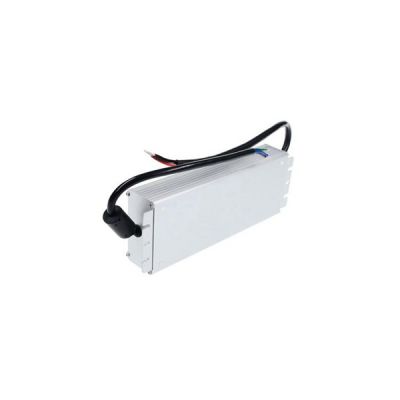

Meanwell HEP-320-12 is a 320W industrial AC/DC power supply with 12V22A264W150mVp-p10.8-13.5V11-22A. this model features the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. In addition, HEP-320-12 is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to the state-of-the-art design, the working efficiency can reach up to 95%, which enables it to work perfectly between -55℃ and +70 ℃ under free air convection with no fan. Furthermore, It provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In light of the high efficiency, high reliability and long longevity, Meanwell HEP-320-12 serves as a high performance solution for various industrial applications.
Meanwell HEP-320-12 Encoding
| HEP | Series Name | |
| 320 | Output Wattage | |
| 12 | Output Voltage | |
| A | Function Mode Option | A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer. |
| Blank : Optional model, IP68, with fixed Vo and lo level. | ||
Meanwell HEP-320-12 Specifications
| Model | HEP-320-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 22A | |
| RATED POWER | 264W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.5V | |
| CURRENT ADJ. RANGE | 11-22A | |
| VOLTAGE TOL ERANCE | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±2.0% | |
| SETUP, RISE TIME | 2500ms,80ms/115VAC 500ms,80ms/230VAC at full load | |
| HOLD UP TIME (Typ.) | 15ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC (277VAC operational) 120~370VDC(390VDC operational |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load | |
| EFFICIENCY (Typ.) | 91.0% | |
| AC CURRENT (Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER LOAD | 105 ~ 125% |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 14-17V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -55 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -60 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 154.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 252*90*43.8mm (L*W*H) | |
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |
Meanwell HEP-320-12 Features
l 6 years warranty
l Built-in active PFC function
l High efficiency up to 95%
l Fanless design, cooling by free air convection
l -55℃~+70℃ wide operating range
l Aluminum case and filling with heat-conducted silicone
l IP65 design, optional IP68 rated model available
l Meet 6KV surge immunity level
l Withstand 10G vibration test
l Operating altitude up to 5000 meters
l Universal AC input/Full range (up to 305 VAC)
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HEP-320-12 Applications
l Outdoor telecommunication equipment
l Outdoor electronic signage and billboard
l Petroleum plant or mine shaft facility
Meanwell HEP-320-12 Mechanical Diagram
