HEP-1000-48
309.21
Details

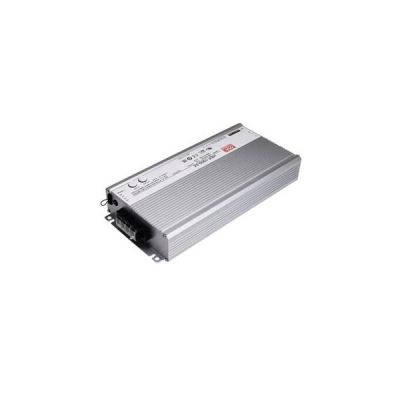

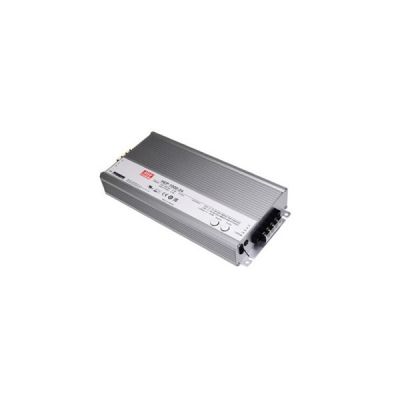

Meanwell HEP 1000-48 is a 1 000W industrial AC/DC power supply with 48V21A1008W200mVp-p. The model offers the outstanding capability to work under highly humid, dusty, oily, and high-vibration harsh conditions. In addition, it is also housed with the aluminum case and fully potted with heat-conducted glue. Thanks to the high efficiency up to 96%, HEP 1000-48 could operate from -40 ~ 70℃ under air convection without fan. Moreover, HEP-1000-48 has the complete protection functions and 10G anti-vibration capability. At the same time, It is complied with the international safety regulations such as TUV EN62368-1 UL62368-1, and the design refers to EN61 558-1 and EN60335-1. In light of the high efficiency, high reliability and long longevity, Meanwell HEP-1000-48 is a high performance power supply solution for various industrial and charger applications.
Meanwell HEP-1000-48 Specifications
| Model | HEP-1000-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 21A | |
| RATED POWER | 1008W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | By built-in potentiometer, SVR | |
| 48-60V | ||
| VOLTAGE TOL ERANCE | ±1% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1 800ms, 80ms at full load 230VAC /115VAC | |
| HOLD UP TIME (Typ.) | 16ms / 230VAC at 75% load 12ms / 230VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 250 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.99/115VAC, PF>0.95/23OVAC, PF>0.93/277VAC at full load95% | |
| EFFICIENCY (Typ.) | 96% | |
| AC CURRENT (Typ.) | 10.1A/ 115VAC 5. 3A/ 230VAC 4.5A/ 277VAC | |
| INRUSH CURRENT(Typ.) | Cold start 40A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA/ 240VAC | |
| PROTECTION | OVERL OAD | 105~125% rated output power |
| Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover | ||
| SHORT CIRCUIT | Constant current limiting, unit will shutdown after 5 sec, re-power on to recover | |
| OVER VOLTAGE | 60 ~ 70V | |
| Protection type :Shut down O/P voltage,re-power on to recover | ||
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage.Please refer to the Function Manual. |
| OUTPUT CURRENTPROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current.Please refer to the Function Manual. | |
| REMOTE ON/OFF CONTROL | Power ON : Short circuit Power OFF : Open circuit | |
| AUXILIARY POWER | 12V @ 0.5A tolerance t10%, ripple=150mVp-p | |
| DC-OK SIGNAL | The TTL signalout, PSUturnon=4.4~ 5.5V ; PSU turn off= -0.5~ O.5V. Please refer to the Function Manual. | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refer to BS EN/EN61558-1, BS EN/EN60335-1(by request) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | |
| OTHERS | MTBF | 197.9K hrs min. Telcordia SR-332 (Bellcore) ; 52.32K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 310*144*48.5mm (L*W*H) | |
| PACKING | 4Kg;4pcs/17Kg/1.04CUFT | |
Meanwell HEP-1000-48 Features
l 6 years warranty
l High efficiency up to 96%
l Power or charger mode switchable by SBP-001(Terminal type)
l Built-in default 2/3 stage charging curves and programmable curve
l Built-in PMBus protocol 1 CANBus protocol (optional )
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in remote ON-OFF control (Terminal type)
l DC OK active signal and 12V Auxiliary power available
l LED indicator for power on (Terminal type)
l IP67 design for indoor or outdoor installation (Wiring type)
l Aluminum case fanless design and filling with heat-conducted glue and able to withstand 10G vibration test
l Wide operating temperature range -40 ~ +70*C
l Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Meanwell HEP-1000-48 Applications
l Household appliances
l 5G telecom equipment
l Industrial automation machinery
l Electronic instruments, equipment
l ·Robotic lawn mower/AMR/AGV
l Equipment or instruments with back-up battery
l Industrial control system at harsh environment Mechanical and electrical equipment
Meanwell HEP-1000-48 Mechanical Diagram
