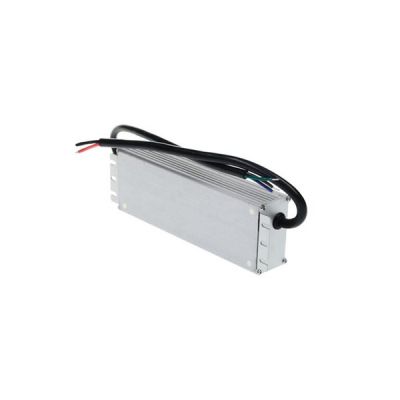

Meanwell HEP-100-12 is a 100W industrial AC/DC power supply with 12V8.34A100.08W120mVp-p10.8-13.5V5-8.34A±2%±0.5%±2%. The product highlights the outstanding capability to work under highly humid, dusty, oily, and high-vibration harsh environment. Since it is housed with the aluminum case and fully potted with heat-conducted silicone, HEP-100-12 could meet 6KV surge immunity level, withstand 10G vibration test and operate up to 5000 meters. In addition to them, the model offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Based on the state-of-the-art design, the working efficiency can reach up to 93%, enabling HEP-100-12 perfectly to work between -55 ℃ and +70 ℃ under free air convection. Thanks to its high reliability, excellent quality and long life, Meanwell HEP-100-12 is ideal for critical conditions.
Meanwell HEP-100-12 Encoding
| HEP | Series Name | |
| 100 | Rated Wattage | |
| 12 | Output Voltage | |
| A | Function Mode Option | A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer. |
| Blank : Optional model, IP68, with fixed Vo and lo level. | ||
Meanwell HEP-100-12 Specifications
| Model | HEP-100-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 8.34A | |
| RATED POWER | 100.08W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.5V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer for A type only | |
| 5-8.34A | ||
| VOLTAGE TOL ERANCE | ±2% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±2% | |
| SETUP, RISE TIME | 1200ms,50ms/115VAC 500ms,50ms/230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC (277VAC operational) 120~370VDC(390VDC operational) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.91/277VAC at full load | |
| EFFICIENCY (Typ.) | 92% | |
| AC CURRENT (Typ.) | 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVERL OAD | 105 ~ 125% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, unit will shutdown after 5 sec, re-power on to recover | |
| OVER VOLTAGE | 14-17V | |
| Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -55 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -60 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-100 Blank type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020 |
|
| OTHERS | MTBF | 164.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*68*38.8mm (L*W*H) | |
| PACKING | 1.12Kg; 12pcs/14.4Kg/0.8CUFT | |
Meanwell HEP-100-12 Features
l 6 years warranty
l Universal AC input/Full range (up to 305 VAC)
l Built-in active PFC function
l High efficiency up to 93%
l Fanless design, cooling by free air convection
l -55℃~+70℃ wide operating range
l Aluminum case and filling with heat-conducted silicone
l IP65 design, optional IP68 rated model available
l Meet 6KV surge immunity level
l Withstand 10G vibration test
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 5000 meters
Meanwell HEP-100-12 Applications
l Petroleum plant or mine shaft facility
l Outdoor telecommunication equipment
l Outdoor electronic signage and billboard

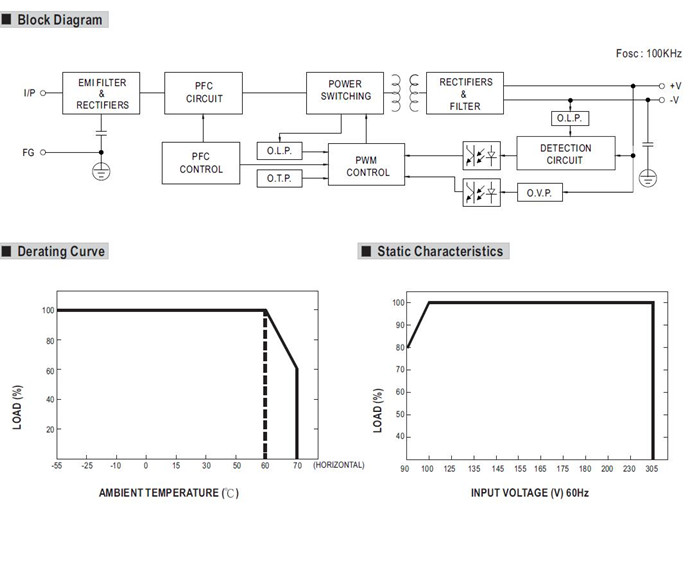

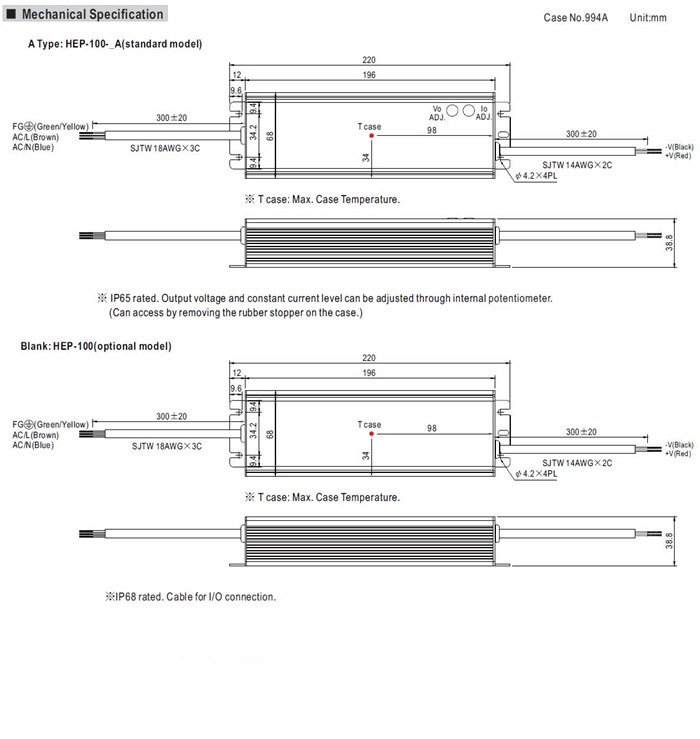

Meanwell HEP-100-12 Mechanical Diagram
