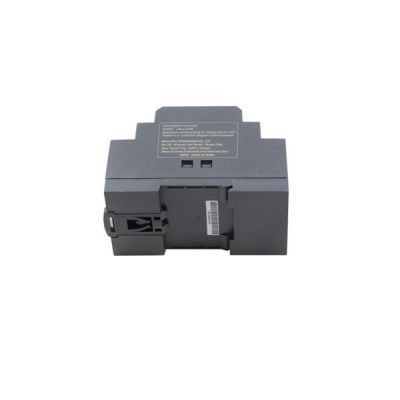

HDR-60
14.15

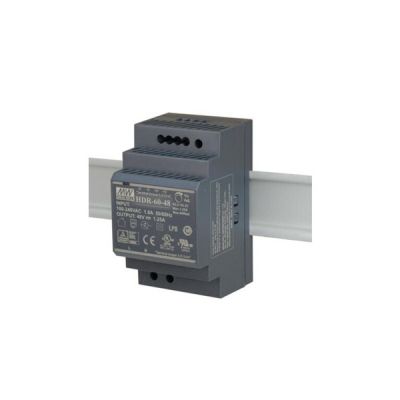

Details
Meanwell HDR-60 Series is one economical ultra slim 60W DIN rail power supply. The series adapt to be installed on TS-35/7.5or TS-35/15 mounting rails, and its body is designed 52 .5mm(3SU) in width, which saves space inside the cabinets. HDR-60 Series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Apart from them, HDR-60 is designed with plastic housing, so it can effectively prevent user from electric hazards. With working efficiency up to 91%, the entire series can operate at the ambient temperature between -30 ℃and 70 ℃ under air convection. Thanks to the complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1 ,UL _508,UL _62368-1 ,BS EN/EN61 558-2-16), Meanwell HDR-60 Series is a very competitive power supply solution for household and industrial applications.
Meanwell HDR-60 Series Model Specifications
| Model | HDR-60-5 | HDR-60-12 | HDR-60-15 | HDR-60-24 | HDR-60-48 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 6.5A | 4.5A | 4A | 2.5A | 1.25A | |
| CURRENT RANGE | 0-6.5A | 0-4.5A | 0-4A | 0-2.5A | 0-1.25A | |
| RATED POWER | 32.5W | 54W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 5.0-5.5V | 10.8-13.8V | 13.5-18V | 21.6-29V | 43.2-55.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | |||||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |||||
| Input | VOLTAGE RANGE | 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational ) | ||||
| FREQUENCY RANGE | 47 - 63Hz | |||||
| EFFICIENCY (Typ.) | 85.00% | 88.00% | 89.00% | 90.00% | 91% | |
| AC CURRENT (Typ.) | 1.2A/115VAC 0.8A/230VAC | |||||
| INRUSH CURRENT (Typ. ) | COLD START 30A/115VAC 6 0A/230VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | ||||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed |
||||||
| OVER VOLTAGE | 5.75-6.75V | 14.2-16.2V | 18.8-22.5V | 30-36V | 56.5-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) RH non-condensing | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1, IS13252(Part1)/IEC60950-1 approved; Design refer to BS EN/EN62368-1 |
||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55032(CISPR32), CNS13438 | CLASS B | ||||
| Radiated | BS EN/EN55032(CISPR32), CNS13438 | CLASS B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | CLASS A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | ||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, criteria A | ||||
| Surge | BS EN/EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| Others | MTBF | 927 .6K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 52.5*90*54.5mm (W*H*D) | |||||
| PACKING | 190g;60pcs/12.4Kg/0.97CUFT | |||||
Meanwell HDR-60 Series Features
l Ultra slim design with 52.5mm(3SU) width
l Universal input 85~ 264VAC (277VAC operational)
l No load power consumption<O.3W
l lsolation class Ⅱ
l Pass LPS (Limited power source)
l DC output voltage adjustable
l Protections: Short circuit/ Overload / Over voltage
l Cooling by free air convection (working temperature:-30℃ ~+70℃)
l DIN rail TS-35/7.5 or15 mountable
l Over voltage category Ⅲ
l LED indicator for power on
l 3 years warranty
Meanwell HDR-60 Series Applications
l Factory automation
l Building automation
l Household control system
l Industrial control system
l Electro-mechanical apparatus

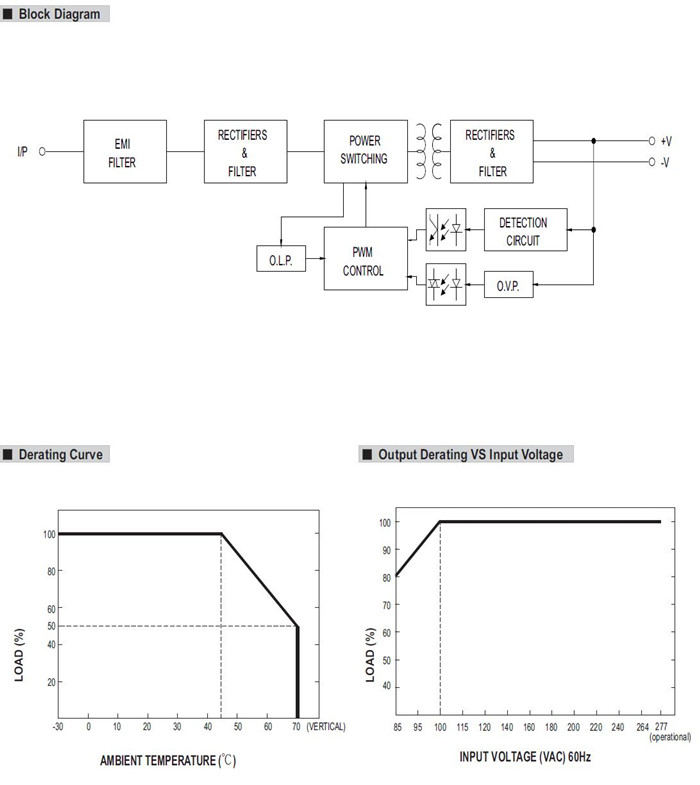

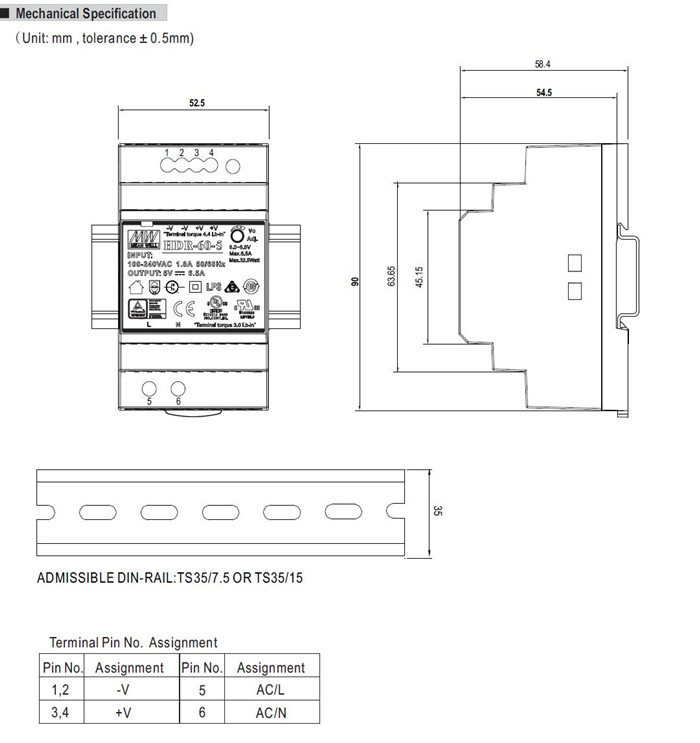

Meanwell HDR-60 Series Mechanical Diagram
