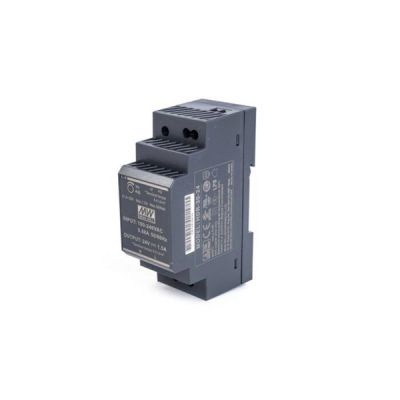

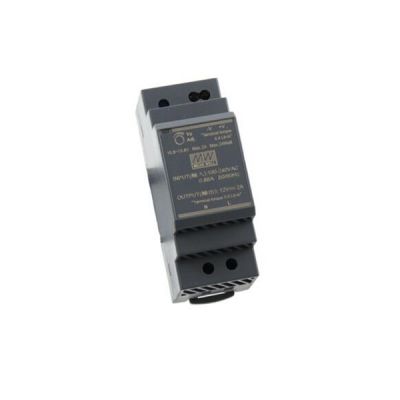

Meanwell 30W Ultra Slim Step Shape DIN Rail

- +
Availability:In stock
SKU Meanwell HDR-30
Brand Meanwell
Details

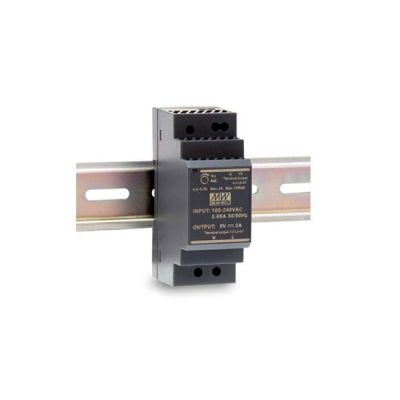

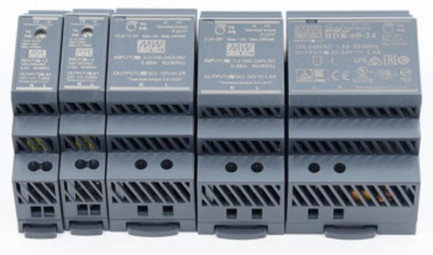

Meanwell HDR-30 Series is one economical ultra slim 30W DIN rail power supply. The whole series adapt to be installed on TS-35/7.5or TS-35/15 mounting rails. The body is designed 35mm(2SU) in width, permitting space saving inside the cabinets. HDR-30 Series adopts the full range AC input from 85VAC to 264 VAC  (277VAC operational)and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. In addition, HDR-30 Series is designed with plastic housing, so that it can effectively prevent user from electric hazards. With working efficiency up to 90%, Meanwell HDR-30 Series is able to operate at the ambient temperature between -30 ℃ and 70 ℃under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1, UL508,UL62368-1, BS EN/EN61 558-2-16) make HDR-30 Series a very competitive power supply solution for household and industrial applications.

Meanwell HDR-30 Series Model Specifications

Meanwell HDR-30 Series Model Specifications

Model HDR-30-5 HDR-30-12 HDR-30-15 HDR-30-24 HDR-30-48
Output DC VOLTAGE 5V  12V 15V 24V 48V
RATED CURRENT 3A 2A 2A 1.5A 0.75A
CURRENT RANGE 0-3A 0-2A 0-2A 0-1.5A 0-0.75A
RATED POWER  15W 24W 30W 36W 36W
RIPPLE & NOISE (max.)  80mVp-p 120mVp-p 120mVp-p 150mVp-p 240mVp-p
VOLTAGE ADJ. RANGE 4.5-5.5V 10.8-13.8V 13.5-18V 21.6-29V 43.2-55.2V
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGUL ATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264 VAC (277VAC operational ) 120 ~ 370 VDC (390VDC operational )
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  82.00% 88.00% 89.00% 89.00% 90%
AC CURRENT (Typ.) 0.88A/115VAC 0.48A/230VAC
INRUSH CURRENT (Typ. ) COLD START 25A/115VAC 45A/230VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75-6.75V 15-18V 18.8-22.5V 30-36V 57.6-67.2V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) RH non-condensing
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 2000 meters
OVER VOLTAGE CATEGORY ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1,IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;
Design refer to TUV BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32), CNS13438 CLASS B
Radiated BS EN/EN55032(CISPR32), CNS13438 CLASS B
Harmonic Current BS EN/EN61000-3-2 CLASS A
Voltage Flicker BS EN/EN61000-3-3 …..
EMC IMMUNITY BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
Others MTBF 968.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 35*90*54.5mm (W*H*D)
PACKING 0.12Kg;96pcs/12.5Kg/1.1CUFT

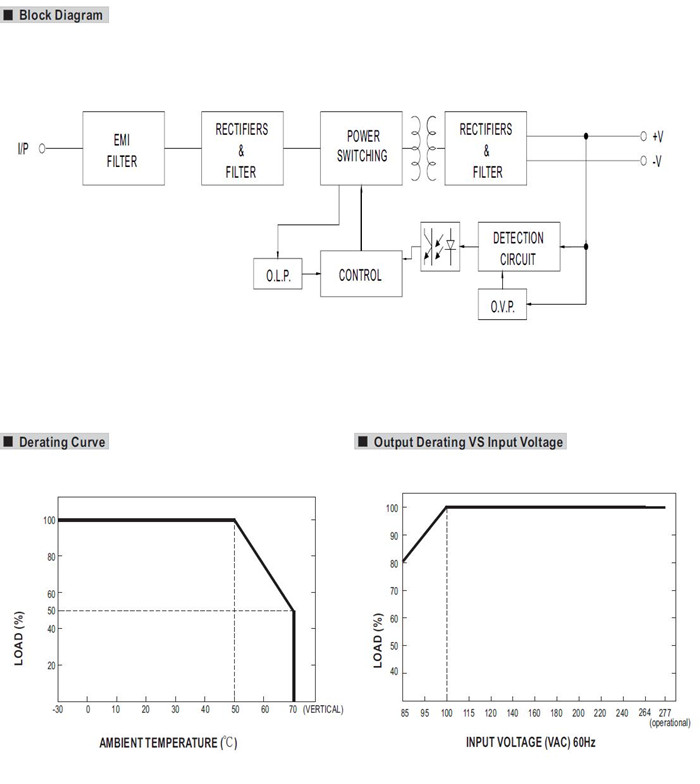

Meanwell HDR-30 Series Features

l  Ultra slim design with 35mm(2SU) width

l  Universal input 85~ 264VAC (277VAC operational)

l  No load power consumption<0.3W

l  Isolation classⅡ

l  Pass LPS (Limited power source)

l  DC output voltage adjustable

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection (working temperature: -30~+70 ℃ )

l  DIN rail TS-35/7.5 or 15 mountable

l  Over voltage category Ⅲ

l  LED indicator for power on

l  3 years warranty

Meanwell HDR-30 Series Features

Meanwell HDR-30 Series Applications

l  Factory automation

l  Building automation

l  Industrial control system

l  Electro-mechanical apparatus

l  Household control system

Meanwell HDR-30 Series Applications

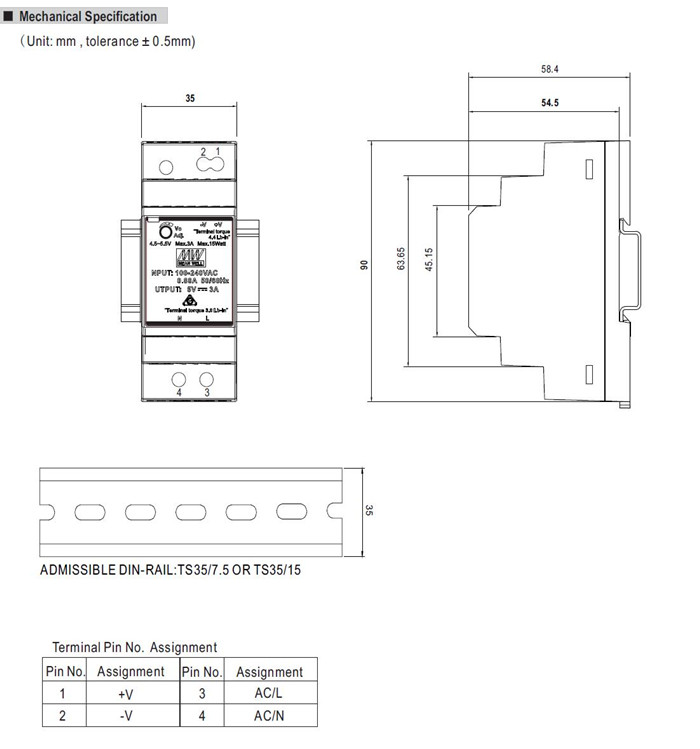

Meanwell HDR-30 Series Mechanical Diagram

Meanwell HDR-30 Series Mechanical DiagramMeanwell HDR-30 Series Mechanical Diagram
