HDR-30-15
13.81
Details

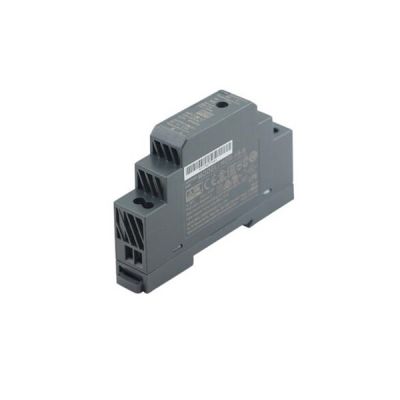

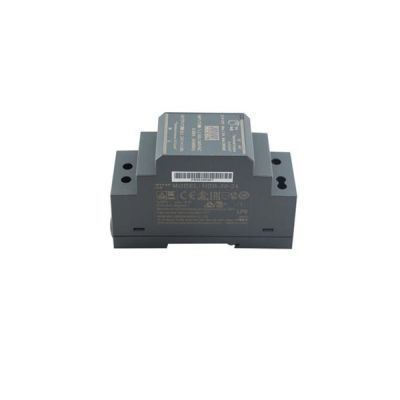

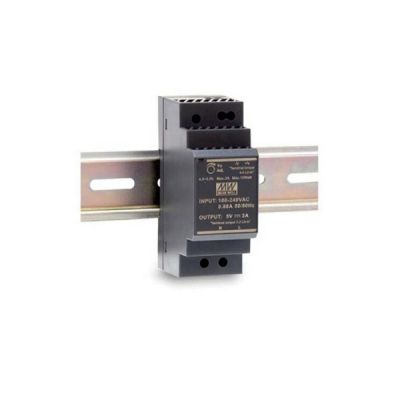

Meanwell HDR-30-15 is an economical ultra slim 30W DIN rail power supply with 15V2A0-2A30W120mVp-p13.5-18V. The unit adapted to be installed on TS-35/7.5or TS-35/15 mounting rails, and Its body is designed 35mm(2SU) in width, which saves space inside the cabinets. HDR-30-15 adopts the full range AC input from 85VAC to 264 VAC (277VAC operational)and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Moreover, HDR-30-15 is designed with plastic housing, so that it can effectively prevent user from electric hazards. As to working efficiency reaching up to 90%, Meanwell HDR-30-15 is able to work at the ambient temperature between -30 ℃ and 70 ℃under air convection. In view of the complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1, UL508,UL62368-1, BS EN/EN61 558-2-16), Meanwell HDR-30-15 is a very competitive power supply solution for household and industrial applications.
Meanwell HDR-30-15 Specifications
| Model | HDR-30-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 2A | |
| CURRENT RANGE | 0-2A | |
| RATED POWER | 30W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5-18V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264 VAC (277VAC operational ) 120 ~ 370 VDC (390VDC operational ) |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 0.88A/115VAC 0.48A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 25A/115VAC 45A/230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed |
||
| OVER VOLTAGE | 18.8-22.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) RH non-condensing | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| OPERATING ALTITUDE | 2000 meters | |
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1,IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3 | |
| Others | MTBF | 968.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 35*90*54.5mm (W*H*D) | |
| PACKING | 0.12Kg;96pcs/12.5Kg/1.1CUFT | |
Meanwell HDR-30-15 Features
l 3 years warranty
l Isolation classⅡ
l Over voltage category Ⅲ
l LED indicator for power on
l Pass LPS (Limited power source)
l DC output voltage adjustable
l No load power consumption<0.3W
l DIN rail TS-35/7.5 or 15 mountable
l Ultra slim design with 35mm(2SU) width
l Universal input 85~ 264VAC (277VAC operational)
l Protections: Short circuit/Overload/Over voltage
Meanwell HDR-30-15 Applications
l Factory automation
l Building automation
l Industrial control system
l Electro-mechanical apparatus
l Household control system
Meanwell HDR-30-15 Mechanical Diagram
