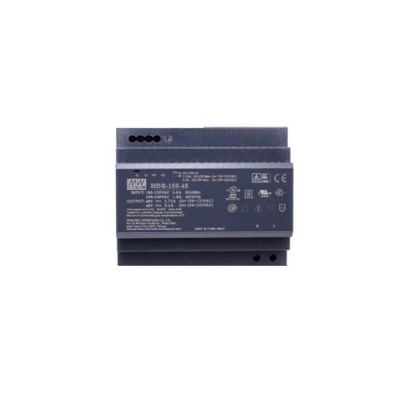

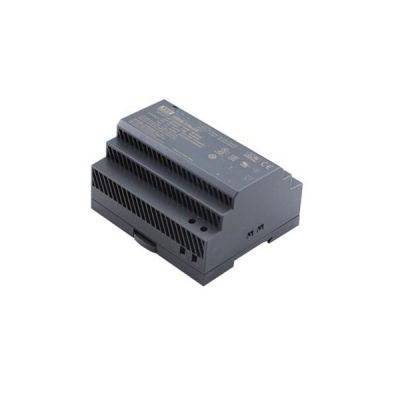

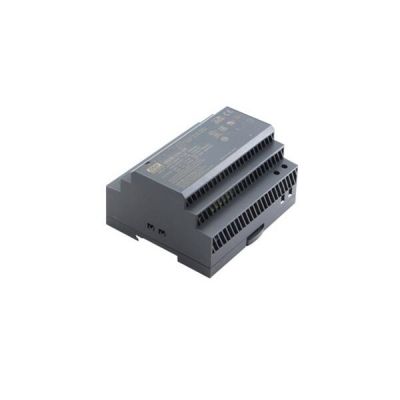

Meanwell HDR-150 Series is an economical ultra slim 1 50W DIN rail power supply. The entire series adapts to be installed on TS-35/7.5or TS-35/1 5 mounting rails. The body is designed 105mm(6SU) in width, which can save space inside the cabinets. HDR-150 Series also adopts the full range AC input from 85VAC to 264VAC (27 7VACoperational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Apart from them, HDR-1 50 Series is designed with plastic housing, so that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, HDR-150 Series can operate at the ambient temperature between -30 ℃ and 70 ℃ under air convection. Considering its complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL62368-1,UL61010, BS EN/EN61558-2-16), Meanwell HDR-150 Series is a very competitive power supply solution for household and industrial applications.
Meanwell HDR-150 Series Model Specifications

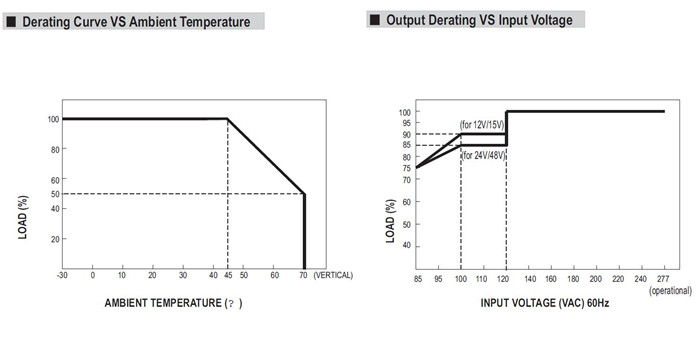

| Model | HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | ||
| Output | DC VOLTAGE | 12V | 15V | 24V | 48V | |
| RATED CURRENT | 115VAC | 10.2A | 8.5A | 5.3A | 2.72A | |
| 230VAC | 11.3A | 9.5A | 6.25A | 3.2A | ||
| RATED POWER | 115VAC | 122.4W | 128.3W | 127.4W | 130.6W | |
| 230VAC | 135.6W | 142.5W | 150W | 153.6W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 10.8-13.8V | 13.5-18V | 21.6-29V | 43.2-55.2V | ||
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGUL ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 6 0ms/230VAC 500ms, 6 0ms/115VAC at full load | |||||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |||||
| Input | VOLTAGE RANGE | 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational ) | ||||
| FREQUENCY RANGE | 47 - 63Hz | |||||
| EFFICIENCY (Typ.) | 89.00% | 89.50% | 90.50% | 90.5% | ||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | |||||
| INRUSH CURRENT (Typ. ) | COLD START 35A/115VAC 70A/230VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed |
||||||
| OVER VOLTAGE | 14.2-16.2V | 18.8-22.5V | 30-36V | 56.5-64.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) RH non-condensing | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN62368,EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | |||||
| SAFETY &EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004 approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1 |
||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55032(CISPR32) | CLASS B | ||||
| Radiated | BS EN/EN55032(CISPR32) | CLASS B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | CLASS A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | ||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, criteria A | ||||
| Surge | BS EN/EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| Others | MTBF | 536K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 105*90*54 .5mm (W*H*D) | |||||
| PACKING | 0.31Kg; 32pcs/11Kg/1.0CUFT | |||||
Meanwell HDR-150 Series Features
l Ultra slim design with 105mm(6SU) width
l Universal input 85~ 264VAC (277VAC operational)
l No load power consumption<0.3W
l lsolation classⅱ
l DC output voltage adjustable
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l DIN rail TS-35/7.5 or 15 mountable
l Over voltage category ⅲ
l LED indicator for power on
l 3 years warranty
Meanwell HDR-150 Series Applications
l Building automation
l Factory automation
l Industrial control system
l Household control system
l Electro-mechanical apparatus

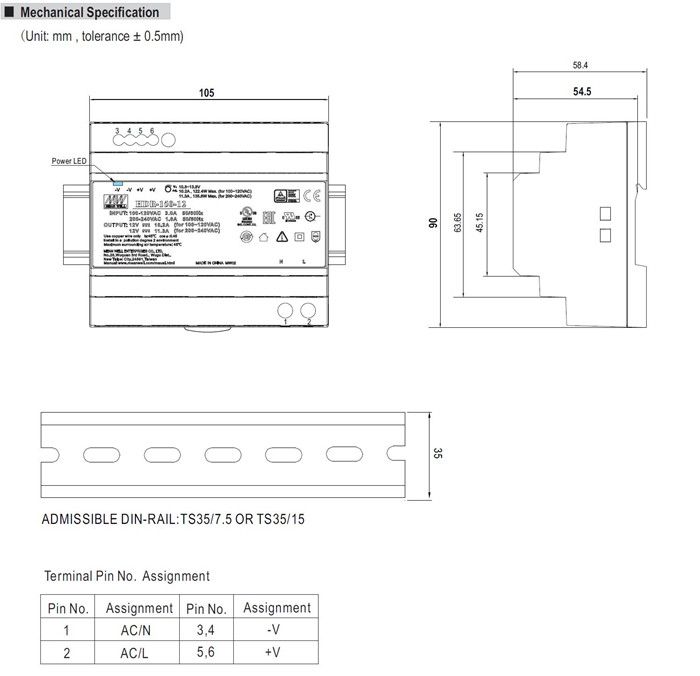

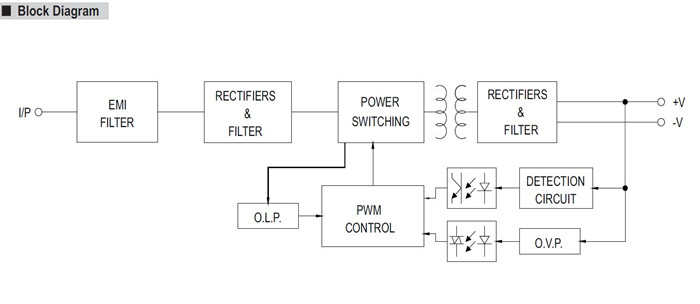

Meanwell HDR-150 Series Mechanical Diagram
