HDR-150-24
24.17
Details

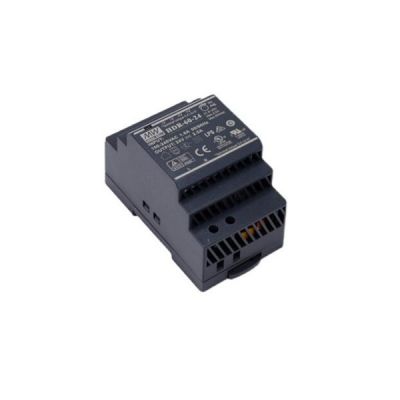

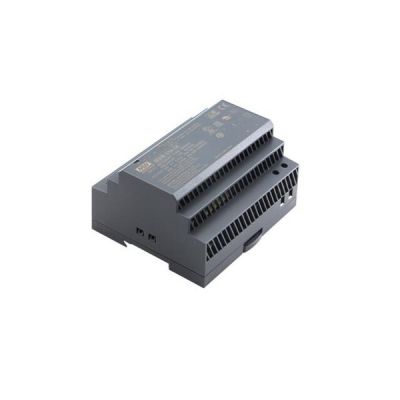

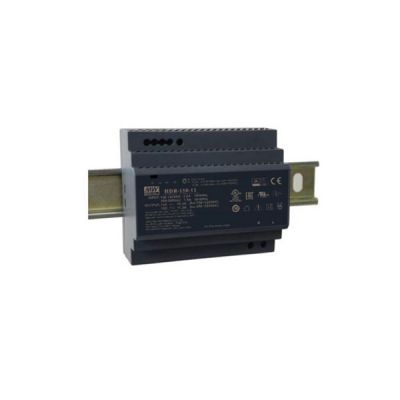

Meanwell HDR-150-24 is an economical ultra slim 1 50W DIN rail power supply with 24V5.3A6.25A127.4W150W150mVp-p21.6-29V. It adapts to be set up on TS-35/7.5or TS-35/1 5 mounting rails, and the body is just105mm(6SU) in width, which saves space inside the cabinets. Additionally, HDR-150-24 adopts the full range AC input from 85VAC to 264VAC (27 7VACoperational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Furthermore, HDR-1 50-24 is equipped with plastic housing, so that it can effectively prevent user from electric hazards. With working efficiency reaching up to 90.5%, HDR-150-24 can work at the ambient temperature between -30 ℃ and 70 ℃ under air convection. In light of its complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL62368-1,UL61010, BS EN/EN61558-2-16), Meanwell HDR-150-24 is a very competitive power supply solution for household and industrial applications.
Meanwell HDR-150-24 Specifications
| Model | HDR-150-24 | ||
| Output | DC VOLTAGE | 24V | |
| RATED CURRENT | 115VAC | 5.3A | |
| 230VAC | 6.25A | ||
| RATED POWER | 115VAC | 127.4W | |
| 230VAC | 150W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 21.6-29V | ||
| VOLTAGE TOLERANCE | ±1.0% | ||
| LINE REGUL ATION | ±1.0% | ||
| LOAD REGULATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 6 0ms/230VAC 500ms, 6 0ms/115VAC at full load | ||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | ||
| Input | VOLTAGE RANGE | 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational ) | |
| FREQUENCY RANGE | 47 - 63Hz | ||
| EFFICIENCY (Typ.) | 90.50% | ||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 35A/115VAC 70A/230VAC | ||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed |
|||
| OVER VOLTAGE | 30-36V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) RH non-condensing | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| OPERATING ALTITUDE | 2000 meters | ||
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN62368,EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | ||
| SAFETY &EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004 approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1 |
|
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | ||
| Others | MTBF | 536K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 105*90*54 .5mm (W*H*D) | ||
| PACKING | 0.31Kg; 32pcs/11Kg/1.0CUFT | ||
Meanwell HDR-150-24 Features
l lsolation classⅱ
l 3 years warranty
l Over voltage category ⅲ
l LED indicator for power on
l Ultra slim design with 105mm(6SU) width
l Universal input 85~ 264VAC (277VAC operational)
l No load power consumption<0.3W
l DC output voltage adjustable
l Cooling by free air convection
l DIN rail TS-35/7.5 or 15 mountable
l Protections: Short circuit/Overload/Over voltage
Meanwell HDR-150-24 Applications
l Building automation
l Factory automation
l Industrial control system
l Household control system
l Electro-mechanical apparatus
Meanwell HDR-150-24 Mechanical Diagram
