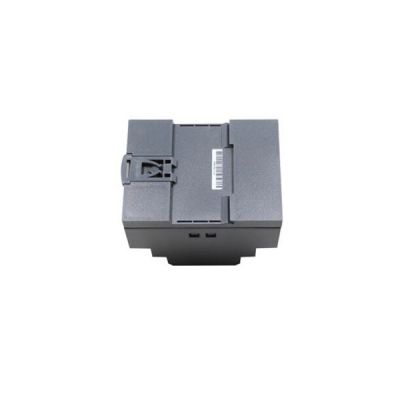

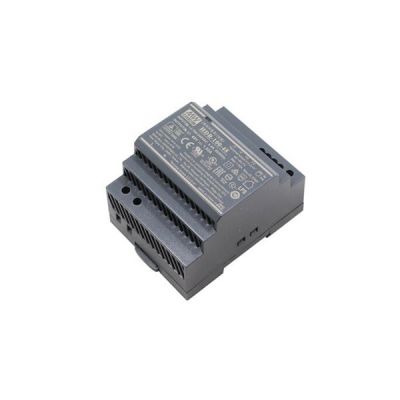

HDR-100
15.67
Details

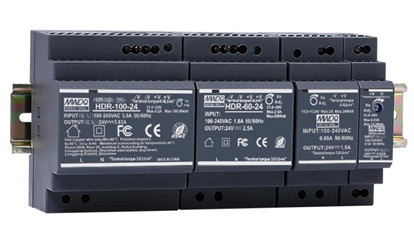

Meanwell HDR-100 Series is one economical ultra slim 100W DIN rail power supply. The entire adapts to be installed on TS-35/7.5or TS-35/15 mounting rails, and its body is designed 70mm (4SU) in width, which allows space saving inside the cabinets. HDR-100 Series adopts the full range AC input from 85VAC to 264VAC (27 7VACoperational) and conforms to BS EN/EN61 000-3-2, the norm the European Union regulates for harmonic current. Apart from them, HDR-100 Series is designed with plastic housing, so it could effectively prevent user from electric hazards. With working efficiency up to 90%, HDR-100 Series can operate at the ambient temperature between -30 ℃ and 70 ℃ under air convection. Considering its complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508, UL62368-1, BS EN/EN61558-2-16), Meanwell HDR-100 Series is a very competitive power supply solution for household and industrial applications.
Meanwell HDR-100 Series Model Specifications
| Model | HDR-100-12 | HDR-100-12N | HDR-100-15 | HDR-100-15N | HDR-100-24 | HDR-100-24N | HDR-100-48 | HDR-100-48N | ||
| Output | DC VOLTAGE | 12V | 15V | 24V | 48V | |||||
| RATED CURRENT | 7.1A | 7.5A | 6.13A | 6.5A | 3.83A | 4.2A | 1.92A | 2.1A | ||
| CURRENT RANGE | 0.7.1A | 0-7.5A | 0-6.13A | 0-6.5A | 0-3.83A | 0-4.2A | 0-1.92A | 0-2.1A | ||
| RATED POWER | 85.2W | 90W | 92W | 97.5W | 92W | 100.8W | 92.2W | 100.8W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | ||||||
| VOLTAGE ADJ. RANGE | Pass LPS | 12-13V | 15-17V | 24-25.5V | 48-48.7V | |||||
| Non LPS | 12-13.8V | 13.5-18V | 21.6-29V | 43.2-55.2V | ||||||
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
| LINE REGUL ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
| SETUP, RISE TIME | 500ms, 6 0ms/230VAC 500ms, 6 0ms/115VAC at full load | |||||||||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |||||||||
| Input | VOLTAGE RANGE | 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational ) | ||||||||
| FREQUENCY RANGE | 47 - 63Hz | |||||||||
| EFFICIENCY (Typ.) | 88.00% | 89.00% | 90.00% | 90% | ||||||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | |||||||||
| INRUSH CURRENT (Typ. ) | COLD START 35A/115VAC 70A/230VAC | |||||||||
| PROTECTION | OVERLOAD | HDR-100 : 102 ~ 110% rated output power ; HDR-100-xxN : 105 ~ 150% rated output power | ||||||||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed |
||||||||||
| OVER VOLTAGE | 14.2-16.2V | 18.8-22.5V | 30-36V | 56.5-64.8V | ||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) RH non-condensing | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||||||
| OPERATING ALTITUDE | 2000 meters | |||||||||
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | |||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV BS EN/EN62368-1 |
||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||
| Conducted | BS EN/EN55032(CISPR32), CNS13438 | CLASS B | ||||||||
| Radiated | BS EN/EN55032(CISPR32), CNS13438 | CLASS B | ||||||||
| Harmonic Current | BS EN/EN61000-3-2 | CLASS A | ||||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | ||||||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3 | |||||||||
| Parameter | Standard | Test Level | ||||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, criteria A | ||||||||
| Surge | BS EN/EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | ||||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||||||
| Others | MTBF | 856.5K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 70*90*54 .5mm (W*H*D) | |||||||||
| PACKING | 0.27Kg; 48pcs/14Kg/1.06CUFT | |||||||||
Meanwell HDR-100 Series Features
l Ultra slim design with 70mm(4SU) width
l Universal input 85~ 264VAC (277V AC operational)
l No load power consumption<0.3W
l Isolation classⅡ
l Pass LPS (Limited power source) for Blank type
l DC output voltage adjustable
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection (working temperature: -30~+70℃)
l DIN rail TS-35/7.5 or 15 mountable
l Over voltage category Ⅲ
l LED indicator for power on
l 3 years warranty
Meanwell HDR-100 Series Applications
l Household control system
l Building automation
l Industrial control system
l Factory automation
l Electro-mechanical apparatus

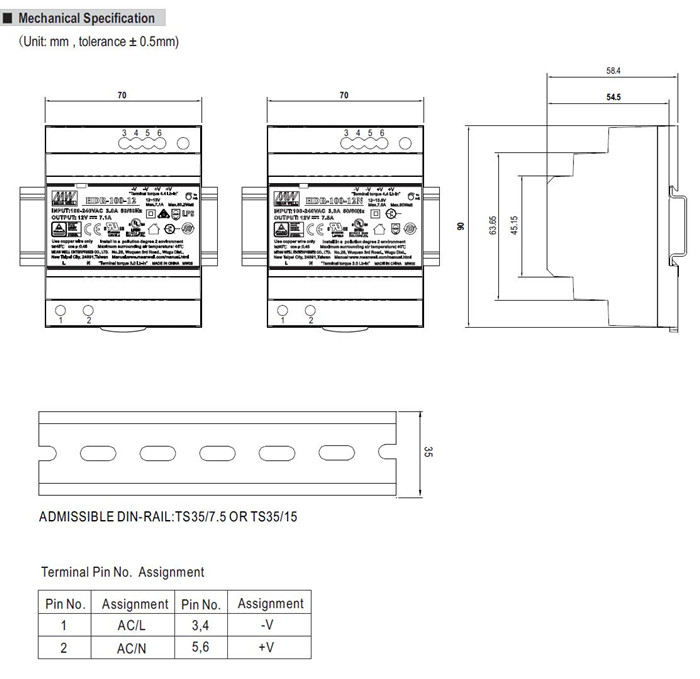

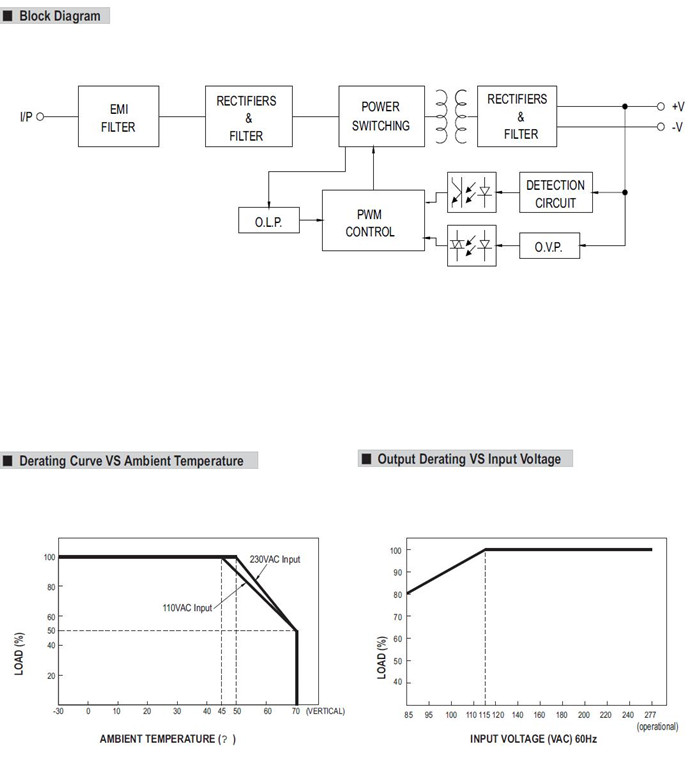

Meanwell HDR-100 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
