HDR-100-12N
22.36
Details

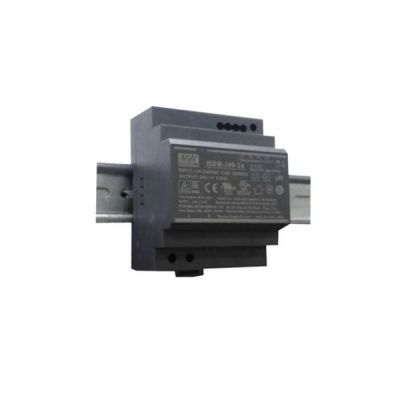

Meanwell HDR-100-12N is an economical ultra slim 100W DIN rail power supply with 12V7.5A0-7.5A90W120mVp-pPass LPS12-13VNon LPS12-13.8V.The unit adapts to be installed on TS-35/7.5or TS-35/15 mounting rails, and its body is just 70mm (4SU) in width, saving lots of space inside the cabinets. Additionally, HDR-100-12N adopts the full range AC input from 85VAC to 264VAC (27 7VACoperational) and conforms to BS EN/EN61 000-3-2, the norm the European Union regulates for harmonic current. What’s more, HDR-100-12N is designed with plastic housing, so it could effectively prevent user from electric hazards. With working efficiency reaching up to 90%, HDR-100-12N can work at the ambient temperature between -30 ℃ and 70 ℃ under air convection. Owing to its complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508, UL62368-1, BS EN/EN61558-2-16), Meanwell HDR-100-12N is a very competitive power supply solution for household and industrial applications.
Meanwell HDR-100-12N Specifications
| Model | HDR-100-12N | ||
| Output | DC VOLTAGE | 12V | |
| RATED CURRENT | 7.5A | ||
| CURRENT RANGE | 0-7.5A | ||
| RATED POWER | 90W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | ||
| VOLTAGE ADJ. RANGE | Pass LPS | 12-13V | |
| Non LPS | 12-13.8V | ||
| VOLTAGE TOLERANCE | ±2.0% | ||
| LINE REGUL ATION | ±1.0% | ||
| LOAD REGULATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 6 0ms/230VAC 500ms, 6 0ms/115VAC at full load | ||
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | ||
| Input | VOLTAGE RANGE | 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational ) | |
| FREQUENCY RANGE | 47 - 63Hz | ||
| EFFICIENCY (Typ.) | 88.00% | ||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 35A/115VAC 70A/230VAC | ||
| PROTECTION | OVERLOAD | HDR-100 : 102 ~ 110% rated output power ; HDR-100-xxN : 105 ~ 150% rated output power | |
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed |
|||
| OVER VOLTAGE | 14.2-16.2V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) RH non-condensing | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| OPERATING ALTITUDE | 2000 meters | ||
| OVER VOLTAGE CATEGORY | Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters | ||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV BS EN/EN62368-1 |
|
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3 | ||
| Others | MTBF | 856.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 70*90*54 .5mm (W*H*D) | ||
| PACKING | 0.27Kg; 48pcs/14Kg/1.06CUFT | ||
Meanwell HDR-100-12N Features
l Isolation classⅡ
l 3 years warranty
l Ultra slim design with 70mm(4SU) width
l Universal input 85~ 264VAC (277V AC operational)
l No load power consumption<0.3W
l Pass LPS (Limited power source) for Blank type
l DC output voltage adjustable
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection (working temperature: -30~+70℃)
l DIN rail TS-35/7.5 or 15 mountable
l Over voltage category Ⅲ
l LED indicator for power on
Meanwell HDR-100-12N Applications
l Household control system
l Building automation
l Industrial control system
l Factory automation
l Electro-mechanical apparatus
Meanwell HDR-100-12N Mechanical Diagram
