HBGC-300-H
70.92
Details

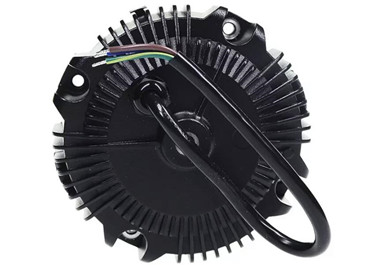

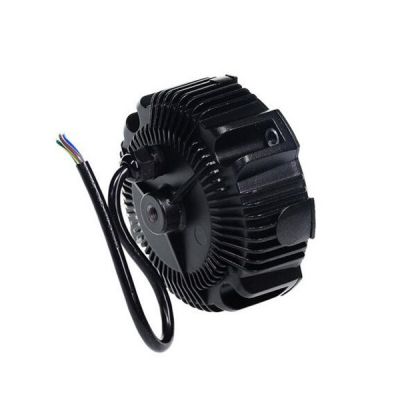

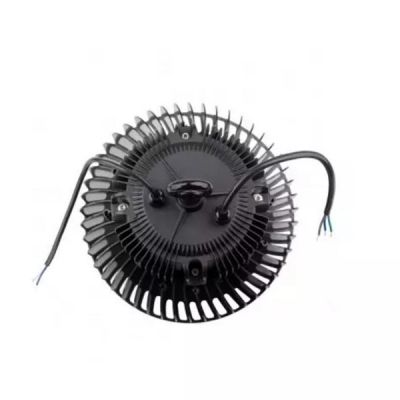

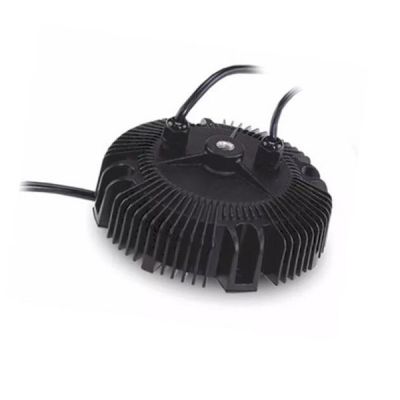

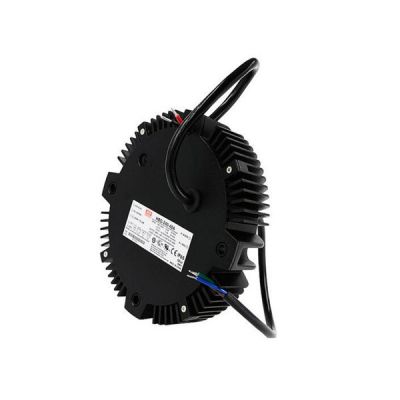

Meanwell HBGC-300-H is a 300W LED AC/DC driver with 5600mA301.6W29-58V5200-8670mA62V2600-8670mA±5.0%47~63Hz. The model provides the constant power mode and high voltage output. Moreover, it is able to work from 90~305VAC with the rated current ranging 5200mA and 8670mA. With the efficiency high up to 94.5% and fanless design, HBGC-300-H could operate for -40℃~+80℃ case temperature under free air convection. Additionally, the metal housing design and IP67 ingress protection level allow it to fit both indoor and outdoor applications. Apart from them, the innovative environment- adaptive capability makes it possible to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Furthermore, the unit is supplied with various function options such as dimming methodologies. As a result of its long lifetime, high efficiency and excellent quality, Meanwell HBGC-300-H is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBGC-300-H Encoding
| HBGC | Series Name |
| 300 | Rated Wattage |
| H | Rated Output Current (1400/2800/5600mA) |
| A | Function Options (A/AB/ADA) |
| Type | IP Level | Function | Note |
| A | IP67 | output constant power adjustable via built-in potentiometer | In stock |
| AB | IP67 | output constant power adjustable via built-in potentiometer + 3 in 1 dimming function (o~ 10Vdc, 10V PWM signal and resistance ) |
In stock |
| DA | IP67 | DALI-2 control technology with lo Adjustable via build-in Potentiometer | In stock |
Meanwell HBGC-300-H Specifications
| Model | HBGC-300-H □ | |
| OUTPUT | DEFAULT CURRENT | 5600mA |
| RATED POWER | 301.6W | |
| CONSTANT CURRENT REGION | 29-58V | |
| FULL POWER CURRENT RANGE | 5200-8670mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 62V | |
| CURRENT ADJ. RANGE | 2600-8670mA | |
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/230VAC, 500ms/115VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127VDC ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.97/115VAC, PF>0.95/230VAC, PF>=0.92 /277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD<10% (at load>=50% at 115VAC/230VAC,at load>=75% at 277VAC | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT (Typ.) | 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=1300 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION |
Standby power consumption <0.5W for AB / ADA-Type Blank/A-Type please refer to Note. 5 |
|
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 61-78V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Tcase>80℃±5℃,derate power automatically by 6%/℃max | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB19510.1,GB19510.14; IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,207 for ADA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%); BS EN/EN61000-3-3,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020 | |
| Others | MTBF | 1772.9K hrs min. Telcordia SR-332 (Bellcore) ;175.4K hrs min. MIL-HDBK-217F (25℃) |
| LIFETIME | 50000 hrs min | |
| DIMENSION | φ191.5mm *69mm | |
| PACKING | 2.2Kg;8pcs/19.8Kg/2.09CUF | |
Meanwell HBGC-300-H Features
l 5 years warranty
l Wide input range 90 ~ 305VAC
l Built-in active PFC function
l Typical lifetime>50000 hours
l Circular metal housing design with IP67
l Full power at 60~1 00% max current (Constant Power)
l Function options: output adjustable via potentiometer;3 in 1 dimming (Dim to off and isolation) ; DALI-2 dimming
Meanwell HBGC-300-H Applications
l Bay lighting
l Stage lighting
l Flood lighting
l Stadium lighting
l Type HL for use in class I, Division 2
Meanwell HBGC-300-H Mechanical Diagram
