HBG-60-1050P
17.36
Details

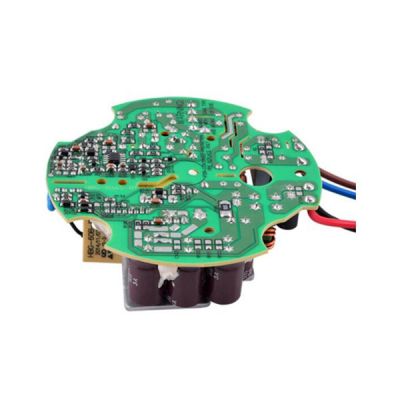

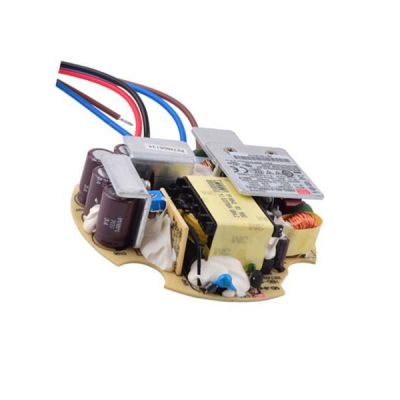

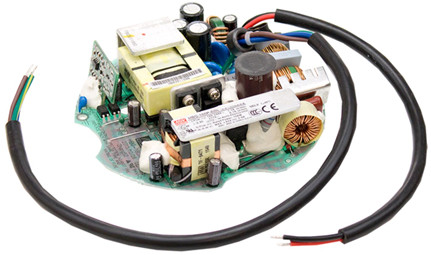

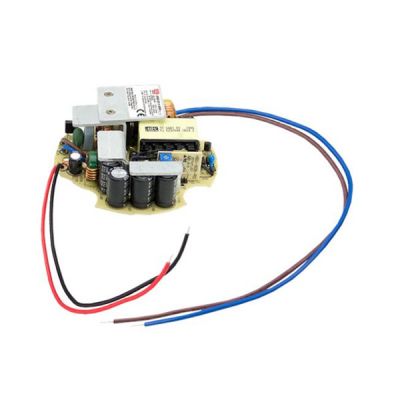

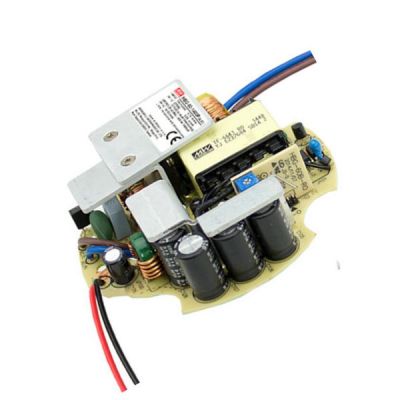

Meanwell HBG-60-1050P is a 60W AC DC PCB type LED power supply with 1050mA57.75W37-55V60V680-1050mA±5.0%. The product highlights the circular shell design. At the same time, it is able to work at input voltage of 90~295VAC with constant current output mode. In addition, HBG-60-1050P offers the model with rated current 1050mA. Since its conversion efficiency reaches high up to 90% under no fan design, it can operate in the ambient temperature range of -40℃ ~+70 ℃ under natural air cooling. Due to its longevity, high efficiency and good quality, Meanwell HBG-60-1050P is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-60-1050P Encoding
| HBG | Series Name |
| 300 | Rated Wattage |
| 1050 | Rated Output Current (1050mA/1400mA/2100mA) |
| P | PCB Type |
Meanwell HBG-60-1050P Specifications
| Model | HBG-60-1050P | |
| OUTPUT | RATED CURRENT | 1050mA |
| RATED POWER | 57.75W | |
| CONSTANT CURRENT REGION | 37-55V | |
| OPEN CIRCUIT VOLTAGE(max.) | 60V | |
| CURRENT ADJ. RANGE | 680-1050mA | |
| CURRENT RIPPLE | 25% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms / 230VAC 1200ms / 115VAC | |
| Input | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=65%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Ta=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13, BS EN/EN62384, GB19510.14,GB19510.1 independent,EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (at load>=65%) ; BS EN/EN61000-3-3,EAC TP TC 020" |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV),EAC TP TC 020 | |
| Others | MTBF | 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | ψ99mm *26mm (D * H) | |
| PACKING | 0.21Kg; 45pcs/ 10.4Kg/ 1.03CUFT | |
Meanwell HBG-60-1050P Features
l Class 2 power unit
l Typical lifetime> 50000 hours
l 5 years warranty
l Constant Current mode output
l Circular shape PCB type design with class ll design
l Built-in active PFC function
Meanwell HBG-60-1050P Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting
l LED down lighting
Meanwell HBG-60-1050P Mechanical Diagram
