Meanwell 240W Constant Voltage and Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell HBG-240P
Brand Meanwell
Details

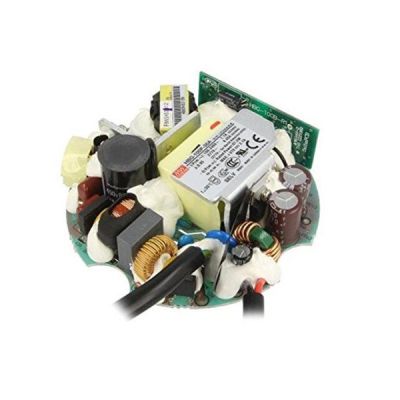

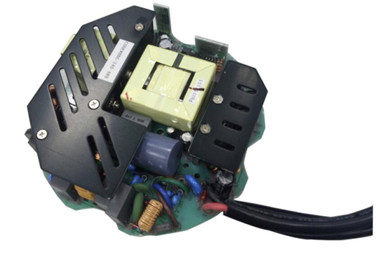

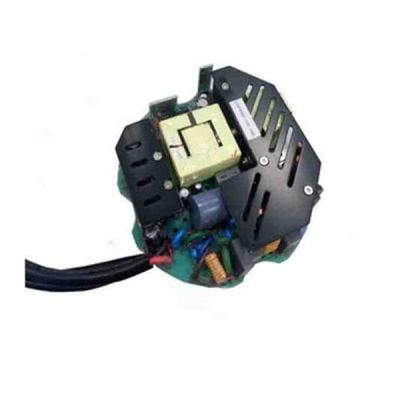

Meanwell HBG-240P Series is a 240W AC/DC PCB type LED driver highlighting the circular shape design. The entire series operates from 90~ 305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Since the high efficiency reaches up to 93.5% with no fan design, HBG-240P is able to work for -40℃ ~ +45℃under free air convection. Apart from them, it is equipped with various function options such as dimming methodology. Considering its long lifetime, high efficiency and excellent quality, Meanwell HBG-240P series is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HBG-240P Meanwell HBG-240P price and specs ac dc led driver 240w power supply ycict

Meanwell HBG-240P Series Encoding

HBG Series Name
240 Rated Wattage
P PCB Type
36 Rate output voltage ( 36/48/60v)
A Function options
Type Function Note
A lo adjustable through built-in potentiometer In stock
B 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) In stock

Meanwell HBG-240P Series Model Specifications

Model HBG-240P-36  HBG-240P-48  HBG-240P-60
OUTPUT DC VOLTAGE 36V 48V 60V
CONSTANT CURRENT REGION 21.6-36V 28.8-48V 36-60V
RATED CURRENT 6.7A 5A 4A
RATED POWER 241.2W 240W 240W
RIPPLE & NOISE (max.) 250mVp-p 250mVp-p 350mVp-p
CURRENT ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
4.0-6.7A 3-5A 2.4-4.0A
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 2500ms, 120ms / 115VAC 500ms, 120ms / 230VAC
HOLD UP TIME (Typ.) 15ms/115VAC,230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.94/230VAC, PF>=0.9/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  92.50% 93.00% 93.50%
AC CURRENT 2.8A / 115VAC 1.4A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION Standby power consumption <0.5W for B-Type A-Type please refer to Note.8
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 43-52V 52-63V 62-85V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Ta=-40 ~ +45 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load >=75%) ; BS EN/EN61000-3-3, GB17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
Others MTBF 2290.4K hrs min. Telcordia SR-332 (Bellcore) 175.1Khrs min. MIL-HDBK-217F (25)
DIMENSION Refer to mechanical specification
PACKING 0.62Kg; 20pcs/13.4Kg/1.11CUFT

Meanwell HBG-240P Series Features

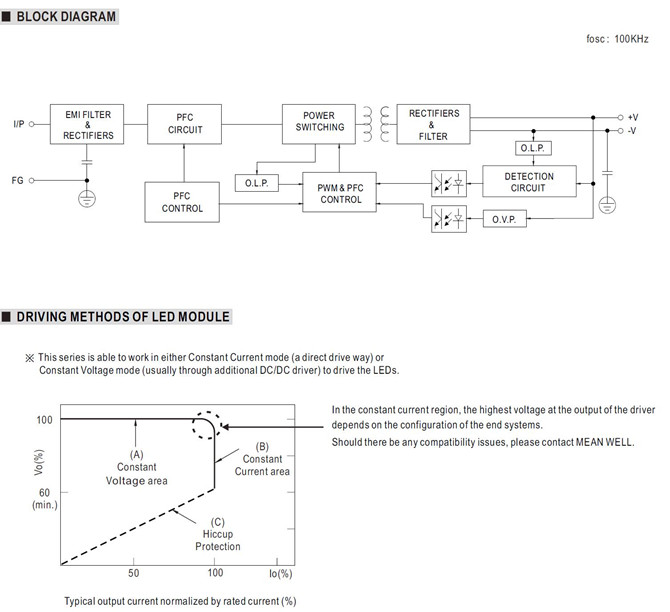

l  Constant Voltage and Constant Current mode output

l  Circular shape PCB type design

l  Built-in active PFC function

l  Function options: output adjustable via potentiometer;3 in 1 dimming

l  Typical lifetime>50000 hours

l  5 years warranty

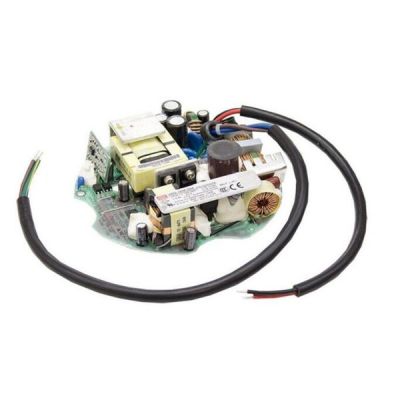

Meanwell HBG-240P Meanwell HBG-240P series price and specs ac dc led driver 240w power supply ycict

Meanwell HBG-240P Series Applications

l  LED bay lighting

l  LED down lighting

l  LED spot lighting

l  LED mining lighting

l  LED stage lighting

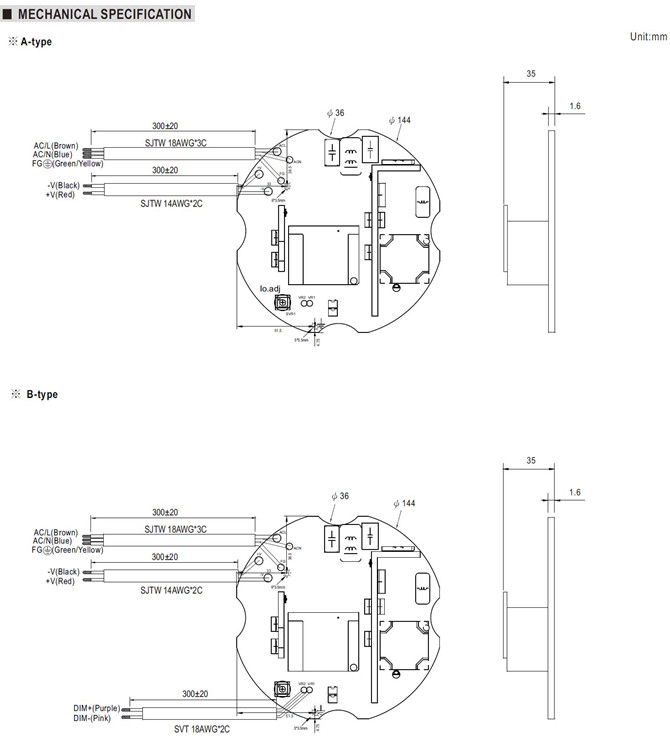

Meanwell HBG-240P Series Mechanical Diagram

Meanwell HBG-240P series meanwell hbg-240p price and specs new and original ac dc led driver ycict

Meanwell HBG-240P Series Mechanical Diagram Meanwell HBG-240P Series series price and specs ac dc led driver ycict
