HBG-240P-60
46.37
Details

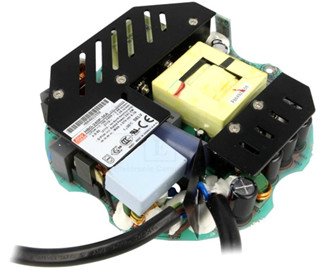

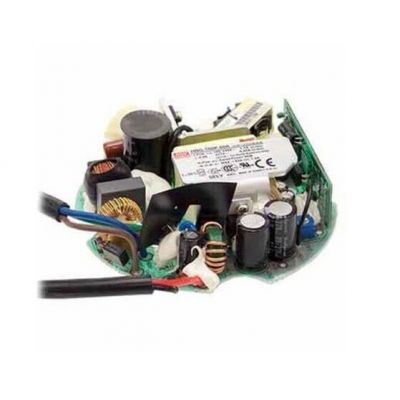

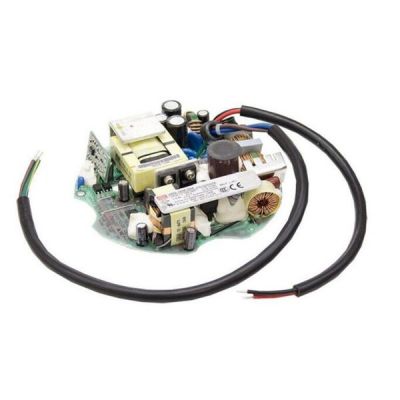

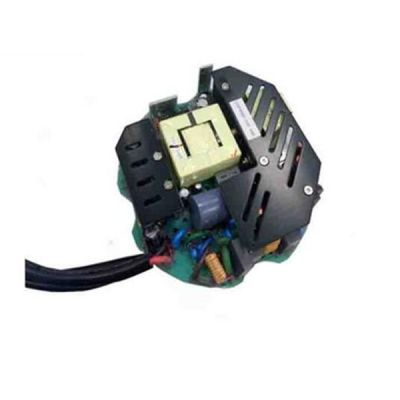

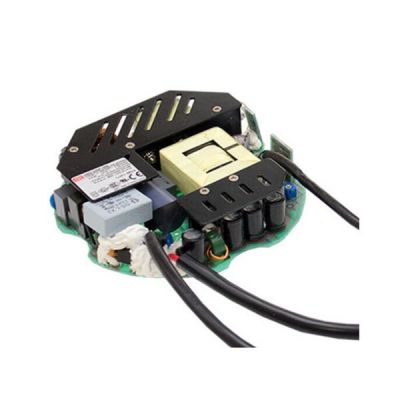

Meanwell HBG-240P-60 is a 240W AC/DC PCB type LED driver with 60V36-60V4A240W350mVp-p2.4-4.0A±2.0%±0.5%±0.5%. The model is designed the circular shape, and work from 90~ 305VAC. What’s more, it offers the dual mode constant voltage and constant current output models with rated voltage 60V. With the high efficiency up to 93.5% and fanless design, HBG-240P-60 is able to operate for -40℃ ~ +45℃under free air convection. Additionally, the unit is equipped with various function options such as dimming methodology. In light of its long lifetime, high efficiency and excellent quality, Meanwell HBG-240P-60 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-240P-60 Encoding
| HBG | Series Name |
| 240 | Rated Wattage |
| P | PCB Type |
| 60 | Rate output voltage ( 36/48/60v) |
| A | Function options |
| Type | Function | Note |
| A | lo adjustable through built-in potentiometer | In stock |
| B | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
Meanwell HBG-240P-60 Specifications
| Model | HBG-240P-60 □ | |
| OUTPUT | DC VOLTAGE | 60V |
| CONSTANT CURRENT REGION | 36-60V | |
| RATED CURRENT | 4A | |
| RATED POWER | 240W | |
| RIPPLE & NOISE (max.) | 350mVp-p | |
| CURRENT ADJ. RANGE | ||
| 2.4-4.0A | ||
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2500ms, 120ms / 115VAC 500ms, 120ms / 230VAC | |
| HOLD UP TIME (Typ.) | 15ms/115VAC,230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.94/230VAC, PF>=0.9/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT | 2.8A / 115VAC 1.4A / 230VAC 1.2A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B-Type A-Type please refer to Note.8 | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 62-85V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load >=75%) ; BS EN/EN61000-3-3, GB17743, GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020 | |
| Others | MTBF | 2290.4K hrs min. Telcordia SR-332 (Bellcore) 175.1Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | Refer to mechanical specification | |
| PACKING | 0.62Kg; 20pcs/13.4Kg/1.11CUFT | |
Meanwell HBG-240P-60 Features
l 5 years warranty
l Built-in active PFC function
l Circular shape PCB type design
l Typical lifetime>50000 hours
l Constant Voltage and Constant Current mode output
l Function options: output adjustable via potentiometer;3 in 1 dimming
Meanwell HBG-240P-60 Applications
l LED bay lighting
l LED down lighting
l LED spot lighting
l LED mining lighting
l LED stage lighting
Meanwell HBG-240P-60 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
