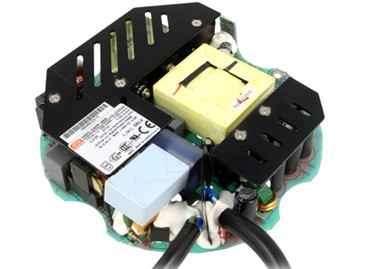

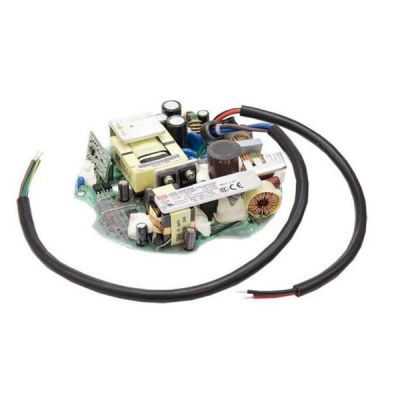

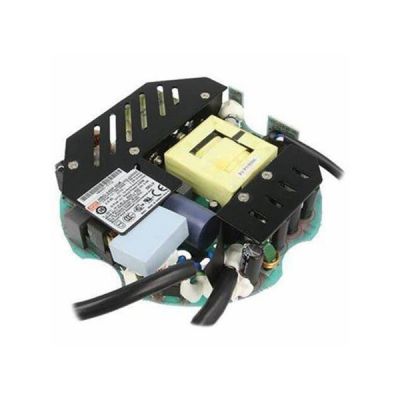

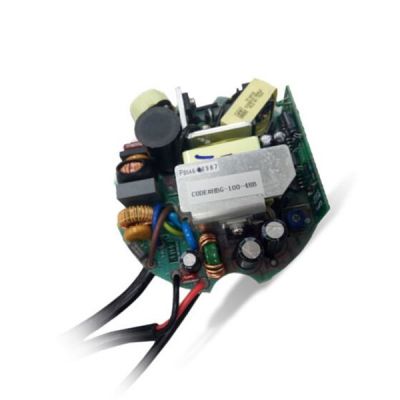

HBG-240P-36
45.28
Details
Meanwell HBG-240P-36 is a 240W AC/DC PCB type LED driver with 36V21.6-36V6.7A241.2W250mVp-p4.0-6.7A±2.0%±0.5%±0.5%. The product features the circular shape design, and operates from 90~ 305VAC. At the same time, it offers the dual mode constant voltage and constant current output models with rated voltage 36V. As the high efficiency reaches up to 93.5% and no fan design, HBG-240P-36 is able to work for -40℃ ~ +45℃under free air convection. In addition to them, the unit is supplied with various function options such as dimming methodology. Thanks to its long lifetime, high efficiency and excellent quality, Meanwell HBG-240P-36 serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-240P-36 Encoding
| HBG | Series Name |
| 240 | Rated Wattage |
| P | PCB Type |
| 36 | Rate output voltage ( 36/48/60v) |
| A | Function options |
| Type | Function | Note |
| A | lo adjustable through built-in potentiometer | In stock |
| B | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
Meanwell HBG-240P-36 Specifications
| Model | HBG-240P-36 □ | |
| OUTPUT | DC VOLTAGE | 36V |
| CONSTANT CURRENT REGION | 21.6-36V | |
| RATED CURRENT | 6.7A | |
| RATED POWER | 241.2W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |
| 4.0-6.7A | ||
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2500ms, 120ms / 115VAC 500ms, 120ms / 230VAC | |
| HOLD UP TIME (Typ.) | 15ms/115VAC,230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.94/230VAC, PF>=0.9/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT | 2.8A / 115VAC 1.4A / 230VAC 1.2A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B-Type A-Type please refer to Note.8 | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 43-52V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load >=75%) ; BS EN/EN61000-3-3, GB17743, GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020 | |
| Others | MTBF | 2290.4K hrs min. Telcordia SR-332 (Bellcore) 175.1Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | Refer to mechanical specification | |
| PACKING | 0.62Kg; 20pcs/13.4Kg/1.11CUFT | |
Meanwell HBG-240P-36 Features
l Typical lifetime>50000 hours
l 5 years warranty
l Constant Voltage and Constant Current mode output
l Circular shape PCB type design
l Built-in active PFC function
l Function options: output adjustable via potentiometer;3 in 1 dimming
Meanwell HBG-240P-36 Applications
l LED bay lighting
l LED down lighting
l LED spot lighting
l LED mining lighting
l LED stage lighting
Meanwell HBG-240P-36 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
