HBG-240-60
59.97
Details

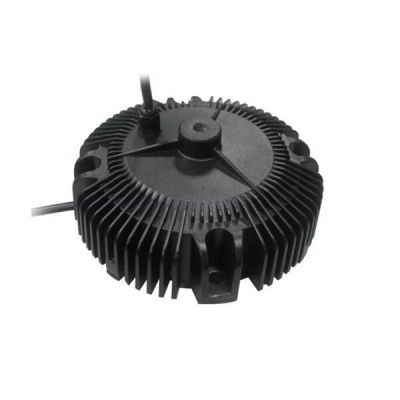

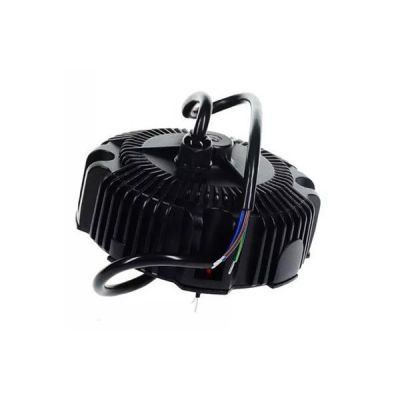

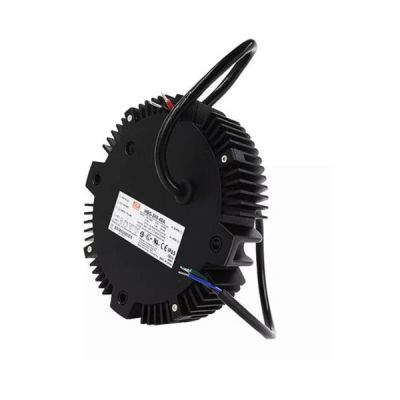

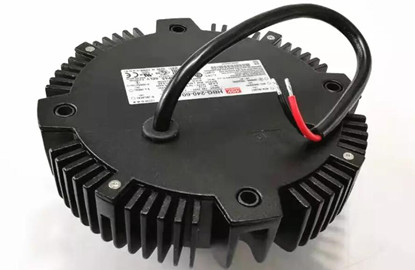

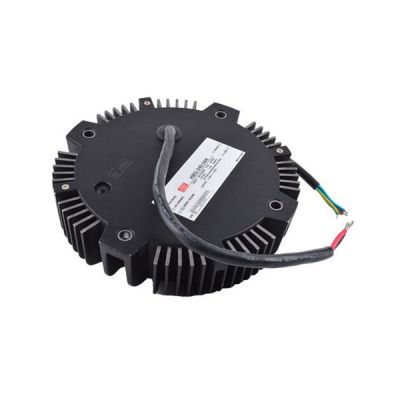

Meanwell HBG-240-60 is a 240W AC/DC LED driver with 60V36-60V42-60V4A240W350Vp-p2.4-4A±2.0%±0.5%±0.5%. It features the circular shape design, and work from 90 ~305VAC. At the same time, the product offers the dual modes constant voltage and constant current output models with the rated voltage 60V. With the efficiency reaching high up to 93.5% and no fan design, Meanwell HBG-240-60 is able to operate for -40℃ ~ +75℃ case temperature under free air convection. Moreover, the metal housing design and IP67/IP65 ingress protection level permit it to fit both indoor and outdoor applications. In addition to them, the unit is equipped with various function options such as dimming methodologies. As a result of its longevity, high efficiency and excellent quality, Meanwell HBG-240-60 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-240-60 Encoding
| HBG | Series Name |
| 240 | Rated Wattage |
| 60 | Rated Output Voltage (24V/36/48/60V) |
| A | Function Mode Option |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function(1~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer with 3 in 1 dimming function | In stock |
| DA | IP67 | DALI control technology | In stock |
Meanwell HBG-240-60 Specifications
| Model | HBG-240-60 □ | |
| OUTPUT | DC VOLTAGE | 60V |
| CONSTANT CURRENT REGION | 36-60V | |
| CONSTANT CURRENT REGION (for DA Type only) |
42-60V | |
| RATED CURRENT | 4A | |
| RATED POWER | 240W | |
| RIPPLE & NOISE (max.) | 350Vp-p | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type (via built-in potentiometer) | |
| 2.4-4A | ||
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms,120ms /230VAC 2500ms,120ms /115VAC | |
| HOLD UP TIME (Typ.) | 15ms /115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC,230VAC; at load>=80%/277VAC) | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT | 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION |
Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note.9 |
|
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 62-85V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +75℃(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+75℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.1,GB19510.14, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 or IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=75%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020 | |
| Others | MTBF | 1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | ψ191.5mm *69mm (D * H) | |
| PACKING | 2.1Kg; 8pcs/18.3Kg/2.09CUFT | |
Meanwell HBG-240-60 Features
l 5 years warranty
l Built-in active PFC function
l Typical lifetime>50000 hours
l Circular metal housing with class I design
l IP67/IP65 rating for indoor or outdoor installations
l Constant Voltage+ Constant Current mode output
l Function options: output adjustable via potentiometer;3 in 1 dimming; DALI
l Suitable for LED high/low bay lighting, stage lighting and spot lighting
Meanwell HBG-240-60 Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting
Meanwell HBG-240-60 Mechanical Diagram
