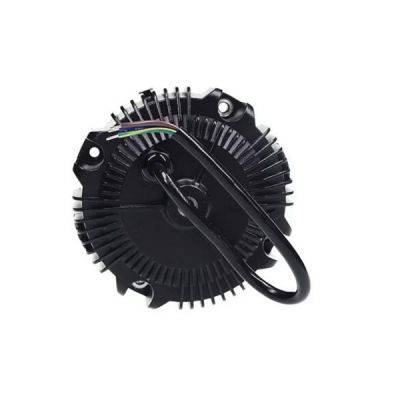

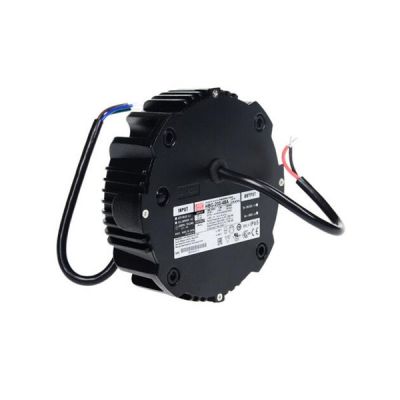

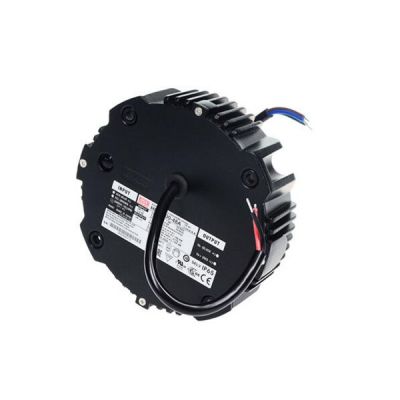

Meanwell HBG-200 Series is a 200W AC/DC LED driver featuring the circular shape design. The entire series operates from 90 ~305 VAC. And as the same time, it provides the dual modes constant voltage and constant current output models with different rated voltage between 36V and 60V. Since the efficiency reaches high up to 93.5% with the fanless design, HBG-200 is able to work for -40℃ ~ +85℃ case temperature under free air convection. Apart from them, The metal housing design and IP67/IP65 ingress protection level allows them to meet with both indoor and outdoor applications. Moreover, it is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent quality, Meanwell HBG-200 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-200 Series Encoding
| HBG | Series Name |
| 200 | Rated Wattage |
| 36 | Rated Output Voltage (36/48/60V) |
| A | Function Mode Option |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed | By request |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function(1~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer with 3 in 1 dimming function | In stock |
| DA | IP67 | DALI control technology | By request |
Meanwell HBG-200 Series Model Specifications
| Model | HBG-200-36 □ | HBG-200-48 □ | HBG-200-60 □ | |
| OUTPUT | DC VOLTAGE | 36V | 48V | 60V |
| CONSTANT CURRENT REGION | 21.6-36V | 28.8-48V | 36-60V | |
| RATED CURRENT | 5.5A | 4.1A | 3.3A | |
| RATED POWER | 198W | 196.8W | 198W | |
| RIPPLE & NOISE (max.) | 250Vp-p | 250Vp-p | 350Vp-p | |
| CURRENT ADJ. RANGE | Adjustable for A-Type and AB-Type (via built-in potentiometer) | |||
| 3.3-5.5A | 2.46-4.1A | 1.98-3.3A | ||
| VOLTAGE TOLERANCE | ±2.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±1.0% | |||
| SETUP, RISE TIME | 2500ms,200ms /115VAC 500ms,200ms /230VAC | |||
| HOLD UP TIME (Typ.) | 12ms /115VAC, 230VAC | |||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127~417VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load | |||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC) | |||
| EFFICIENCY (Typ.) | 92.00% | 93.00% | 93.50% | |
| AC CURRENT | 1.9A / 115VAC 1A / 230VAC 0.9A / 277VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 85A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||
| NO LOAD / STANDBY POWER CONSUMPTION |
Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note.8 |
|||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||
| Constant current limiting, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Hiccup mode or constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 41-47V | 54 ~ 62V | 65-75V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP. | Tcase=+85℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved | ||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA type only | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17625.1, GB17743,EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020 | |||
| Others | MTBF | 2042.7K hrs min. Telcordia SR-332 (Bellcore) ;207.4K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | Refer to mechanical specification | |||
| PACKING | 1.53Kg; 8pcs/13.8Kg/1.61CUFT | |||
Meanwell HBG-200 Series Features

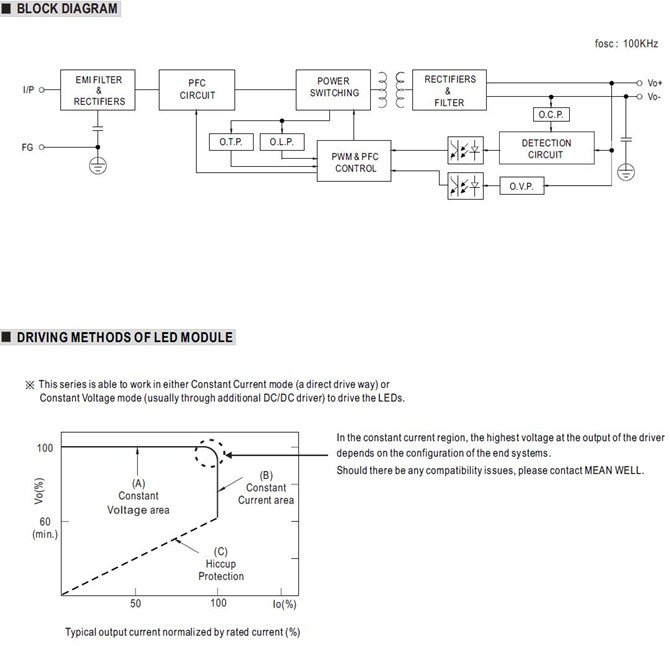

l Constant Voltage + Constant Current mode output
l Circular metal housing with class I design
l Built-in active PFC function
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; DALI
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell HBG-200 Series Applications
l LED high/low bay lighting
l LED canopy lighting
l LED stage lighting
l LED spot lighting
l Outdoor architectural lighting system
l Type “HL" for use in Class l, Division 2hazardous (Classified) location

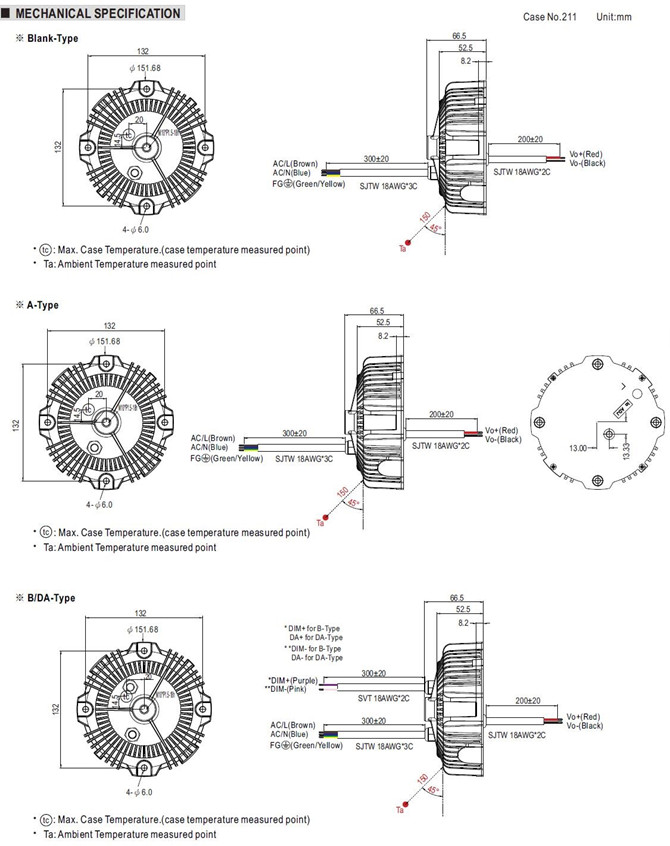

Meanwell HBG-200 Series Mechanical Diagram
