HBG-160-24
50.14
Details

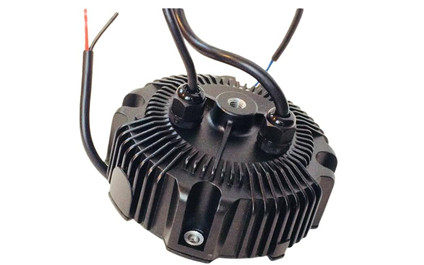

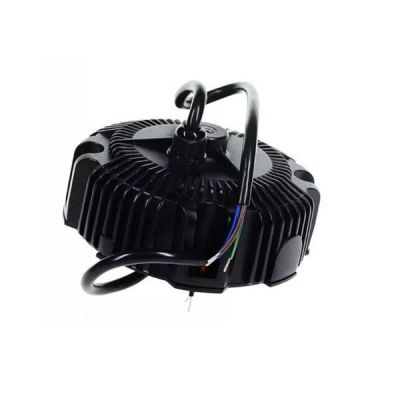

Meanwell HBG-160-24 is a 160W AC/DC LED driver with 24V14.4-24V6.5A156W200Vp-p3.9-6.5A±2.0%±0.5%±1.0%. The product features the circular shape design and operates from 90 ~305VAC. Meanwhile, it provides the dual modes constant voltage and constant current output models with the rated voltage 24V. As the efficiency goes high up to 93.5% with the fanless design, HBG-160-24 is able to work for -40℃ ~ +85℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP65 ingress protection level permit it to meet both indoor and outdoor applications. What’s more, the unit is equipped with various function options such as dimming methodologies. Due to its longevity, high efficiency and excellent quality, Meanwell HBG-160-24 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-160-24 Encoding
| HBG | Series Name |
| 160 | Rated Wattage |
| 24 | Rated Output Voltage (24/36/48/60V) |
| A | Function Mode Option |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed | By request |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function(1~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer with 3 in 1 dimming function | In stock |
| DA | IP67 | DALI control technology | By request |
Meanwell HBG-160-24 Specifications
| Model | HBG-160-24 □ | |
| OUTPUT | DC VOLTAGE | 24V |
| CONSTANT CURRENT REGION | 14.4-24V | |
| RATED CURRENT | 6.5A | |
| RATED POWER | 156W | |
| RIPPLE & NOISE (max.) Note | 200Vp-p | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type (via built-in potentiometer) | |
| 3.9-6.5A | ||
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC | |
| HOLD UP TIME (Typ.) | 12ms /115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127~417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT | 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION |
Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note.9 |
|
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 28-34V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40~+85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE”section |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB19510.1,GB19510.14, IP65 or IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020 | |
| Others | MTBF | 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | ψ151.68mm *66.5mm (D * H) | |
| PACKING | 1.53Kg; 8pcs/13.8Kg/1.37CUFT | |
Meanwell HBG-160-24 Features
l Typical lifetime> 50000 hours
l 5 years warranty
l Constant Voltage + Constant Current mode output
l Circular metal housing with class I design
l Built-in active PFC function
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; DALI
Meanwell HBG-160-24 Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting
l Type HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell HBG-160-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
