HBG-100-48
33.35
Details

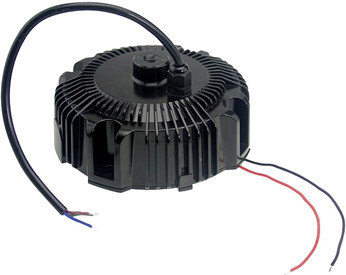

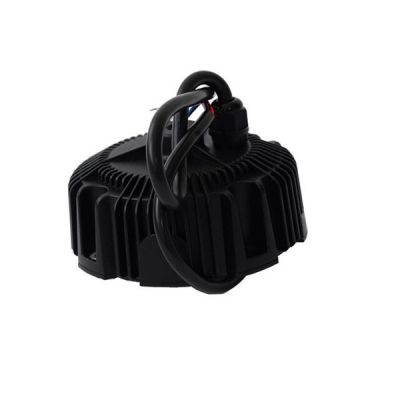

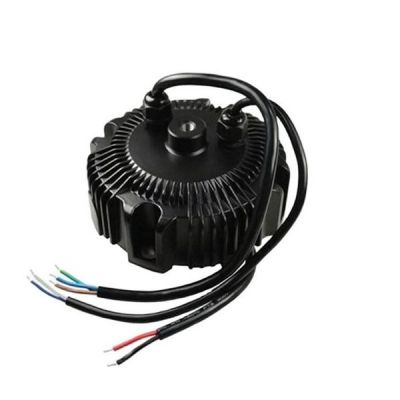

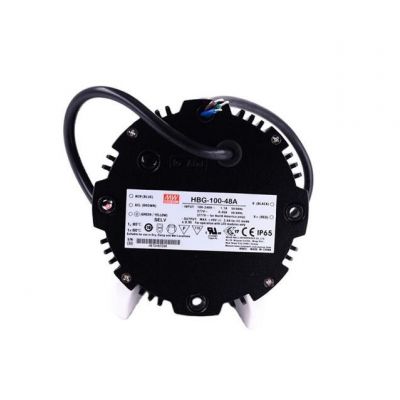

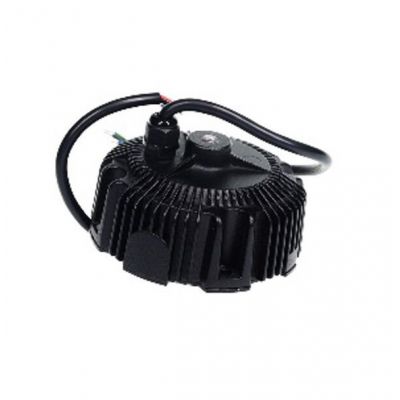

Meanwell HBG-100-48 is a 100W AC/DC LED driver with 2A96W28.8-48V49V1.2-2A±5.0%2000ms/115VAC500ms/230VAC. It stands out with the circular shape design and operate from 90~305VAC. Meanwhile, the product provides the constant current output with the rated voltage 48V. Since the efficiency goes high up to 91.5% and the fanless design, HBG-100-48 could work for -40℃~ +85℃ case temperature under free air convection. In addition, the metal housing design and IP67/IP65 ingress protection level allow it to fit both indoor and outdoor applications. What’s more, the model is equipped with various function options such as dimming methodologies. In light of its longevity, high efficiency and excellent quality, Meanwell HBG-100-48 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-100-48 Encoding
| HBG | Series Name |
| 100 | Rated Wattage |
| 48 | Rated Output Voltage (24/36/48/60v) |
| A | Function Mode Option |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed | By request |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function(1~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer with 3 in 1 dimming function | In stock |
| DA | IP67 | DALI control technology | By request |
Meanwell HBG-100-48 Specifications
| Model | HBG-100-48 □ | |
| OUTPUT | RATED CURRENT | 2A |
| RATED POWER | 96W | |
| CONSTANT CURRENT REGION | 28.8-48V | |
| OPEN CIRCUIT VOLTAGE(max.) | 49V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type (via built-in potentiometer) | |
| 1.2-2A | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 2000ms / 115VAC 500ms / 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT | 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION |
Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note. 7 |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting | ||
| OVER VOLTAGE | 54-63V | |
| Shut down o/p voltage re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 or IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020 | |
| Others | MTBF | 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | ψ130mm *66.5mm (D * H) | |
| PACKING | 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type) | |
Meanwell HBG-100-48 Features
l 5 years warranty
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Constant Current mode output
l Circular metal housing with class I design
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3in 1 dimming; DALI
Meanwell HBG-100-48 Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting
l Type HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell HBG-100-48 Mechanical Diagram
