GST40A15-P1J
8.99
Details

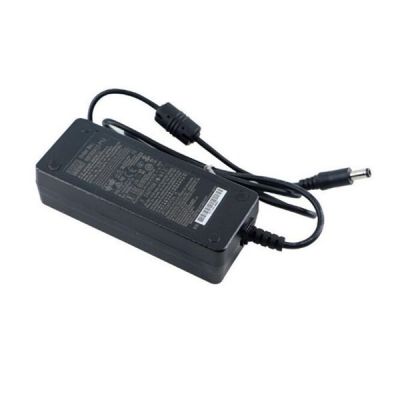

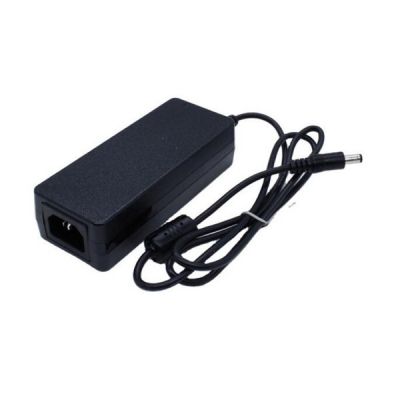

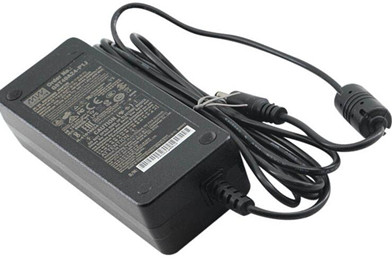

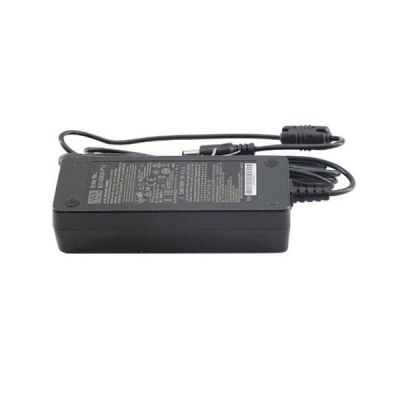

Meanwell GST40A15 is 40W desktop style single-output green adaptor with 15V2.67A0-2.67A40W120mVp-p. It is a classⅠpower unit (with FG) with standard IEC320-C14 AC inlet. At the same time, the unit adopts input range from 90VAC to 264VAC offering output voltages 15VDC. So it could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches up high to 92% and extremely low no-load power consumption below 0.075W, Meanwell GST40A15 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. The model also utilizes the 94V-0 flame retardant plastic case, certified for the international safety regulations. As a result of its good quality, high reliability, and long lifespan, Meanwell GST40A15 serves as a high performance power supply solution for various applications.
Meanwell GST40A15-P1J Encoding
| GST | Series Name |
| 40 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 15 | Output Voltage |
| P1J | DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST40A15-P1J Specifications
| ORDER NO. | GST40A15-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST40A15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 2.67A | |
| CURRENT RANGE | 0-2.67A | |
| RATED POWER (max) | 40W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 15ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115AC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 15.7-20.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN//EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 3493.6K hrs min. Telcordia SR-332 (Bellcore) ; 728.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 125*50*31.5mm (L*W*H) | |

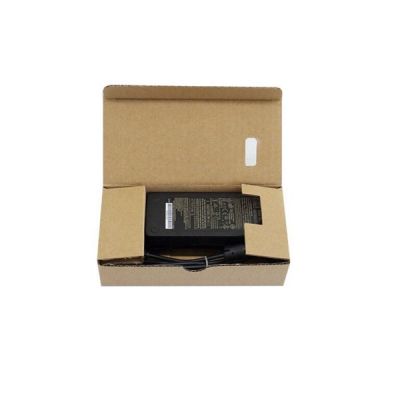

| PACKING | 0.28Kg; 40pcs/12.02Kg/1.04CUFT | |
Meanwell GST40A15-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l Fully enclosed plastic case
l Energy efficiency Level VI
l Universal AC input/ Full range
l 3 pole AC inlet IEC320-C14, Class I power unit
l No load power consumption< 0.075W
l Protections: Short circuit/Overload /Over voltage
l -30℃~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
Meanwell GST40A15-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell GST40A15-P1J Mechanical Diagram
