GST40A
8.68
Details

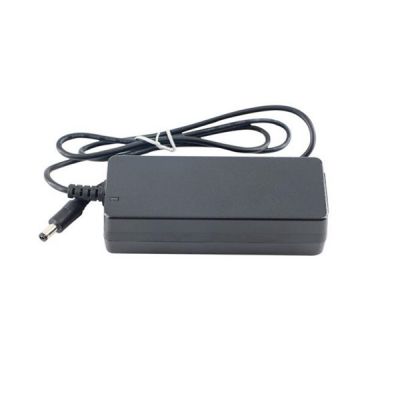

Meanwell GST40A Series is 40W desktop style single-output green adaptor. The product is a classⅠpower unit (with FG) with standard IEC320-C14 AC inlet, and adopts input range from 90VAC to 264VAC. At the same time, GST40A supplies different models with output voltages ranging between 5VDC and 48VDC, which can satisfy the demands for various types of consumer electronic devices. With the efficiency reaching up to 92% and extremely low no-load power consumption below 0.075W, Meanwell GST40A complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. In addition, the entire series utilizes the 94V-0 flame retardant plastic case, certified for the international safety regulations. Considering its good quality, high reliability, and long lifespan, Meanwell GST40A Series serves as a high performance power supply solution for various applications.
Meanwell GST40A Series Encoding
| GST | Series Name |
| 40 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 05 | Output Voltage |
| P1J | DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST40A Series Model Specifications
| ORDER NO. | GST40A05-P1J | GST40A07-P1J | GST40A09-P1J | GST40A12-P1J | GST40A15-P1J | GST40A18-P1J | GST40A24-P1J | GST40A48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST40A05 | GST40A07 | GST40A09 | GST40A12 | GST40A15 | GST40A18 | GST40A24 | GST40A48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 5A | 5.34A | 4.45A | 3.34A | 2.67A | 2.22A | 1.67A | 0.84A | |
| CURRENT RANGE | 0-5A | 0-5.34A | 0-4.45A | 0-3.34A | 0-2.67A | 0-2.22A | 0-1.67A | 0-0.84A | |
| RATED POWER (max) | 25W | 40W | 40W | 40W | 40W | 40W | 40W | 40W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ±2.5% | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 15ms / 115VAC at full load | ||||||||
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 84.50% | 87.50% | 88.50% | 89.50% | 90.00% | 90.00% | 91.00% | 92.00% | |
| AC CURRENT | 1A / 115VAC 0.5A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 35A / 115AC 65A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 5.2-6.8V | 7.8-10.2V | 9.4-12.2V | 12.6-16.2V | 15.7-20.3V | 18.9-24.3V | 25.2-32.4V | 50.4-64.V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN//EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
|||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 | Class B | |||||||
| Radiated emission | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2,GB9254 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | |||||||
| EMC IMMUNITY | BS EN/EN55035 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 1KV/Line-Line , 2KV/Line-FG | |||||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 2, 3A/m | |||||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level 2, 3V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 2, 1KV | |||||||
| Voltage dips , interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
|||||||
| Others | MTBF | 3493.6K hrs min. Telcordia SR-332 (Bellcore) ; 728.2K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 125*50*31.5mm (L*W*H) | ||||||||
| PACKING | 0.28Kg; 40pcs/12.02Kg/1.04CUFT | ||||||||
Meanwell GST40A Series Features
l Global certificates
l Universal AC input/ Full range
l 3 pole AC inlet IEC320-C14, Class I power unit
l No load power consumption< 0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
l Protections: Short circuit/Overload /Over voltage
l Fully enclosed plastic case
l Pass LPS
l -30℃~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GST40A Series Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment

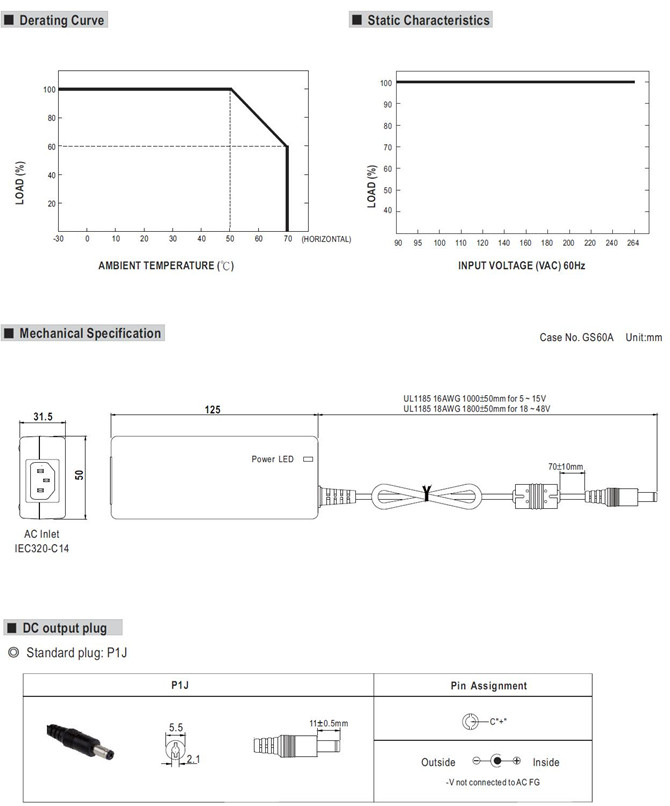

Meanwell GST40A Series Mechanical Diagram
