GST36E24-P1J
13.87
Details

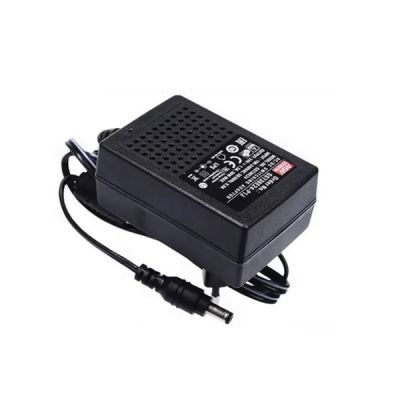

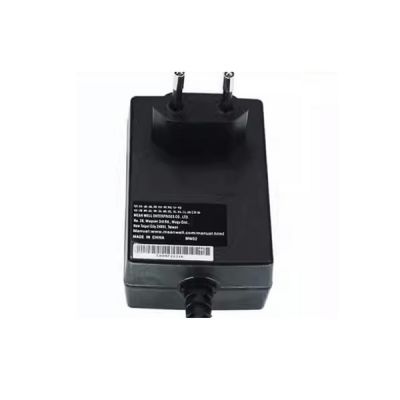

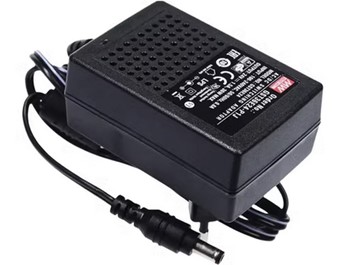

Meanwell GST36E24 is a 36W AC-DC Green Industrial Adaptor with 24V1.5A0-1.5A36W150mVp-p. It stands out with single-output, wall-mounted style and high reliability. The product is a class II power unit (no FG) with a 2- Pin standard European AC power plug. At the same time, GST36E24 adopts the input range from 85VAC to 264VAC, provided with output voltage 24VDC. Therefore, it could meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.075W, Meanwell GST36E24 is compliant with EU Erp and Code of Conduct (CoC) Version 5. Apart from them, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit also utilizes the 94V-0 flame retardant plastic case, offering double insulation, which effectively prevents electrical shock. GST36E24 is certified for the international safety regulations. In view of its high safety, high quality and high performance, Meanwell GST36E24 serves as an ideal power supply solution for various types of consumer electronic devices.
Meanwell GST36E24-P1J Encoding
| GST | Series Name |
| 36 | Rated Wattage |
| E | European 2 pin AC Plug |
| 24 | Output Voltage |
| P1J | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GST36E24-P1J Specifications
| ORDER NO. | GST36E24-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST36E24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 1.5A | |
| CURRENT RANGE | 0-1.5A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.50% | |
| AC CURRENT | 0.8A / 115VAC 0.45A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 209g; 60pcs/13.5Kg/1.15CUFT | |
Meanwell GST36E24-P1J Features
l Pass LPS
l Global certificates
l 3 years warranty
l Fully enclosed plastic case
l Energy efficiency Level VI
l LED indicator for power on
l Universal AC input/Full range
l 2 pole EURO plug, Class II power unit
l No load power consumption< 0.075W
l Comply with EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l -30℃~+70℃ wide range working temperature
l Various DC plug quick adapter accessory available
Meanwell GST36E24-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST36E24-P1J Mechanical Diagram
