GST36B09-P1J
9.61
Details

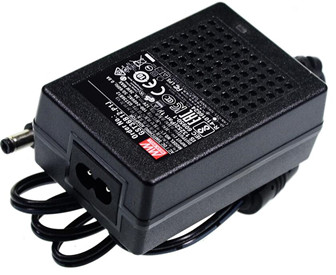

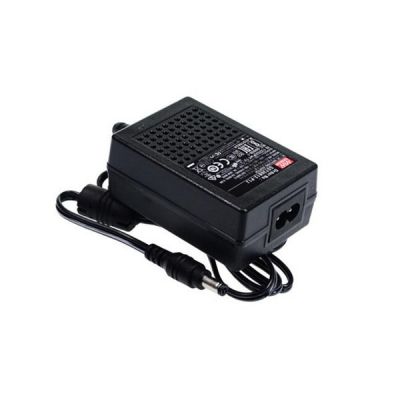

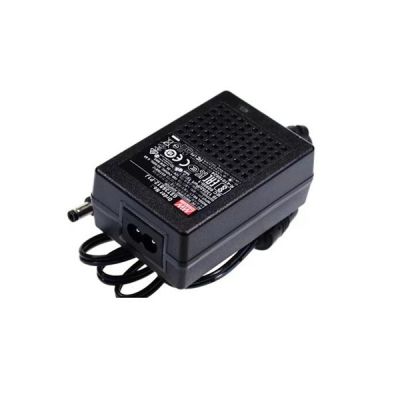

Meanwell GST36B09 is a highly reliable 36W green adaptor with 9V3.11A0-3.11A28W90mVp-p. The item highlights desktop style and single-output. It is a class II power unit (no FG), equipped with standard IEC320-C8 AC inlet. At the same time, GST36B09 adopts input range from 85VAC to 264VAC, and provided with output voltages 9VDC. Therefore, that can meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 90%, and extremely low no-load power consumption below 0.075W, GST36B09 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP, and Code of Conduct (CoC) Version 5. What’s more, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. In addition, GST36B09 utilizes the 94V-0 flame retardant plastic case, which offers double insulation that effectively prevents electrical shock. The unit is also certified for the international safety regulations. Thanks to its longevity, high reliability and excellent quality, Meanwell GST36B09 serves as a high performance power supply solution for various applications.
Meanwell GST36B09-P1J Encoding
| GST | Series Name |
| 36 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 9 | Output Voltage |
| P1J | DC Plug Type Р1J: ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST36B09-P1J Specifications
| ORDER NO. | GST36B09-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST36B09 |
| DC VOLTAGE | 9V | |
| RATED CURRENT | 3.11A | |
| CURRENT RANGE | 0-3.11A | |
| RATED POWER | 28W | |
| RIPPLE & NOISE (max.) | 90mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT | 0.8A / 115VAC 0.45A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1,AS/NZS 60950.1,PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 203g; 60pcs/13.2Kg/1.15CUFT | |
Meanwell GST36B09-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l Universal AC input/Full range
l 2 pole AC inlet lEC320-C8, Class II power unit
l No load power consumption< 0.075W
l Energy efficiency Level VI
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l -30~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Meanwell GST36B09-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST36B09-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
