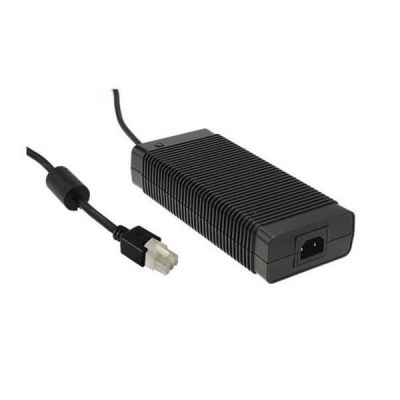

GST360B12-C8P
65.06
Details

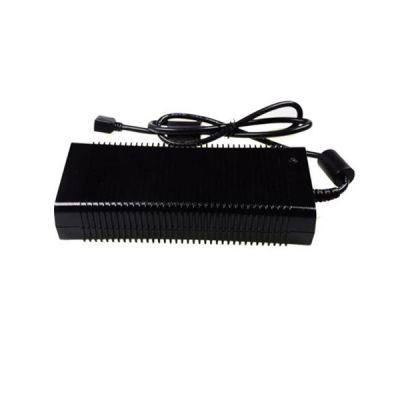

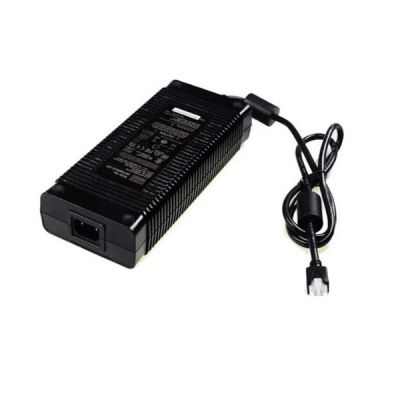

Meanwell GST360B12 is a 360W green highly reliable adaptor with 12V27.5A0-27.5A330W415W120mVp-p. The model features desktop style and single-output. It is a class II power unit (without FG), equipped with standard IEC320-C18 AC inlet. At the same time, GST360B12 adopts the input range from 85VAC to 264VAC, and provided with output voltage 12VDC. Therefore, that can meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 95.0% and extremely low no-load power consumption below 0.5W, Meanwell GST360B12 complies with USA EISA 2007/DoE, Canada NRCan. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. What’s more, the item utilizes the 94V-0 flame retardant plastic case, and certified for the international safety regulations. Due to its long lifetime, high efficiency and excellent quality, Meanwell GST360B12 serves as a high performance power supply solution for various applications.
Meanwell GST360B12-C8P Encoding
| GST | Series Name |
| 360 | Rated Wattage |
| B | IEC320-C18 AC Inlet |
| 12 | Output Voltage |
| C8P DC Connector Type | C8P: Standard model, 8 Pin connector for 12-15V |
| C6P: Standard model, 6 Pin connector for 24-55V | |
| Other Options available by customer requested |
Meanwell GST360B12-C8P Specifications
| ORDER NO. | GST360B12-C8P | |
| OUTPUT | SAFETY MODEL NO. | GST360B12 |
| DC VOLTAGE | 12V | |
| RATED CURRENT | 27.5A | |
| CURRENT RANGE | 0-27.5A | |
| POWER RATED (max) | 330W | |
| POWER Peak (3sec.) | 415W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 8ms / 230VAC 8ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT | 3.8A / 115VAC 2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 95A / 115VAC 120A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current <0.5mA / 260VAC | |
| PROTECTION | OVERLOAD | 135 ~ 155% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V |
||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 2057.2K hrs min. Telcordia SR-332 (Bellcore) ; 265.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*95*46mm (L*W*H) | |
| PACKING | 1.4Kg; 8pcs/12Kg/0.82CUFT | |
Meanwell GST360B12-C8P Features
l 3 years warranty
l Global certificates
l 450W peak power (3 sec.)
l Universal AC input/ Full range
l 2pole AC inlet IEC320-C18, Class ll power unit
l Built-in active PFC function
l No load power consumption<O .5W
l Energy efficiency Level VI
l Comply with international energy-saving standards
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Fanless design with -30~+70℃ working temperature
l Fully enclosed plastic case
l LED indicator for power on
Meanwell GST360B12-C8P Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l 3D printer
l Game console
l Vision mixer
l Power sourcing equipment of PoE
Meanwell GST360B12-C8P Mechanical Diagram
