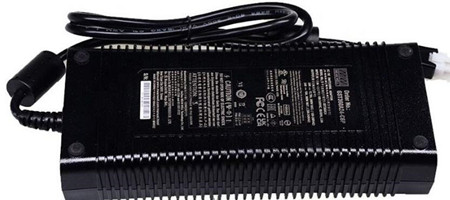

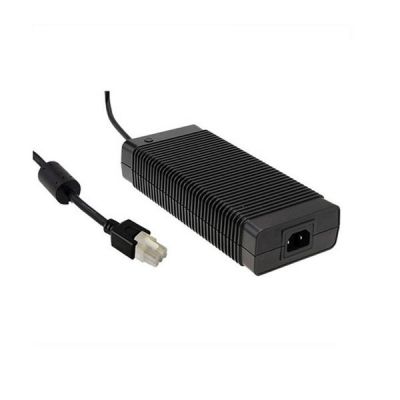

GST360A24-C8P
23.82
Details
Meanwell GST360A24 is a highly reliable 360W green adaptor with 24V15A0-15A360W450W200mVp-p. The model outstands desktop style and single-output It is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, GST360A24 adopts the input range from 85VAC to 264VAC, provided with output voltage 24VDC. Therefore, that can meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 95.0% and extremely low no-load power consumption below 0.5W, GST360A24 is compliant with USA EISA 2007/Do E, Canada NRCan as well. What’s more, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Furthermore, the item utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. In light of its good quality, high reliability and long lifespan, Meanwell GST360A24 serves as a high performance power supply solution for various applications.
Meanwell GST360A24-C8P Encoding
| GST | Series Name |
| 360 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 24 | Output Voltage |
| C8P | C8P: Standard model, 8 Pin connector for 12-15V |
| C6P: Standard model, 6 Pin connector for 24-55V | |
| Other Options available by customer requested |
Meanwell GST360A24-C8P Specifications
| ORDER NO. | GST360A24-C8P | |
| OUTPUT | SAFETY MODEL NO. | GST360A24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 15A | |
| CURRENT RANGE | 0-15A | |
| POWER RATED (max) | 360W | |
| POWER Peak (3sec.) | 450W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 8ms / 230VAC 8ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT | 3.8A / 115VAC 2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 95A / 115VAC 120A / 230VAC | |
| LEAKAGE CURRENT(max.) | 1.5mA / 240VAC | |
| PROTECTION | OVERLOAD | 135 ~ 155% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, BSMI CNS14336, CCC GB4943, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: Short | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 2068.5K hrs min. Telcordia SR-332 (Bellcore) ; 269K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*95*46mm (L*W*H) | |
| PACKING | 1.4Kg; 8pcs/12Kg/0.82CUFT | |
eanwell GST360A24-C8P Features
l 3 years warranty
l Global certificates
l 450W peak power (3 sec.)
l Universal AC input/Full range
l Built-in active PFC function
l No load power consumption<0.5W
l Energy efficiency Level VI
l Fully enclosed plastic case
l LED indicator for power on
l 3 pole AC inlet IEC320-C1 4, Class I power unit
l Comply with international energy-saving standards
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Fanless design with -30~+70℃ working temperature
Meanwell GST360A24-C8P Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l 3D printer
l Game console
l Vision mixer
l Power sourcing equipment of PoE
Meanwell GST360A24-C8P Mechanical Diagram
