GST360A15-C8P
23.59

GST360A15-C8P

$23.59

Meanwell 360W AC-DC High Reliability Industrial Adaptor with 15V22.7A0-22.7A340.5W425W120mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GST360A15-C8P
Brand Meanwell
Details

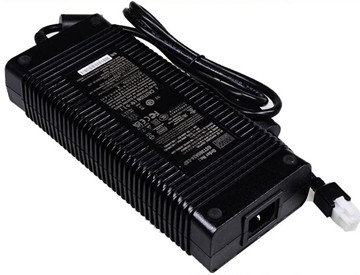

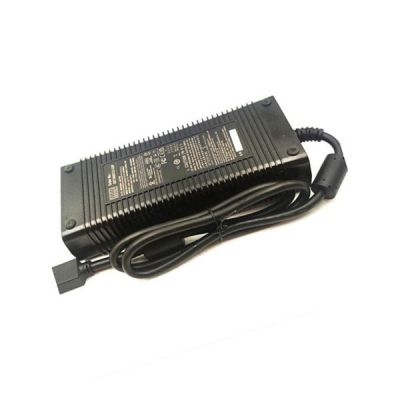

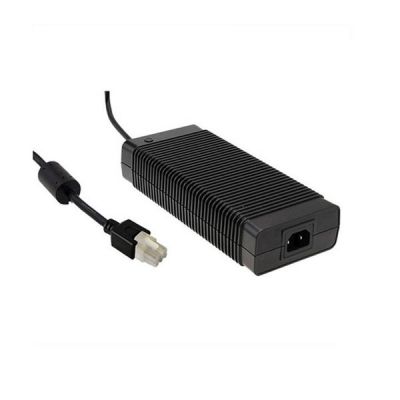

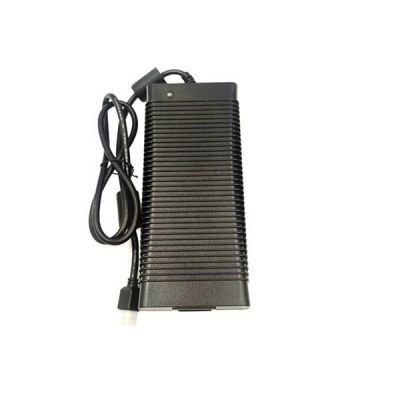

Meanwell GST360A15 is a highly reliable 360W green adaptor with 15V22.7A0-22.7A340.5W425W120mVp-p. It highlights desktop style and single-output The model is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. Meanwhile, GST360A15 adopts the input range from 85VAC to 264VAC, and supplied with output voltage 15VDC. Therefore, that can meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 95.0% and extremely low no-load power consumption below 0.5W, GST360A15 is also compliant with USA EISA 2007/Do E, Canada NRCan. Furthermore, the supreme feature permits the adaptor to save energy when it is either under operating mode or standby mode. Apart from them, the unit utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Thanks to its good quality, high reliability and long lifespan, Meanwell GST360A15 serves as a high performance power supply solution for various applications.

Meanwell GST360A15 Price and Specs AC-DC High Reliability Industrial Adaptor fanless plastic case 360W 22.7A YCICT

Meanwell GST360A15-C8P Encoding

GST Series Name
360 Rated Wattage
A IEC320-C14 AC Inlet
15 Output Voltage
C8P C8P: Standard model, 8 Pin connector for 12-15V
C6P: Standard model, 6 Pin connector for 24-55V
Other Options available by customer requested

Meanwell GST360A15-C8P Specifications

ORDER NO. GST360A15-C8P
OUTPUT SAFETY MODEL NO. GST360A15
DC VOLTAGE 15V
RATED CURRENT 22.7A
CURRENT RANGE 0-22.7A
POWER RATED (max) 340.5W
POWER Peak (3sec.) 425W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
HOLD UP TIME (Typ.) 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 8ms / 230VAC 8ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 92.00%
AC CURRENT 3.8A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.) Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.) 1.5mA / 240VAC
PROTECTION OVERLOAD 135 ~ 155% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, BSMI CNS14336, CCC GB4943, PSE J62368-1, BIS IS13252,
KC 62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: Short
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 2068.5K hrs min. Telcordia SR-332 (Bellcore) ; 269K hrs min. MIL-HDBK-217F (25)
DIMENSION 220*95*46mm (L*W*H)
PACKING 1.4Kg; 8pcs/12Kg/0.82CUFT

Meanwell GST360A15-C8P Features

l  3 years warranty

l  Global certificates

l  450W peak power (3 sec.)

l  Universal AC input/Full range

l  3 pole AC inlet IEC320-C1 4, Class I power unit

l  Built-in active PFC function

l  No load power consumption<0.5W

l  Energy efficiency Level VI

l  Fully enclosed plastic case

l  LED indicator for power on

l  Comply with international energy-saving standards

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Fanless design with -30~+70℃ working temperature

Meanwell GST360A15 Price and Specs 360W AC-DC High Reliability Industrial Adaptor fanless plastic case PFC YCICT

Meanwell GST360A15-C8P Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  3D printer

l  Game console

l  Vision mixer

l  Power sourcing equipment of PoE

Meanwell GST360A15 Price and Specs 360W AC-DC High Reliability Industrial Adaptor fanless plastic case 22.7A YCICT

Meanwell GST360A15-C8P Mechanical Diagram

Meanwell GST360A15 Price and Datasheet 360W AC-DC High Reliability Industrial Adaptor fanless plastic case 22.7A YCICT
