GST360A
23.26

GST360A

As low as $23.26

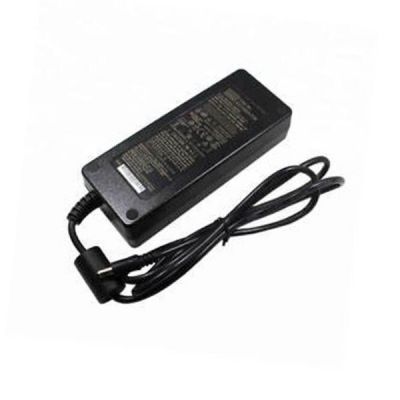

Meanwell 360W AC-DC High Reliability Industrial Adaptor

- +
Availability:In stock
SKU Meanwell GST360A
Brand Meanwell
Details

Meanwell GST360A Series is a highly reliable 360W green adaptor. It features desktop style and single-output The product is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, GST360A adopts the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 55VDC. Therefore, that can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 95.0% and extremely low no-load power consumption below 0.5W, Meanwell GST360A is also compliant with USA EISA 2007/Do E, Canada NRCan. In addition, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. What’s more, the unit utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Considering its good quality, high reliability and long lifespan, Meanwell GST360A Series serves as a high performance power supply solution for various applications.

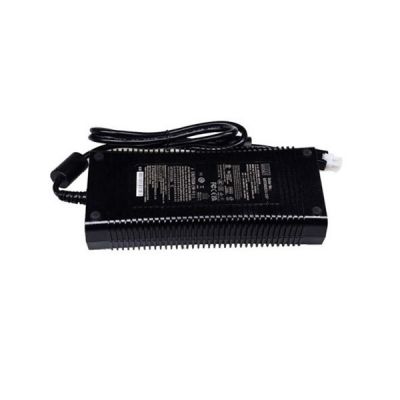

Meanwell GST360A Price and Specs 360W AC-DC High Reliability Industrial Adaptor fanless plastic case with PFC YCICT

Meanwell GST360A Series Encoding

GST Series Name
360 Rated Wattage

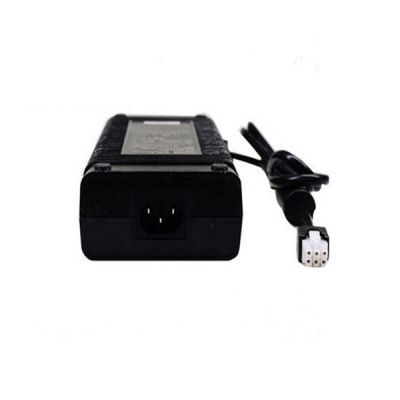

A IEC320-C14 AC Inlet
12 Output Voltage
C8P C8P: Standard model, 8 Pin connector for 12-15V
C6P: Standard model, 6 Pin connector for 24-55V
Other Options available by customer requested

Meanwell GST360A Series Model Specifications

ORDER NO. GST360A12-C8P GST360A15-C8P GST360A24-C8P GST360A36-C8P GST360A48-C8P GST360A55-C8P
OUTPUT SAFETY MODEL NO. GST360A12 GST360A15 GST360A24 GST360A36 GST360A48 GST360A55
DC VOLTAGE 12V 15V 24V 36V 48V 55V
RATED CURRENT 27.5A 22.7A 15A 10A 7.5A 6.55A
CURRENT RANGE 0-27.5A 0-22.7A 0-15A 0-10A 0-7.5A 0-6.55A
POWER RATED (max) 330W 340.5W 360W 360W 360W 360W
POWER Peak (3sec.) 415W 425W 450W 450W 450W 450W
RIPPLE & NOISE (max.) 120mVp-p 120mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p
VOLTAGE TOLERANCE ±5.0% ±5.0% ±3.0% ±3.0% ±2.0% ±2.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±4.0% ±3.0% ±2.0% ±2.0%
HOLD UP TIME (Typ.) 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 8ms / 230VAC 8ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 91.00% 92.00% 93.00% 94.00% 95.00% 95.00%
AC CURRENT 3.8A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.) Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.) 1.5mA / 240VAC
PROTECTION OVERLOAD 135 ~ 155% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, BSMI CNS14336, CCC GB4943, PSE J62368-1, BIS IS13252,
KC 62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: Short
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3V
Voltage dips , interruption BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
Others MTBF 2068.5K hrs min. Telcordia SR-332 (Bellcore) ; 269K hrs min. MIL-HDBK-217F (25)
DIMENSION 220*95*46mm (L*W*H)
PACKING 1.4Kg; 8pcs/12Kg/0.82CUFT

Meanwell GST360A Series Features

l  Global certificates

l  450W peak power (3 sec.)

l  Universal AC input/ Full range

l  3 pole AC inlet IEC320-C1 4, Class I power unit

l  Built-in active PFC function

l  No load power consumption<0.5W

l  Energy efficiency Level VI

l  Comply with international energy-saving standards

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Fanless design with -30~+70℃ working temperature

l  Fully enclosed plastic case

l  LED indicator for power on

l  3 years warranty

Meanwell GST360A Price and Specs 360W AC-DC High Reliability Industrial Adaptor fanless plastic case with PFC YCICT

Meanwell GST360A Series Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  3D printer

l  Game console

l  Vision mixer

l  Power sourcing equipment of PoE

Meanwell GST360A Price and Specs 360W AC-DC High Reliability Industrial Adaptor fanless plastic case PFC YCICT

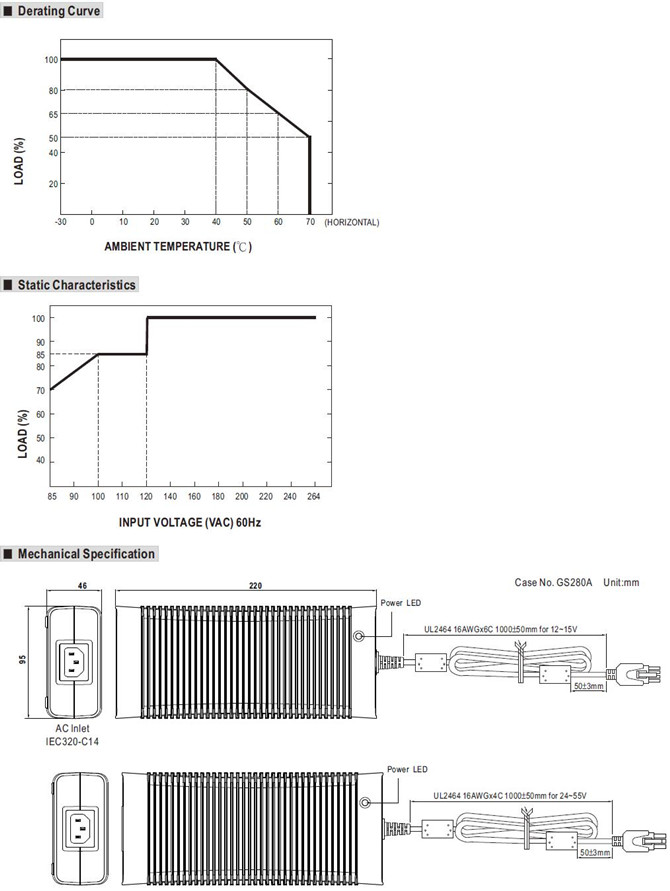

Meanwell GST360A Series Mechanical Diagram

Meanwell GST360A Price and Specs 360W AC-DC High Reliability Industrial Adaptor No fan plastic case with PFC YCICT
