GST280A15-C6P
21.73
Details

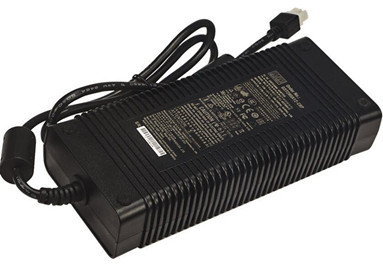

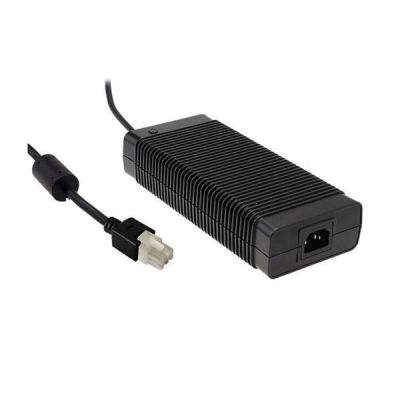

Meanwell GST280A15 is a 280W single-output green adaptor with 15V17A0-17A255W120mVp-p. The item is a class I desktop style power unit (with FG), equipped with standard IEC320-C14 AC inlet. It adopts the input range from 85VAC to 264VAC with output voltage 15VDC. Therefore, this can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 94% and the extremely low no-load power consumption below 0.5W, GST280A15 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP. Moreover, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. Additionally, the product utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Thanks to its good quality, high reliability and long lifespan, Meanwell GST280A15 serves as a high performance power supply solution for various applications.
Meanwell GST280A15-C6P Encoding
| GST | Series Name |
| 280 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 15 | Output Voltage |
| C6P | DC connector Type C6P: Standard model, 6 pin connector |
| DC connector Type Other options availale by customer requested |
Meanwell GST280A15-C6P Specifications
| ORDER NO. | GST280A15-C6P | |
| OUTPUT | SAFETY MODEL NO. | GST280A15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 17A | |
| CURRENT RANGE | 0-17A | |
| RATED POWER (max) | 255W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 20ms / 230VAC 2000ms, 20ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 16ms / 230VAC 16ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 3A / 115VAC 1.5A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 95A / 115VAC 120A / 230VAC | |
| LEAKAGE CURRENT(max.) | 1.5mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~50℃ ) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J60950-1,AS/NZS 60950.1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: SHORT | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 1625.8K hrs min. Telcordia SR-332 (Bellcore) ; 181.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*95*46mm (L*W*H) | |
| PACKING | 1.25Kg; 12pcs/16Kg/1.09CUFT | |
Meanwell GST280A15-C6P Features
l 3 years warranty
l Global certificates
l Fully enclosed plastic case
l LED indicator for power on
l Universal AC input/Full range
l 3 pole AC inlet IEC320-C14, Class I power unit
l Built-in active PFC function
l No load power consumption<0.5W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Fanless design with -30~+70℃ working temperature
Meanwell GST280A15-C6P Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST280A15-C6P Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
