GST25U
11.02
Details

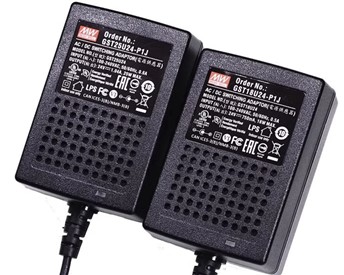

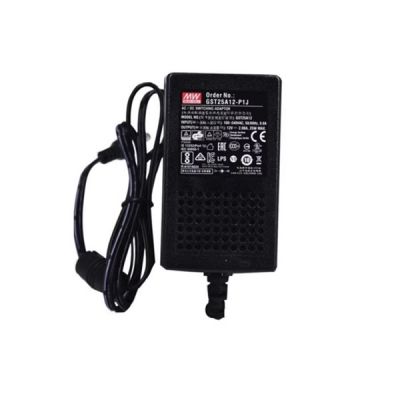

Meanwell GST25U Series is a 25W AC-DC Green Industrial Adaptor. The product features high reliability, wall-mounted style and single-output. It is a class II power unit (no FG), equipped with a 2- Pin standard USA AC power plug, adopting input range from 85VAC to 264VAC. At the same time, GST25U supplies different models with output voltages ranging between 5VDC and 48VDC. So that it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST25U is compliant with USA EISA 2007/DoE and Canada NRCan. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, which provides the double insulation effectively preventing electrical shock. GST25U is certified for the international safety regulations as well. Considering its high safety, high reliability and high quality, Meanwell GST25U Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GST25U Series Encoding
| GST | Series Name |
| 25 | Rated Wattage |
| U | US 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GST25U Series Model Specifications
| ORDER NO. | GST25U05-P1J | GST25U07-P1J | GST25U09-P1J | GST25U12-P1J | GST25U15-P1J | GST25U18-P1J | GST25U24-P1J | GST25U28-P1J | GST25U48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST25U05 | GST25U07 | GST25U09 | GST25U12 | GST25U15 | GST25U18 | GST25U24 | GST25U28 | GST25U48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 28V | 48V | |
| RATED CURRENT | 4.0A | 2.93A | 2.55A | 2.08A | 1.66A | 1.38A | 1.04A | 0.89A | 0.52A | |
| CURRENT RANGE | 0-4.0A | 0-2.93A | 0-2.55A | 0-2.08A | 0-1.66A | 0-1.38A | 0-1.04A | 0-0.89A | 0-0.52A | |
| RATED POWER | 20W | 22W | 23W | 25W | 25W | 25W | 25W | 25W | 25W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 81.50% | 84.50% | 85.00% | 86.50% | 87.00% | 87.00% | 88.00% | 88.00% | 89.00% | |
| AC CURRENT | 0.6A / 115VAC 0.35A / 230VAC | |||||||||
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |||||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |||||||||
| Protection type : Clamp by zener diode | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, BSMI CNS14336-1, EAC TP TC 004 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||
| Conducted emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) CNS13438, EAC TP TC 020 | Class B | ||||||||
| Radiated emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) CNS13438, EAC TP TC 020 | Class B | ||||||||
| Others | Life | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 79*54*33mm (L*W*H) | |||||||||
| PACKING | 198g; 60pcs/12.9Kg/1.15CUFT | |||||||||
Meanwell GST25U Series Features
l Global certificates
l Universal AC input/Full range
l 2 pole USA plug, Class II power unit
l No load power consumption< 0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE and NRCan
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass L PS
l -30℃~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GST25U Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST25U Series Mechanical Diagram
