GST25E18-P1J
14.42
Details

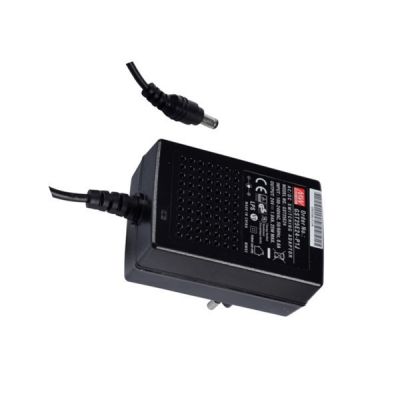

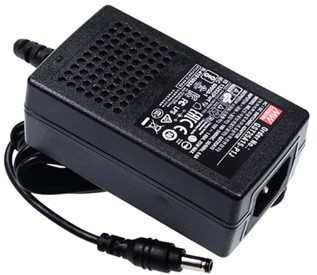

Meanwell GST25E18 is a 25W AC-DC Green Industrial Adaptor with 18V1.38A0-1.38A25W100mVp-p. The model features single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), equipped with a 2-Pin standard European AC power plug. Meanwhile, GST25E18 adopts the input range from 85VAC to 264VAC with output voltage 18VDC. So that it could meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST25E18 is compliant with EU ErP, and Code of Conduct (CoC) Version 5. The supreme feature permits the adaptor to save energy when it is either under operating mode or standby mode. Furthermore, the unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GST25E18 is also certified for the international safety regulations. Because of its high safety, high quality and high performance, Meanwell GST25E18 serves as an ideal power supply solution for various types of consumer electronic devices.
Meanwell GST25E18-P1J Encoding
| GST | Series Name |
| 25 | Rated Wattage |
| E | European 2 pin AC Plug |
| 18 | Output Voltage |
| P1J | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GST25E18-P1J Specifications
| ORDER NO. | GST25E18-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST25E18 |
| DC VOLTAGE | 18V | |
| RATED CURRENT | 1.38A | |
| CURRENT RANGE | 0-1.38A | |
| RATED POWER | 25W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT | 0.6A / 115VAC 0.35A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 202.5g; 60pcs/13.2Kg/1.15CUFT | |
Meanwell GST25E18-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l LED indicator for power on
l Fully enclosed plastic case
l ·Energy efficiency Level VI
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption< 0.075W
l Comply with EU ErP and CoC Version 5
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
Meanwell GST25E18-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST25E18-P1J Mechanical Diagram
