GST25E
14.27
Details

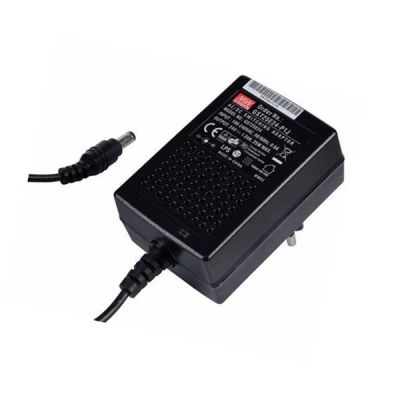

Meanwell GST25E Series is a 25W AC-DC Green Industrial Adaptor. The product features single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), equipped with a 2-Pin standard European AC power plug. At the same time, GST25E adopts the input range from 85VAC to 264VAC, and supplies different models with output voltages ranging between 5VDC and 48VDC. Therefore, it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST25E is compliant with EU ErP, and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Additionally, the entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GST25E is certified for the international safety regulations as well. Considering its high safety, high quality and high performance, Meanwell GST25E Series serves as an ideal power supply solution for various types of consumer electronic devices.
Meanwell GST25E Series Encoding
| GST | Series Name |
| 25 | Rated Wattage |
| E | European 2 pin AC Plug |
| 5 | Output Voltage |
| P1J | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GST25E Series Model Specifications
| ORDER NO. | GST25E05-P1J | GST25E07-P1J | GST25E09-P1J | GST25E12-P1J | GST25E15-P1J | GST25E18-P1J | GST25E24-P1J | GST25E28-P1J | GST25E48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST25E05 | GST25E07 | GST25E09 | GST25E12 | GST25E15 | GST25E18 | GST25E24 | GST25E28 | GST25E48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 28V | 48V | |
| RATED CURRENT | 4.0A | 2.93A | 2.55A | 2.08A | 1.66A | 1.38A | 1.04A | 0.89A | 0.52A | |
| CURRENT RANGE | 0-4.0A | 0-2.93A | 0-2.55A | 0-2.08A | 0-1.66A | 0-1.38A | 0-1.04A | 0-0.89A | 0-0.52A | |
| RATED POWER | 20W | 22W | 23W | 25W | 25W | 25W | 25W | 25W | 25W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 81.00% | 84.50% | 85.00% | 86.50% | 87.00% | 87.00% | 88.00% | 88.00% | 89.00% | |
| AC CURRENT | 0.6A / 115VAC 0.35A / 230VAC | |||||||||
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |||||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |||||||||
| Protection type : Clamp by zener diode | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||||
| Conducted emission | EN55032(CISPR32), EAC TP TC 020 | Class B | ||||||||
| Radiated emission | EN55032(CISPR32), EAC TP TC 020 | Class B | ||||||||
| Harmonic current | EN61000-3-2 | Class A | ||||||||
| Voltage flicker | EN61000-3-3 | ----- | ||||||||
| EMC IMMUNITY | Parameter | Standard | Test Level | |||||||
| ESD | EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||||||
| RF field susceptibility | EN61000-4-3 | Level 2, 3V/m | ||||||||
| EFT bursts | EN61000-4-4 | Level 2, 1KV | ||||||||
| Surge susceptibility | EN61000-4-6 | Level 3, 1KV/Line-Line | ||||||||
| Conducted susceptibility | EN61000-4-5 | Level 2, 3V | ||||||||
| Magnetic field immunity | EN61000-4-8 | Level 2, 3A/m | ||||||||
| Voltage dips , interruption | EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||||||
| Others | Life | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 79*54*33mm (L*W*H) | |||||||||
| PACKING | 202.5g; 60pcs/13.2Kg/1.15CUFT | |||||||||
Meanwell GST25E Series Features
l Global certificates
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption< 0.075W
l ·Energy efficiency Level VI
l Comply with EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l -30~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GST25E Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices

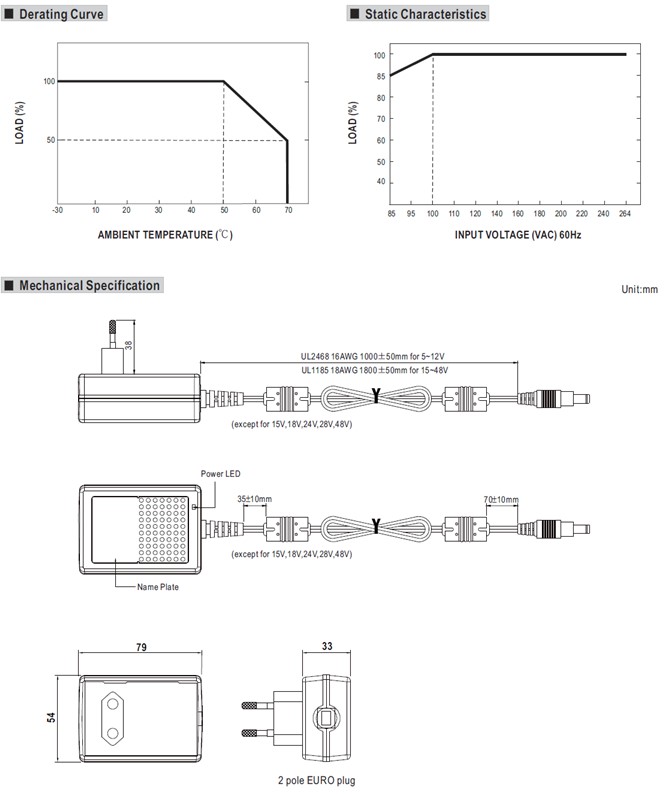

Meanwell GST25E Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
