GST220A20-R7B
17.37
Details

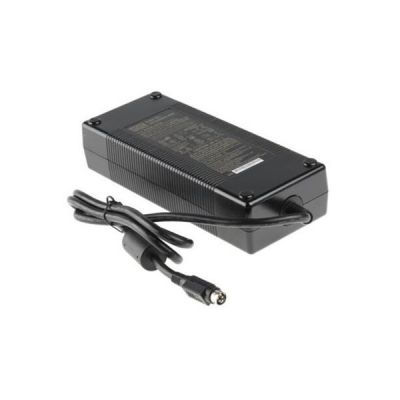

Meanwell GST220A20 is a highly reliable 220W green adaptor with 20V11A0-11A220W120mVp-p. It stands out with desktop style and single-output. The unit is a class I power unit (with FG) with standard IEC320-C14 AC inlet. GST220A20 adopts the input range from 85VAC to 264VAC with output voltages 20VDC. Therefore, this can satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 94.5% and extremely low no-load power consumption below 0.15W, Meanwell GST220A20 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. Furthermore, the supreme feature permits the adaptor to save the energy when it is either under operating mode or standby mode. Apart from them, the unit utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. In light of its good quality, high reliability and long lifespan, Meanwell GST220A20 serves as a high performance power supply solution for various applications.
Meanwell GST220A20-R7B Encoding
| GST | Series Name |
| 220 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 20 | Output Voltage |
| R7B | DC plug type R7B: Standard model, Power DIN 4Pin with lock type |
| DC plug type Other options available by customer requested |
Meanwell GST220A20-R7B Specifications
| ORDER NO. | GST220A20-R7B | |
| OUTPUT | SAFETY MODEL NO. | GST220A20 |
| DC VOLTAGE | 20V | |
| RATED CURRENT | 11A | |
| CURRENT RANGE | 0-11A | |
| RATED POWER (max) | 220W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 20ms / 230VAC 20ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.91 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT | 4A / 115VAC 2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 95A / 115VAC 120A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Hiccup mode at 10% load | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~50℃ ) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved (UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 for GST220A36-R7B) |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 2006.1K hrs min. Telcordia SR-332 (Bellcore) ; 209.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 210*85*46mm (L*W*H) | |
| PACKING | 1.1Kg; 12pcs/14.2Kg/0.81CUFT | |
Meanwell GST220A20-R7B Features
l 3 years warranty
l Global certificates
l Universal AC input/Full range
l Fully enclosed plastic case
l LED indicator for power on
l Built-in active PFC function
l Energy efficiency Level VI
l No load power consumption<0.15W
l 3 pole AC inlet lEC320-C14, Class I power unit
l Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Fanless design with -30℃~+70℃ working temperature
l Various DC plug quick adapter accessory available
Meanwell GST220A20-R7B Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST220A20-R7B Mechanical Diagram
